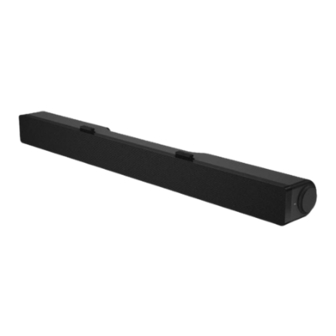

Dell USB Soundbar (AC511)
Owner's Manual

Advertisement

   Also See for Dell AC511

   Related Manuals for Dell AC511

   Summary of Contents for Dell AC511

  • Page 1

    Dell USB Soundbar (AC511) Owner’s Manual...

  • Page 2

    All statements or claims regarding the properties, capabilities, speeds or qualifications of the part referenced in this document are made by the supplier and not by Dell. Dell specifically disclaims knowledge of the accuracy, completeness or substantiation for any such statements.

  • Page 3: Table Of Contents

    Contents Setup System Requirements Contents of the Box Setting Up Your Dell USB Soundbar (AC511) Soundbar Features Troubleshooting Specifications Warranty Regulatory Certifications...

  • Page 4: Setup

    One USB port (for the USB cable) Microsoft Windows 8 or 7 Contents of the Box 1 - Dell USB Soundbar (AC511) 2 - USB Extension Cable 3 - Safety, Environmental, and Regulatory Information sheet 4 - Quick Setup Guide NOTE: The documents that shipped with the Soundbar may vary based on your region.

  • Page 5: Setting Up Your Dell Usb Soundbar (ac511)

    Setting Up Your Dell USB Soundbar (AC511) 1. After unpacking the unit, check the contents of the box. 2. Remove the slot covers at the bottom of the Dell monitor. Back to Contents Page...

  • Page 6

    3. Connect the Soundbar to the Dell Monitor. 4. Connect the USB cable to the computer. Back to Contents Page...

  • Page 7

    5. Direct control volume level of the computer. If your Soundbar is not working, see the Troubleshooting section. Back to Contents Page...

  • Page 8: Troubleshooting

    Troubleshooting COMMON WHAT YOU EXPERIENCE POSSIBLE SOLUTIONS SYMPTOMS Soundbar not Soundbar not detected or Once the USB cable is plugged into the USB power functioning properly. synchronized. source, observe if the white LED light on the right of the Soundbar lights up. 2.

  • Page 9

    COMMON WHAT YOU EXPERIENCE POSSIBLE SOLUTIONS SYMPTOMS No Sound Soundbar has power – power If playing through USB streaming, ensure that a LED indicator is on. music file is playing from the platform and the volume level is not 0%. 2.

  • Page 10

    COMMON WHAT YOU EXPERIENCE POSSIBLE SOLUTIONS SYMPTOMS Unbalanced sound Sound from only one side of Clear any obstructions between the Soundbar and output the Soundbar the user. 2. Confirm that the audio line-in plug is completely inserted into the jack of the Soundbar or audio source.

  • Page 11

    COMMON WHAT YOU EXPERIENCE POSSIBLE SOLUTIONS SYMPTOMS 8. Ensure the Soundbar is properly attached on the monitor. 9. Ensure no loose objects are touching the Soundbar. Headphone jack USB streaming or external Check if the platform music player or external connected, but no audio source is not playing audio source is playing music.

  • Page 12: Specifications

    Specifications General Model number AC511 Connection type Supported operating systems Microsoft Windows 8 Microsoft Windows 7 Electrical Operating voltage Audio Input USB Digital Audio Input Analog Audio Aux-in (3.5 mm jack) Output Power 2 x 1.25 W @ ≤10% THD...

  • Page 13

    Soundbar Features 1. Left T-Hook for Soundbar mounting 2. Right T-Hook for Soundbar mounting 3. USB cable 4. Volume knob and power LED 5. Aux-in and headphone jack Back to Contents Page...

  • Page 14: Warranty

    Dell may also provide an additional hardware warranty – full details of the Dell end user contract and warranty terms can be found by going to www.dell.com, selecting your country from the list at the bottom of the “home”...

  • Page 15: Regulatory

    Mexico NOM, Korea KCC, Serbia Kvalitet Certifications Microsoft WHQL Logo The Dell AC511 USB Soundbar has passed WHQL logo testing by Microsoft Windows Hardware Quality Labs. WHQL Logo is a certification scheme operated by Microsoft Windows Hardware Quality Labs. In this case it ensures that hardware is compatible with Microsoft Operating Systems.
