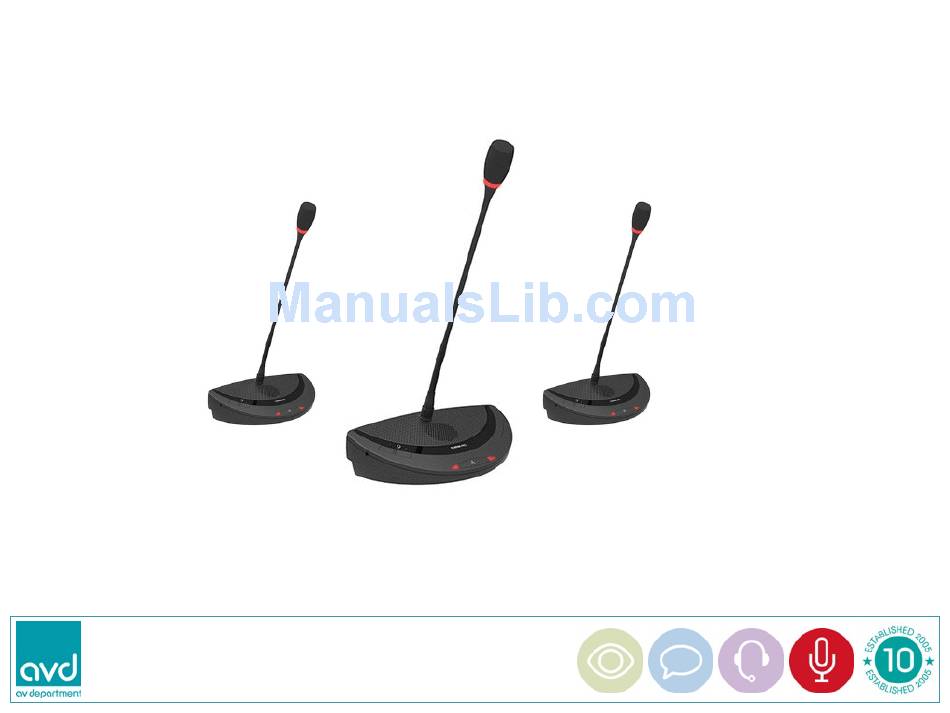

- Page 1 Quick Guide Guide to Confidea G3 Wireless Microphones AV Department Ltd www.avdept.co.uk 01383 825709...
-
Page 2: System Components
System components:- Access Point + PSU Delegate Microphone Bases 12 mic system case Chair’s Microphone Base Batteries Microphone stems Battery Chargers Netbook PC + PSU + Cat 5 cable 6 mic case 12 mic case Systems come in a wheeled combo box or individual cases for components Charge the batteries when you receive system! Do not transport system with batteries in charger! - Page 3 A word about battery management... The mics use a Lithium Ion battery (Like a laptop) Charge before use. Check battery capacity with status test button on the battery pack itself. 5 LEDs indicates a full charge 16 - 20 hours 4 LEDs indicates 12 - 16 hours 3 LEDs indicates 8 - 12 hours 2 LEDs indicates 4 - 8 hours...
- Page 4 Stage 1 Power the Access Point Plug in PSU and switch on Stage 2 Put together the microphone bases...
- Page 5 Stage 3 Place microphones on table Stage 4 Press the microphone button on each unit in sequence. The lights will flash as the microphone is registered onto the system via the access point.
- Page 6 Stage 5 To use the system press, and release, the microphone button. The lights will come on red when the microphone is live. Stage 6 The Chair’s microphone can cut off all microphones by pressing ‘A’ The default mode of operation is ‘Direct’ where microphones can be switch on and off at will.
- Page 7 Stage 7 Connect the Access Point to an external PA using the TRS Jack socket marked ‘AUX BALANCED’ The out put is a standard balanced line level analogue audio signal and can connect to a PA system, a Recording device, a Video / Telephone conference codec, or any other audio device.
- Page 8 Stage 8 Connect external audio to the Access Point via the TRS Jack socket marked ‘AUX BALANCED‘ This allows the speakers in the microphone bases to carry other audio sources or a full mix of audio.
- Page 9 Stage 9 Our default settings are as follows:- Transmission Frequency • Frequency selection ‘Auto 5.745 - 5.805 GHz’ Microphone Management • Max chair microphones ‘1’ • Max active microphones ‘4’ • Microphone mode ‘Direct’ • LS Volume ’18’ (speakers in microphone bases) •...
- Page 10 Stage 10 To make adjustments to levels and operational modes, connect the supplied Netbook to the Access Point using the ‘Cat 6 RJ45 network cable’ cable. No special software is required as the server is built into the Access Point which is viewed via a web browser.
- Page 11 Seated observers Boardroom table VC audio output connected to Access Point Aux in. Access Point Aux out connected to VC audio input. Distance Conferencing set to ‘On’ in ‘Conference Management’, ‘Aux’ tab on Access Point server control. This will allow the microphone speakers to carry all audio but remove incoming VC audio from the audio going back to the VC so eliminating feedback / echo.
- Page 12 Top table Cabaret tables...
- Page 13 Top table Classroom tables...
- Page 14 Boardroom table Seated observers...
- Page 15 Contact Details AV Department Limited Unit 83 East Way, Hillend Industrial Park, Dalgety Bay, Fife. KY11 9JF Tel. 01383 825709 Mob. 07905 437662 E. info@avdept.co.uk www.avdept.co.uk AV Department Ltd www.avdept.co.uk 01383 825709...
