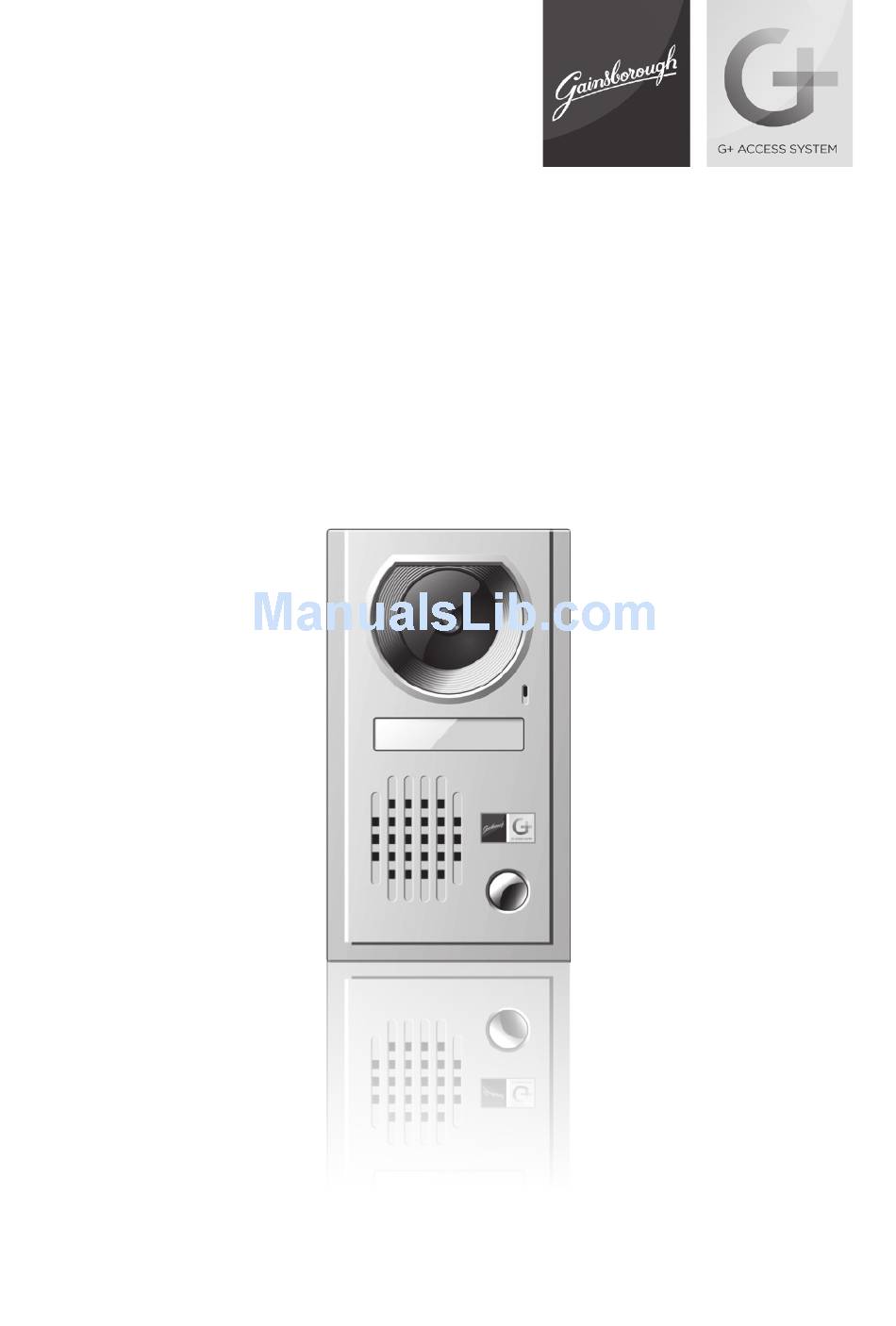

Page 1 G+ VIDEO ENTRY User Guide...
Page 2 WELCOME TO THE EASIER WAY TO ACCESS YOUR HOME...
Page 3: Table Of Contents
This guide will show you how to install your CONTENTS G+ Video Entry Box. SECTION 1 Overview ..........................2 G+ Camera G+ Home Port WhaT’S IN yOur G+ VIDEO ENTry BOx? G+ Internal Display Unit: Vista Model G+ Internal Display Unit: Horizon Model System Layout ........................8 Connections when controlling a G+ Lockset / G+ Smart Boxes Next/+...
Page 4: Overview
OVERVIEW, SYSTEM LAYOUT...
Page 5 Overview G+ hOmE POrT The G+ Video Entry allows: • Visitors to communicate with occupants of the building from the G+ Camera • The occupants of the building to monitor, via a G+ Internal Display Unit, who is at the G+ Camera or CCTV Cameras • The occupants to control access to the building via: –...
Page 6 G+ INTErNaL DISPLay uNIT: VISTa mODEL Front Back PWR1 S-AD1 S-AD3 S-VD3 S-VD1 LCK1 PWR2 S-AD4 S-AD2 S-VD4 S-VD2 LCK2 Answer Next/+ Passage Privacy Menu/Set Off/Save Monitor Intercom Room Room Room Room Indicator Light 12 Power ON/OFF 17 Input Connector Menu Item Change (G+ Internal Display Units 2,3,4) 13 Power DC 18V Input...
Page 7 G+ INTErNaL DISPLay uNIT: hOrIZON mODEL Back Front Monitor Menu/Set Next/+ Answer Intercom Room Room Passage Room Room Privacy Off/Save 10 Power ON/OFF 14 Input Connector Menu Item Change (G+ Internal Display Units 2,3,4) DC 18V Input Menu Navigation Room Call Input Connectors Input from for G+ Cameras...
Page 8: Connections When Controlling A G+ Lockset / G+ Smart Boxes
System Layout CONNECTIONS WhEN WIrING DIrECTLy TO aN ELECTrIC STrIKE G+ Camera 1 G+ Camera 2 CONNECTIONS WhEN CONTrOLLING a G+ LOCKSET / G+ Internal Display Unit 2 G+ SmarT BOxES G+ Internal Display Unit 1 G+ Camera 1 G+ Camera 2 Monitor Answer Intercom...
Page 9: Installation
INSTALLATION, SET UP, OPERATION...
Page 10: G+ Camera Installation
Installation G+ INTErNaL DISPLay uNIT INSTaLLaTION Step 1: The G+ Internal Display Unit should be installed at eye height as shown below. Step 2: Fix the monitor bracket to the wall as shown then run the cable through the bracket. G+ CamEra INSTaLLaTION Step 3: Install the G+ Internal Display Unit on the wall as shown.
Page 11: Wiring Instructions Guidelines
Wiring Instructions Guidelines CONTrOLLING aN ELECTrIC STrIKE FrOm ThE G+ INTErNaL DISPLay uNIT: rECOmmENDED mEThOD PWR1 LCK1 TaKE CarE - ELECTrICITy KILLS! S-AD3 PWR2 S-AD1 S-VD3 S-VD1 Switches, power outlets and other fixed wired products must be installed LCK2 by a licensed electrical contractor or similarly qualified person. S-AD2 S-AD4 S-VD4...
Page 12: Wiring Diagram For Multiple G+ Internal Display Units
CONTrOLLING aN ELECTrIC STrIKE FrOm WIrING DIaGram FOr muLTIPLE ThE G+ CamEra: aLTErNaTIVE mEThOD G+ INTErNaL DISPLay uNITS WarNING: This method of wiring the Electric Strike is not secure. removing the G+ Camera allows access to the wires that activate the PWR1 Electric Strike.
Page 13: Wiring Using Cat5E Cable
WIrING uSING CaT5E CaBLE WIrING uSING CaT5E CaBLE (CONTINuED) G+ Internal G+ Internal G+ Internal G+ Internal Display Unit 1 Display Unit 2 Display Unit 1 Display Unit 2 G+ Camera 1 G+ Camera 1 Max 80 metres * Cable 1a 20 metres 20 metres Cable 1b...
Page 14: Set Up
Set Up muLTIPLE G+ INTErNaL DISPLay uNIT SET uP Each G+ Internal Display Unit must be allocated a different number, from Room 1 to Room 4, in order to be able to call each other. The main unit, which is connected to the Camera(s), must be set to Room 1.
Page 15: How To Answer A Call From G+ Internal Display Unit And Unlock/Lock The Door
Operation VOLumE SETTINGS The Chime, Talk, and CCTV Volumes can be set to High, Low or Mute. VOLUME SETTINGS CHIME VOLUME HIGH TALK VOLUME HIGH hOW TO aNSWEr a CaLL FrOm ThE G+ INTErNaL CCTV VOLUME HIGH DISPLay uNIT aND uNLOCK / LOCK ThE DOOr All G+ Internal Display Units will chime when a visitor calls from a G+ Camera, unless “Do not Disturb”...
Page 16: How To Transfer A Visitor's Call Between G+ Display Units
hOW TO TraNSFEr a VISITOr’S CaLL BETWEEN hOW TO mONITOr ThE CamEraS G+ INTErNaL DISPLay uNITS The Cameras are accessed by pressing the button. 1 Direct Transfer: Pressing the button for the first time will display the image from the • After answering the call, press the button again and then press 1st G+ Camera.
Page 17: How To Make Calls Between G+ Internal Display Units
hOW TO maKE CaLLS BETWEEN G+ INTErNaL DISPLay uNITS hOW TO SET aN G+ INTErNaL DISPLay uNIT TO “DO NOT DISTurB” There are two ways to make calls between G+ Internal Display Units: “Do not Disturb” mode stops the G+ Internal Display Unit from chiming 1 To call to all G+ Internal Display Units: if the G+ Cameras are activated or calls are made from another G+ Internal Display Unit.
Page 18: General Specifications
GENERAL SPECIFICATIONS...
Page 19 -10°C to 40°C Size (mm) 260 W x 195 H x 35 D FrEquENTLy aSKED quESTIONS G+ INTErNaL DISPLay uNIT – hOrIZON mODEL Refer to the Gainsborough website for frequently asked questions. www.gainsboroughhardware.com.au Display Screen 7 inch TFT LCD Resolution >420 TV lines...
Page 20 The availability of products set out in this document is not guaranteed and Gainsborough Hardware reserves the right to alter, amend or delete any part of this document without prior notice. This disclaimer is subject to any contrary legislative provisions.
Page 21 Gainsborough Hardware Industries Limited Hotline 13 14 18 Head Office 31–33 Alfred Street Blackburn, VIC 3130 PO Box 330, Blackburn VIC Telephone 03 9877 1555 Admin & Export Fax +61 (0)3 9894 1599 Email sales@gainsboroughhardware.com.au www.gainsboroughhardware.com.au Suite 1B, 433 Logan Rd 12 Juna Drv 31–33 Alfred St...
