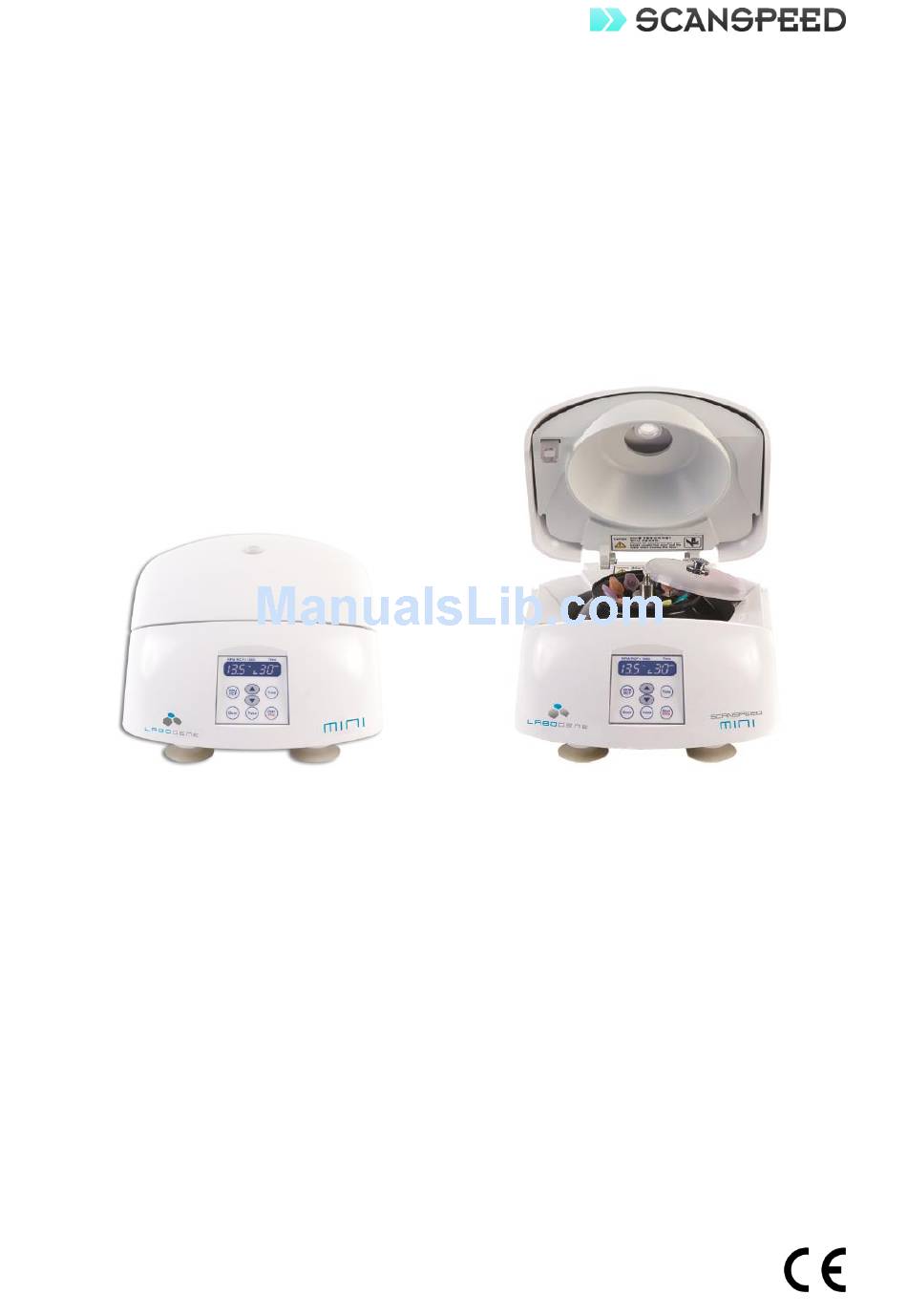

- Page 1 INSTRUCTION MANUAL PERSONAL MICRO CENTRIFUGE ScanSpeed Model Mini Revision : 01 Date : 2013.03.05 Cat. No. : 9.900.900.730...
- Page 2 Model Mini Centrifuge Symbols used in this manual Note Used to direct attention to a special item. Warning Used in case of danger of a serious accident or lethal injury. LaboGene ApS Industrivej 6-8 Vassingerød DK-3540 Lynge Denmark Phone No.
-
Page 3: Table Of Contents
Model Mini Centrifuge Table of contents Precautions ..........................4 Introduction ........................... 4 Product features ........................5 Specifications ........................5 Package contents ........................6 Physical description ......................6 Front control panel description ................... 7 Installation ..........................7 Operation ..........................8 Maintenance and care ......................9 10.1... -
Page 4: Precautions
ALWAYS use proven disinfection procedures when centrifuging bio-hazardous materials. Introduction The Mini centrifuge is a bench top high-speed, multi-purpose micro-centrifuge designed to be used in medical, industrial, and scientific applications. Its user-friendly control features and compact, space-saving design delivers maximum solid performance for your daily centrifugation needs. The Mini is supplied with easily interchangeable rotors to accommodate micro-tubes and PCR strips. -
Page 5: Product Features
Supplied with autoclavable angle rotor with optional PCR rotor. Schematic diagram of mini’s air flow design. The patented, unique internal design circulates an efficient airflow inside the instrument, reduces spinning frictions, whilst minimizing both the motor temperature and the noise levels. -
Page 6: Package Contents
Model Mini Centrifuge Package contents Main Body, 1 unit Rotor: Autoclavable fixed angle rotor with 12 tube holes for 1.5 / 2.0 mL tubes, 1 unit Rotor Lid: Autoclavable plastic rotor lid, 1 unit Adapter: Adapters for 0.2 mL PCR tubes, 12 units... -
Page 7: Front Control Panel Description
Model Mini Centrifuge Front control panel description Display LCD control panel: Displays set values and actual operating conditions Speed/Force (RPM/RCF): Displays rotor speed/force in RPM/RCF x 1000 Sign”blinks” whilst spinning. Centrifugation: Status of door: Indicates door status as for open or for closed. -
Page 8: Operation
Model Mini Centrifuge Carefully place the rotor onto the motor shaft. Hold the rotor with one hand and securely tighten the rotor nut to the shaft by turning clockwise. Note Turn the rotor nut counter clockwise to release the rotor from the shaft. -
Page 9: Maintenance And Care
Model Mini Centrifuge Note The parameters can be adjusted during the centrifugation. Close the centrifuge door by press down firmly until the latch handle is fully retracted. Note The instrument will not operate if the door is not properly latched. -
Page 10: Transport
Model Mini Centrifuge • Abrasions or scratches should not be made on the surfaces, as corrosion may result. 10.3 Transport • Avoid impacts during transportation and do not drop the unit as damage will result. • Always remove the rotor and pack the inside of the chamber with protective packaging before transporting the instrument. -
Page 11: Troubleshooting
Model Mini Centrifuge Troubleshooting In the event of a malfunction, the error message with code number appears to indicate the probable causes and the instrument will be in the stop mode. If other malfunctions without error code indication occur, turn off the power immediately, identify the causes and follow the corrective actions as recommended below. - Page 12 Model Mini Centrifuge Error Problem Possible Reason Code • Temporary system error RPM Sensor Error: Corrective Action Turn the power switch off and back on to reset. Failure to reach to 200 rpm If problem cannot be resolved, it is possible that within 2 sec.
- Page 13 Model Mini Centrifuge Error Problem Possible Reason Code • Temporary system error Overspeed: Corrective Action Turn the power switch off and back on to reset. Detected actual speed value in If problem cannot be resolved, it is possible that rpm is 1,000 rpm higher than set •...
-
Page 14: Door Lock Failure (Emergency Door Open Function)
Max RCF Cat No. Product Capacity (rpm) (x g) GZ-1312 mini, Microcentrifuge (220V, 50/60Hz) 13,500 12,300 includes Fixed Angle Rotor GRF-m2.0-12 & 12 adaptors for 0.2 mL Rotors for mini GRF-m2.0- Fixed Angle Rotor, GRF-m2.0-12 with lid 12 x 1.5/2.0 mL... -
Page 15: Spare Parts
Model Mini Centrifuge Spare parts Cat. No. LaboGene Description Q'ty Cat. No. LaboGene Description Q'ty 7.601.000.001 Door ass'y 7.601.000.018 Case (BOTTOM) 7.601.000.002 Center window 7.601.000.019 Bolt Support 7.601.000.003 Door (Top) 7.601.000.020 Absorber Space 4ea/set 7.601.000.004 Striker 7.601.000.021 Absorber 4ea/set 7.601.000.005 Door (Bottom) 7.601.000.022... -
Page 16: Warranty
Model Mini Centrifuge Warranty Mini has been subjected to thorough testing and quality control. In the unlikely event of a manufacturing fault, our one year warranty (from the date of delivery) covers the instrument, accessories and individual components. This warranty becomes invalid in the case of incorrect operation, use of nonstandard spare parts or accessories and unauthorized modification of the rotor or instrument. - Page 17 Declaration of conformity We declare under our responsibility, that the following product: Model: ScanSpeed Mini Micro Centrifuge to which this declaration relates is in conformity with the following standard(s), directives or other normative document(s): In compliance with: EN 61010-1 - Safety requirements for electrical equipment for measurement, control and...
