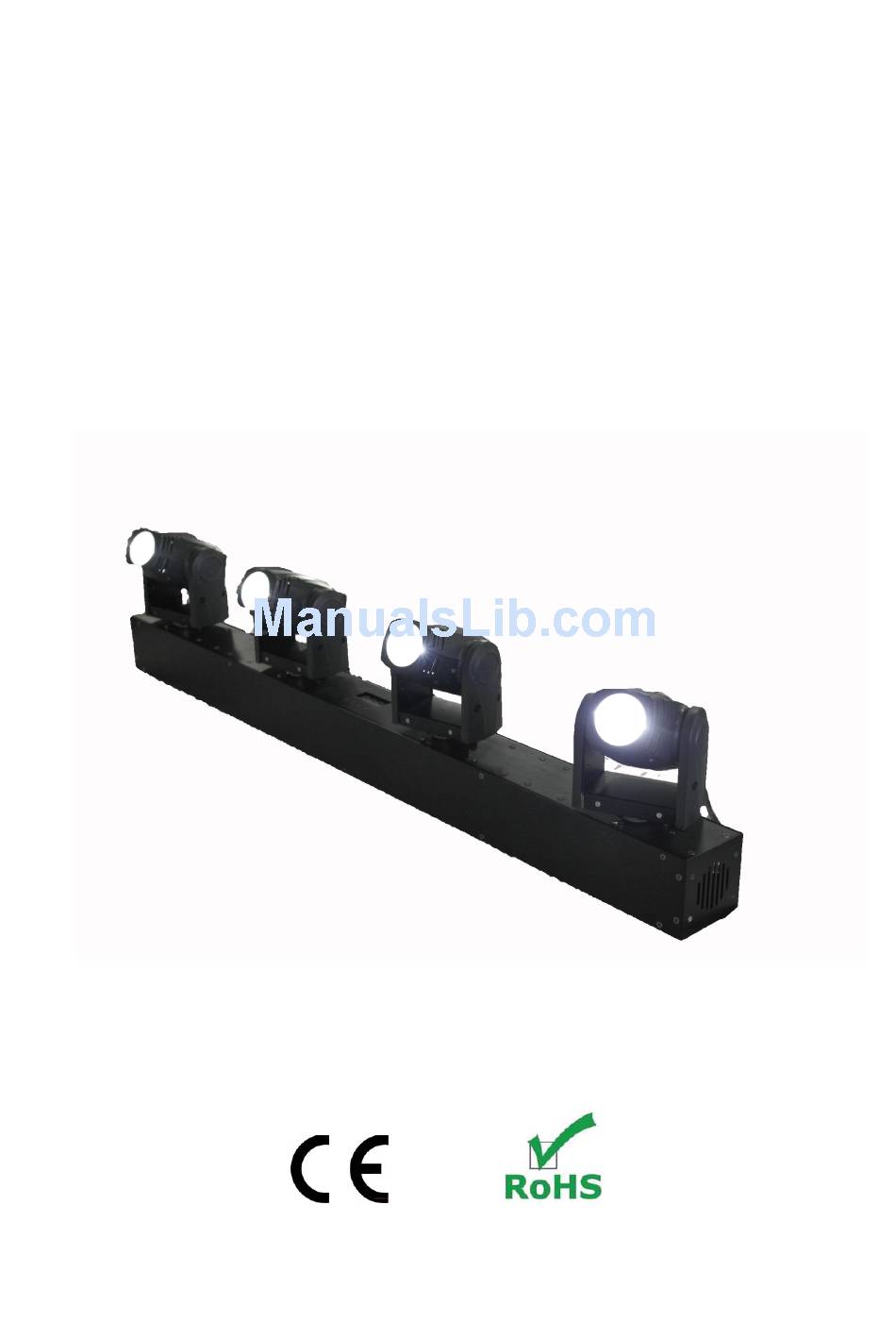

- Page 1 USER MANUAL RGBW 4in1 LED Moving Head Beam Please Read Over This Manual Before Operating The Light Fixture...
-
Page 2: Table Of Contents
Contents 1. Foreword…………………………………………………3 2. Security indication……………………………………3 3. Operating provisions………………………………..4 4. Technical specification……………………………...5 5. Controller choose function…………………………6 6. LCD Panel indication………………………………….6 7. Using construction ……………….…………………..7 8. Connect multiple fixtures…………………………...8 9. Cleaning and Maintenance…………………………..8 10. Appendix……………………………………………….…9... -
Page 3: Foreword
Foreword Thanks for you using The LED moving head light of our Guangzhou Nebula Professional Stage Equipments Co., Ltd. Please read this product manual carefully before using. Anyone undertake the installation, operation and maintenance of light fixture, should be as follow: ------- Required professional qualification &... -
Page 4: Operating Provisions
check the power cord whether distorted or damaged by sharper. Do not let power cord touch other cord directly, and be careful when operate power cord & all joints etc! Only can hold its joints when move power cord. Hold joints then draw carefully from jack when need to cut power, and do not draw cord directly. -
Page 5: Technical Specification
Operate light in other way which different to this manual declaration, light may suffer damage, and cause its quality invalidation. Even this may induce short circuit, burning or shut down etc. Technical specification Feature Lamp:10w(RGBW 4in1) 4pcs led high brightness lamp Lifetime:6000 hours Voltage:AC 90-220V, 50-60HZ Rated power:80 watt Channel:16/45 CH... -
Page 6: Controller Choose Function
Dimension：80*9*25 cm Controller choose function 16channels 16channel 4 head beam bar CH16 mode channel list channe function channel value description fixture stop closing lighting and stop macro function total dimmer 1-255 when 0,light brightness ratio control,0%~100% 51-100 Light 1 choose light 101-150 Light 2 151-200... - Page 7 CH13 X fine 0-255 CH14 Y fine 0-255 CH15 dimmer speed 0-255 from slow to fast 0-249 no effect CH16 reset 250-255 stay five second all motors reset 45channels 4 head beam bar CH45 mode channel list channel function channel value description 0-255 0-255...
- Page 8 CH26 0-255 CH27 XY4 speed 0-255 XY speed, from fast to slow CH28 strobe 4 4-255 strobe，from slow to fast CH29 0-255 CH30 0-255 CH31 0-255 CH32 0-255 CH33 X1 fine 0-255 CH34 Y1 fine 0-255 CH35 X2 fine 0-255 CH36 Y2 fine 0-255...
-
Page 9: Using Construction
Using construction first Menu second Menu value remark d.001(DMX address) 1-512 P.000(Pan) 0-255 T.000(Tilt) 0-255 R.000(Red) 0-255 MANU G.000(Green) 0-255 overall B.000(Blue) 0-255 W.000(White) 0-255 S.000(Strobe) 0-255 built-in program auto，0-99 At.50 0-99 speed fast to slow AUTO random auto，0-99 speed fast rd.50 0-99 to slow... -
Page 10: Connect Multiple Fixtures
detected magnetism， "00"means not detected magnetism t4.00 99.-99 Connect multiple fixtures Note: Avoid twisted cables, especial the signal wire and power wire, either close to each other. Otherwise, the projector may not work normally Connect multiple fixtures with 3 round pin/XLR plug of shielded signal, or directly connect to DMX512 controller. -
Page 11: Cleaning And Maintenance
Cleaning and Maintenance Note should cut off the power before to clean and maintaining of the projector. Do not use the projector if the lens is damaged, such as crack or scratch and so on, make sure to keep its normal functions Users should keep taking a full testing for the light security &... -
Page 12: Appendix
Appendix Technical specification Weight and size Length---------------------------------------------------------------------------800mm Width----------------------------------------------------------------------------200mm Height---------------------------------------------------------------------------250mm Weight------------------------------------------------------------------------------11.5kg Power Voltage------------------------------------------------------------100V/240V 50/60HZ Power Consumption---------------------------------------------------------------80W Lamp LED------------------------------------------------------------------------10W RGBW 4in1 led Color temperature----------------------------------------------------------------6500K Illumination Degree -------------------------------------------------------------------------------8° Range Pan-----------------------------------------------------------------------------------540° Tilt------------------------------------------------------------------------------------210° Heat Max temperature--------------------------------------------------------------------40°C Control and program Data input-------------------------------------------------------------3-pin XLR (anode) Data output----------------------------------------------------------3-pin XLR (cathode)
