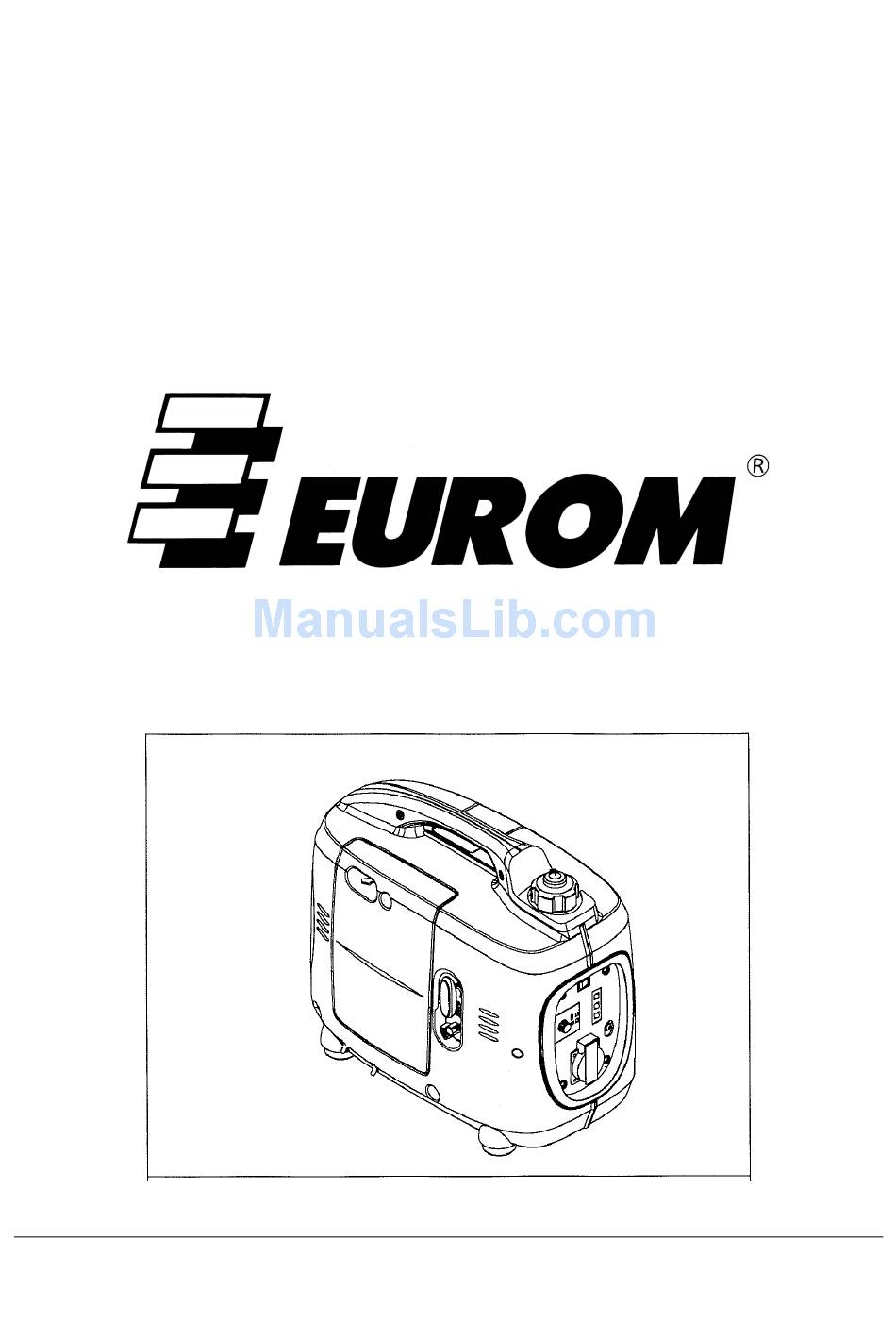

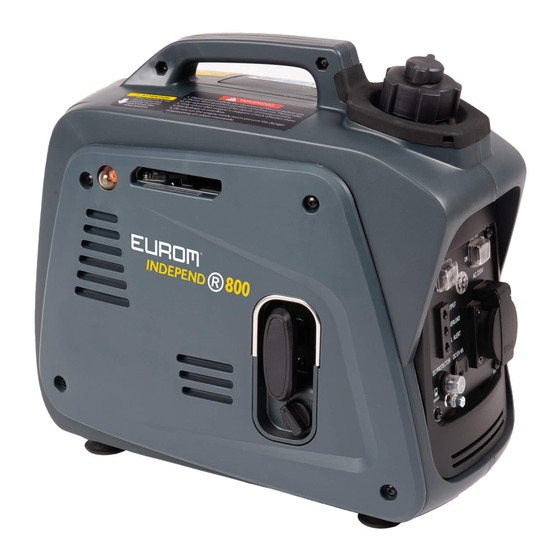

- Page 1 User manual B950I, B1000i, B2000i, B3000i...
- Page 2 • Always read the user manual thoroughly before using the generator. • Never use the generator in a closed room/area. Exhaust may cause suffocation. • The exhaust pipe becomes very hot during operation. Do not touch the exhaust pipe after use. •...
-
Page 3: Table Of Contents
1. Contents 1. Contents............................21 2. Identification of components .......................22 3. Automatic current control (SMART) .....................22 4. Before start - Oil ..........................23 4.1. Before start - gasoline .........................24 4.2. Before start - air filter........................24 5. Start ..............................25 6. Operation of the generator .........................27 6.1. -
Page 4: Identification Of Components
2. Identification of components Fuel cap cent lever Choker Smart-Throttle switch Over load indicator Fuel cap Smart contact Cover receptable Control panel Starter Engine switch Cover for Ground terminal fuse DC circuit Muffler protector Oil indicator 3. Automatic current control (SMART) The engine speed is automatically adjusted, when the current is disconnected. -
Page 5: Before Start - Oil
4. Before start - Oil NOTE Always inspect the generator on a horizontal surface with a turned-off engine. The in-built alarm system will automatically stop the engine before the oil level drops under the approved level. In order to avoid unpredicted disconnection you shall check the oil level regularly. Using the generator with too little oil can cause severe damages to the wear parts of the engine. -
Page 6: Before Start - Gasoline
4.1. Before start - gasoline Use regular unleaded 95 octane gasoline. Avoid getting dust, dirt or water in the tank. After filling, fasten the tank cover securely. Only fill fuel to the indicated marking (see figure below). Fuel cap Fill untill here... -
Page 7: Start
5. Start WARNING Disconnect all machines connected to the generator before starting. WARNING Before use the generator must be grounded. Connect the ground take off on the generator with a frame connection e.g. an earth auger. Turn the upper part of the fuel cover clockwise to the ”ON” position. Gasoline cover Turn the ignition switch to the ”ON”... - Page 8 Place the choke of the machine in open position. To the right. Choke Pull slowly in the starting cord of the engine until you feel resistance. Then you pull one heavy long draw. Never let the starting cord run back by itself, always follow it with your hand. Starting cord Close the choke by placing it in the right position while the engine is warming up.
-
Page 9: Operation Of The Generator
6. Operation of the generator WARNING In order to prevent electric shock, the generator must be grounded. This is done by connecting the frame take off of the generator with a frame connections e.g. an earth auger. NOTE Do not exceed the voltage limit stated for a regular plug. Do not connect the generator to a closed system in e.g. -
Page 10: Indicators
6.2. Indicators The running indicator will be lit during regular running (green light). If the generator is overloaded the green light will turn itself off and the red indicator for overload will be lit. At the same time the current for the apparatus will be disconnected. In this case you must stop the generator and inspect it for the source of the overload. - Page 11 NOTE 12 V take-off on the generator must only be used for charging 12 V automobile batteries. By use of direct current take off the automatic current control must be turned off. WARNING In order to prevent the possibility of a spark close to the battery, you must first connect the charging cable to the generator and thereafter to the battery.
-
Page 12: Oil Warning
6.4 Oil warning There is an inbuilt oil alarm on the generator. This means that if the generator is lacking oil during operation the generator will stop automatically. At the same time the oil lamp in the panel will be lit. Oil alarm 6.5 Stop NOTE... -
Page 13: Maintenance
7. Maintenance NOTE The purpose of the maintenance is to keep the generator in its best possible shape. Repairs should always be carried out by an authorized Texas Power Line dealer. Every use 1. month every 3. every 6. every year month. -
Page 14: Air Filter
PROCEDURE Unfasten the screws that fasten the plate on the back side of the generator and remove the plate. Remove the oil stick. Pour the used oil into a can. Fill with the recommended oil and check the oil level. Put the plate back in its place and fasten the screws safely. -
Page 15: Spark Plug
7.3 Spark plug Recommended spark plugs: NGK CR5HSB / DENSO U16FSR-UB PROCEDURE Remove the cover at the top of the generator. Remove the sparking plug cover. Remove dirt around the sparking plug. Use a sparking plug wrench to unfasten the sparking plug. Check the sparking plug, replace if the isolation has cracked. - Page 16 PROCEDURE - GASOLINE Drain all gasoline from the tank into a container. Turn the ignition switch of the generator to the ON position. Loosen the delivery screw of the carburettor and drain all the fuel of the carburettor into a tank. Remove the sparking plug cover and pull the starting cable 3-4 times.
-
Page 17: Specifications
9. Specifications Dimension and weight B1000i B2000i L x B x H 450 x 240 x 380 mm 549x291x405 mm Dry weight 14 kg 22 kg Engine Model KG55 KG105 Engine 4-stroke, OHV Stroke volume (drilling x stroke 55 cc (43,5 x 36,0mm) 64 cc (56,0 x 40,0 mm) length) Compression... -
Page 18: Trouble Shooting
10. Trouble shooting Engine does not start: Enough fuel in tank Fill fuel into tank Turn on the generator. Is the generator turned on Fill with oil Enough oil Replace spark plug Spark from spark plug Still no spark ? Contact your dealer Page 36... - Page 19 Connected tool/apparatus does not work. ”output” lamp lights ”alarm” indicator lights Contact your dealer Check that tool/appatus works Replace tool/apparatus. No power from DC outlet Turn it on Is automatic safety on Contact your dealer Page 37...
