2 - 40 FRONT - LINK/COIL
STABILIZER BAR (Continued)
(5) Remove the links from the axle brackets with
Puller C-3894-A (Fig. 25).
(6) Remove the stabilizer bar clamps from the
frame rails and remove the stabilizer bar.

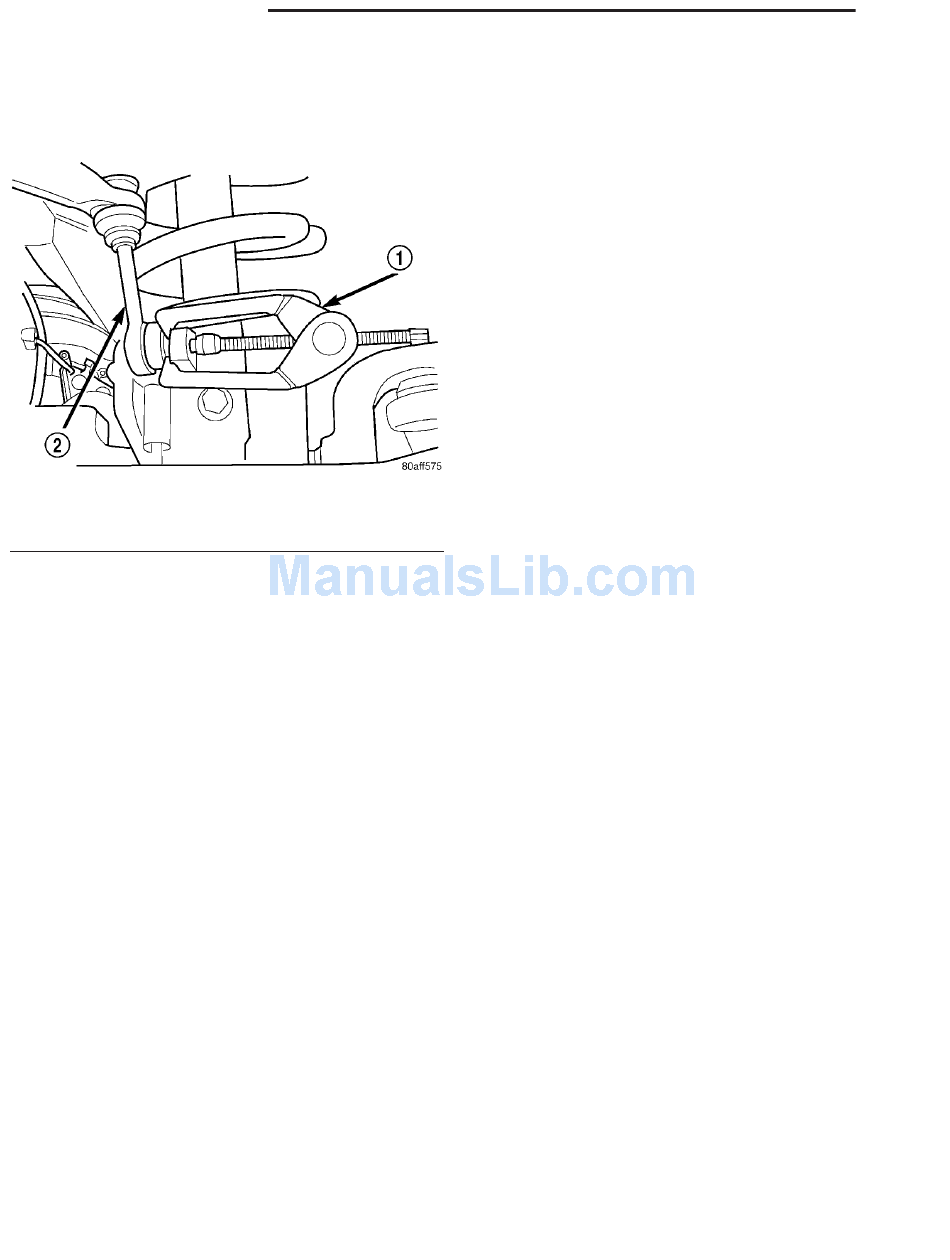

Fig. 25 Stabilizer Link
1 - PULLER
2 - LINK
INSTALLATION
(1) Position the stabilizer bar on the frame rail
and install the clamps and bolts. Ensure the bar is
centered with equal spacing on both sides.
(2) Tighten the clamp bolts to 61 N·m (45 ft. lbs.).
(3) Install links to the axle bracket and tighten
nut to 71 N·m (52 ft. lbs.).
(4) Install links, retainers, grommets and nuts to
the stabilizer bar. Hold the link shaft with a wrench
and tighten the nuts to 37 N·m (27 ft. lbs.).
(5) Remove the supports and lower the vehicle.
