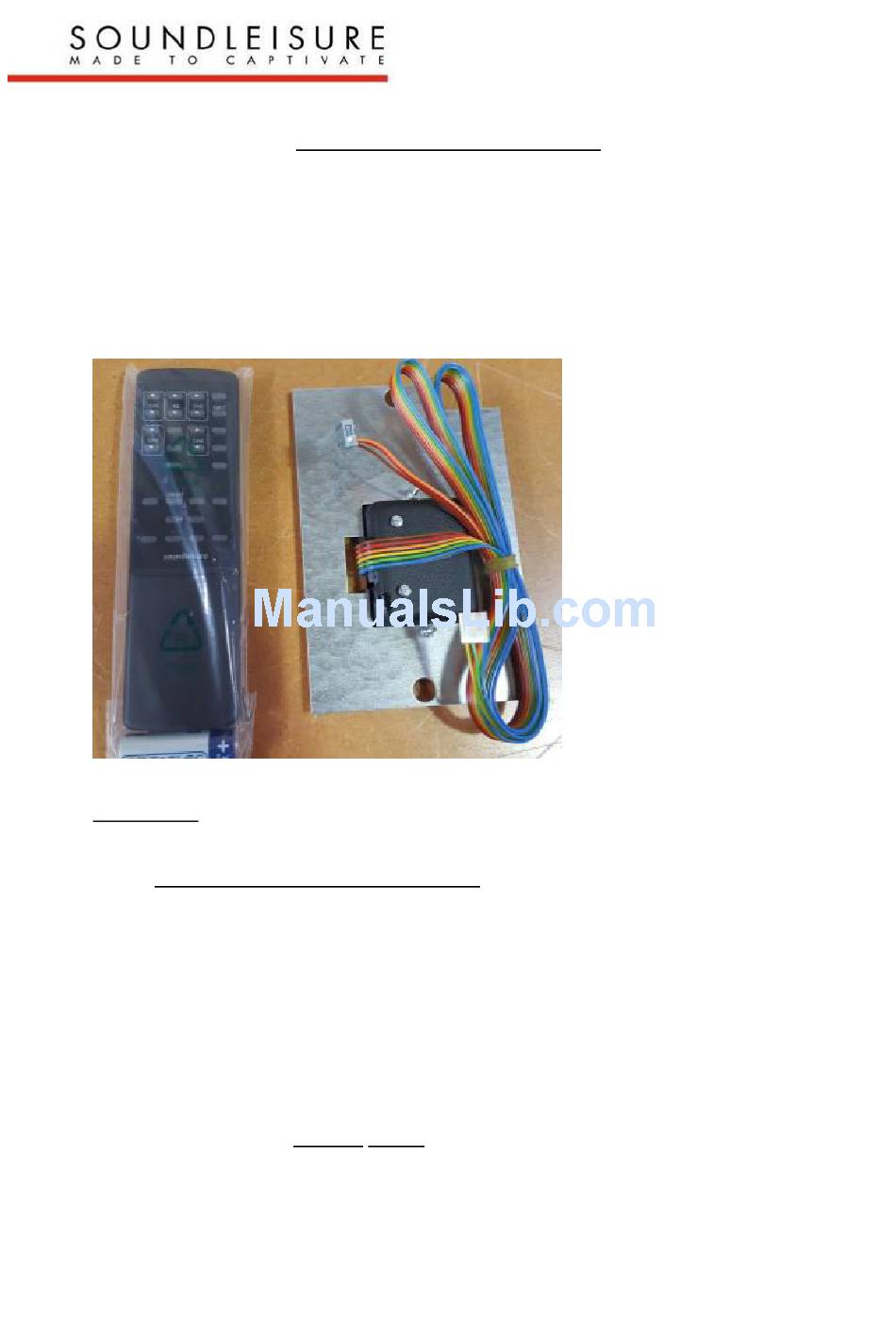

Venue Hub - Digital I/R Kit Instructions
Kit Contents:
1 X IR Receiver & Mount Plate
1 X Data Harness
1 X Remote Control with 2 X AA Batteries
IMPORTANT: Before installing the IR kit please ensure that your SLE 1026 board is running
software version v6.0 or higher and the amplifier is running on software version v4.8 or
higher. The IR kit will not work on older software
To check software version on the amplifier switch the machine on and look at the LCD
display. It will display the software version on boot up.
To check software version on the SLE 1026 board look for a white label near the EEPROM.
If you cannot see the version on any labels the SLE 1026 will require updating.
When installing the IR kit you must remove your RVC cables from the amplifier (RVC1 &
RVC 2). If the RVC cables from the SLE 1026 are left connected the amp may ignore
commands from the IR remote.
Venue Hub – Digital I/R Instructions
QMS Document
Page 1 of 7
Version: 3.0
16/08/2016
Advertisement
Table of Contents
Summary of Contents for Sound Leisure venue
- Page 1 Venue Hub - Digital I/R Kit Instructions Kit Contents: 1 X IR Receiver & Mount Plate 1 X Data Harness 1 X Remote Control with 2 X AA Batteries IMPORTANT: Before installing the IR kit please ensure that your SLE 1026 board is running software version v6.0 or higher and the amplifier is running on software version v4.8 or...
- Page 2 1. Open the door and remove the metal bracket at the bottom of the door. It is held in place by two screws. 2. Remove the black rectangular piece of vinyl from the door or the IR signal will not pass through Venue Hub – Digital I/R Instructions QMS Document Page 2 of 7 Version: 3.0...
- Page 3 4. Attach the metal bracket you removed first on top of the IR mounting plate as this pushes against the door switch Put both screws back in to secure it all in place. Venue Hub – Digital I/R Instructions QMS Document Page 3 of 7 Version: 3.0...
- Page 4 5. Route the ribbon cable to the SLE1026 and Amplifier using the clips on the door 6. Connect the remaining 3 wire connector (Blue, Green and Yellow) to the 4-pin header on the SLE 1026 (Con 13) as below Venue Hub – Digital I/R Instructions QMS Document Page 4 of 7 Version: 3.0...
- Page 5 7. Plug the other connector into the Comms. port on the amplifier 8. Remove the 2 RVC connectors from the amplifier Venue Hub – Digital I/R Instructions QMS Document Page 5 of 7 Version: 3.0 16/08/2016...
- Page 6 Make sure that the RVC cables to the Amplifier are removed. You should then be able to adjust volume using IR remote. Usually it is old software on the SLE 1026 or Amp. Venue Hub – Digital I/R Instructions QMS Document Page 6 of 7 Version: 3.0...
- Page 7 If these steps are correct reboot the machine and let the machine boot back up with the RVCs turned off. On reboot the amp should detect the IR board. For further technical assistance please contact Sound Leisure Digitech department 0845 230 1775 digitech@soundleisure.com...
