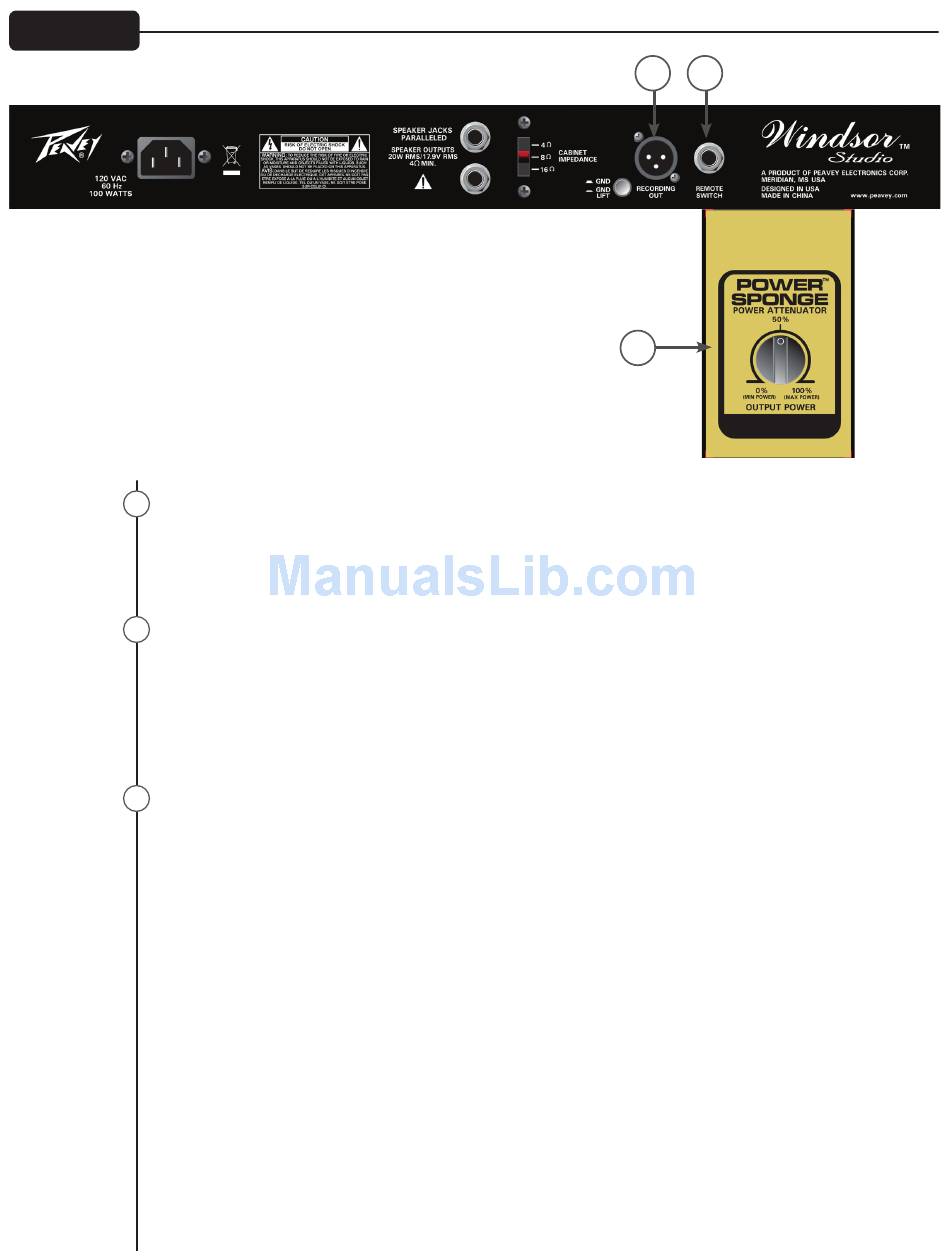

Rear Panel
Recording Output -
17
This balanced XLR jack is used to route a microphone-simulated signal (tapped directly from whatever
speaker is being used) from the amplifier to an external recording device or PA. It utilizes a 100%
passive circuit to avoid clipping, noise, and other shortcomings of active circuitry.
Power Sponge™ -
18
This unique control allows the user to adjust the nominal output power level of the amplifier. It can
be used in conjunction with the PREAMP VOLUME (3) and MASTER VOLUME (8) to attain infinite
combinations of power amp and preamp distortion at ANY volume level. This control DOES NOT affect
the level of the RECORDING OUTPUT (17) and provides an appropriate load to the amplifier at all
settings.
Remote Switch -
19
Provided for connection of the optional footswitch (#00592720). The footswitch is used to defeat the
EFFECTS LOOP (6/7) and the BOOST (5). LEDs on the footswitch illuminate when the respective function
is active. When using the footswitch, always insert the plug fully (second click) into the REMOTE
SWITCH jack to ensure proper operation.
17
18
11
19
