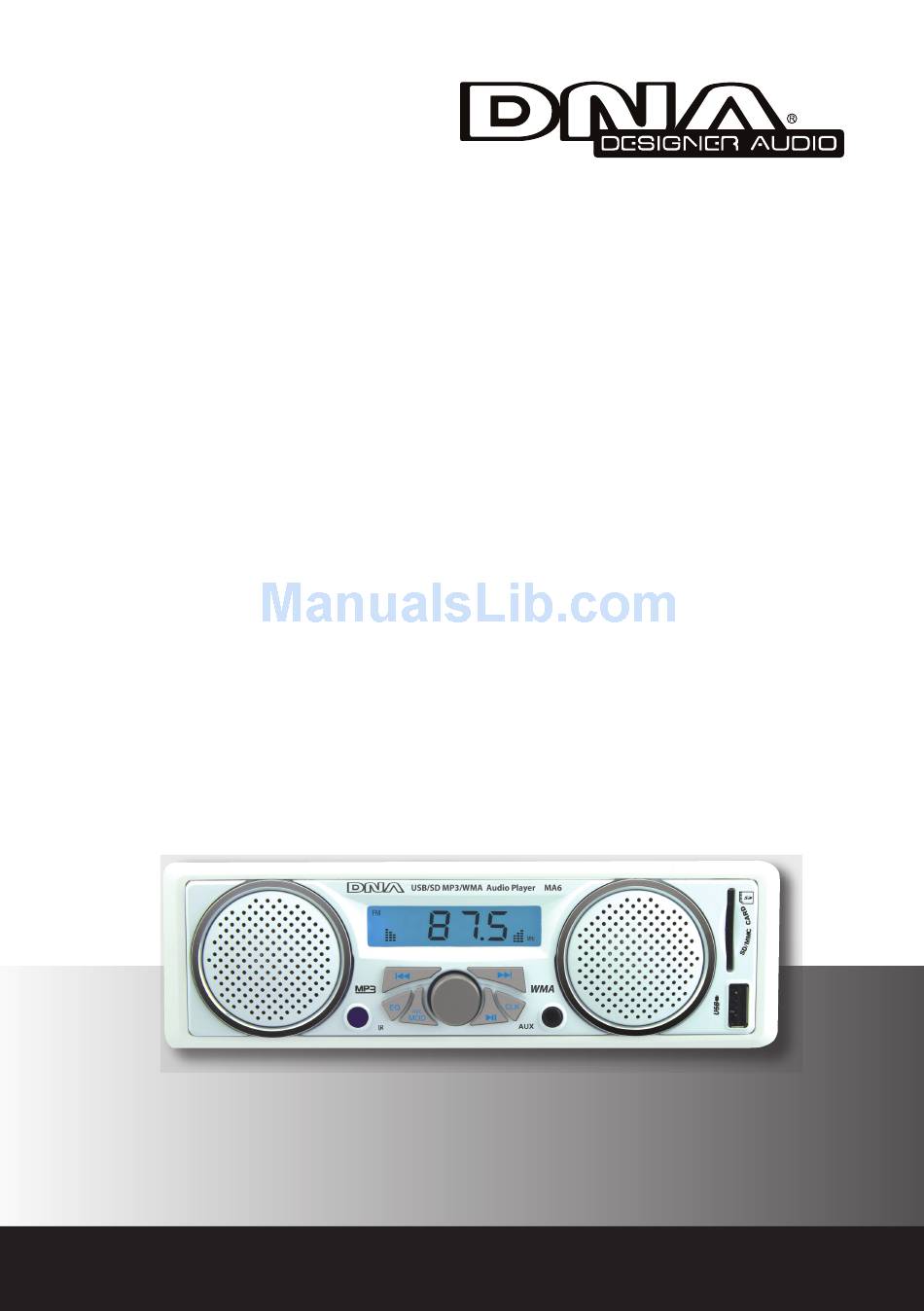

MARINE USB/SD/MP3 AUDIO PLAYER WITH AM/FM TUNER & BUILT IN SPEAKERS Instruction Manual HIGH POWER OUTPUT www.dnaaudio.com.au... -
Page 2: Table Of Contents
USB/SD Operation…………...………..………….....………..…8 Specifications..…………...………..………….....………..…9 Troubleshooting........……...………...……...10 Warranty........……...………..…….....11 Thank you for purchasing this DNA Designer Audio product. It is designed to give you many years of enjoyment. DNA Designer Audio recommends installation by a professional installer. Read all instructions fully before installation. Precautions: Choose the mounting location where the unit will not interfere with the normal driving function of the driver. -
Page 3: Installation
Installation DIN FRONT-MOUNT (Method A) Installing the unit: 1. Dashboard 2. Holder After inserting the holder into the dashboard, select the appropriate tab according to the thickness of the dashboard material and (Fig . 1) bend them inwards to secure the holder in (Fig.1) place. -
Page 4: Wiring Diagram
Installation SIDE-MOUNT (Method C) Installation using the screw holes on the sides of the unit. Fastening the unit to the factory radio mounting bracket: 1. Select a position where the screw holes of the bracket and the screw holes of the main unit become aligned (are lifted) and tighten the screws at 2 places on each side. -
Page 5: General Operation
General Operation FRONT PANEL LAYOUT 1. Power ON / OFF & Volume Knob 8. Equalizer Button 2. Change Mode Button 9. AUX IN JACK 3. Clock Button 10. USB Connector 4. LCD Display 11. SD / MMC Slot 5. Tune Seek & Track Forward Button 12. -
Page 6: General Operation 5
General Operation Power On/Off & Volume Press the PWR/VOLUME knob to switch the unit ON or OFF. Turn this knob to adjust the VOLUME up or down. Mode Press the MOD button to select between AM / FM, USB, SD or AUX input modes. Modes of operation are indicated in the display. - Page 7 General Operation Skip (USB/SD Card Mode) Momentarily press the back or forward SKIP buttons to select the previous or next track by 1. Press and hold the back or forward SKIP buttons for 2 seconds to select the previous or next track by 10. Remote (IR) Functions 1.
-
Page 8: Usb/Sd Operation
USB/SD Operation USB/SD Operation Inserting an SD Card (sold separately) insert an SD card into the SD card slot with the label facing right. Connecting a USB Device (sold separately) storage devices by connecting them to the USB port. Playing Music detected, “000”... -
Page 9: Specifications
General Power supply requirements: DC 14.4V, Negative Ground Load impedance: 4 ohms Line output voltage: 1.4 Volts Chassis dimensions: 180 x 115 x 52mm (W x D x H) Current drain: 5A FM Tuner Tuning range: 87.5MHz - 108MHz Noise-Limited sensitivity: >26dB Signal to noise ratio (S/N): >45dB AM Tuner Tuning range: 522kHz - 1620kHz... -
Page 10: Troubleshooting
Troubleshooting For advice on simple problems during the course of installation, debugging and general use of the marine media player, please check the table below: ISSUE OPTIONS Cause: Yellow or red wire not connected or incorrect voltage Action: Check connections for proper voltage (11~16VDC) Unit will not turn Cause: Black (GND) wire not connected on (no power) -
Page 11: Warranty
Warranty Warranty Policy SPL Wholesale Pty Ltd warrants your new product to be free from defects in materials and workmanship for twelve (12) months, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. - Page 12 www.dnaaudio.com.au...
