Pressurized Pond Filter
We at azponds.com would like to thank you for purchasing our NitraMAX Pressurized Pond Filter. Please read
these instructions to acquaint yourself with your new NitraMAX filter and its recommendations before you attempt
Installation. If at any time you have questions regarding parts or installation, please do not hesitate to contact us
at www.azponds.com, or 1-800-722-8877.

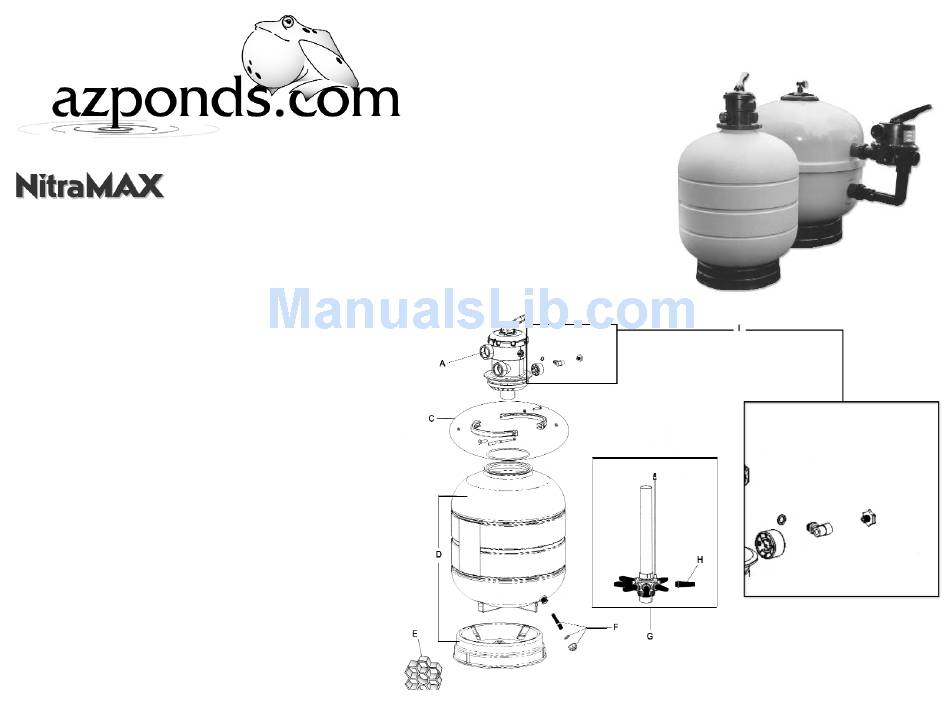

Top Mount Filter Style
A. Selector Valve 1 ½" (#017-22358)
B. (not shown) Sight Glass Assembly (#017-006)
C. Clamp Assembly (#01798)
D. NitraMax 2000 Filter Body 15" (#01790-B)
NitraMax 4000 Filter Body 17" (#01791-B)
NitraMax 6000 Filter Body 19" (#01792-B)
NitraMax 8000 Filter Body 22" (#01793-B)
NitraMax 10000 Filter Body 26" (#01794-B)
E. Bee Cell Media
F. Water Drain Assembly (#1797)
G. NitraMax 2000 Filter Internal Replacement (#01790-I)
NitraMax 4000 Filter Internal Replacement (#01791-I)
NitraMax 6000 Filter Internal Replacement (#01792-I)
NitraMax 8000 Filter Internal Replacement (#01793-I)
NitraMax 10000 Filter Internal Replacement (#01794-I)
H. ¾" Lateral Arm - x8 needed (#1800-07)
I. Pressure Gauge Assembly (#01799)
SAFETY WARNING *Whenever handling the filter or valves, ensure electricity is isolated. *Do not operate the filter without water.
Instruction Manual - 2005
Diagram #1
Diagram #2
Advertisement
Table of Contents
Summary of Contents for AZPonds NitraMAX
- Page 1 Instruction Manual - 2005 Pressurized Pond Filter We at azponds.com would like to thank you for purchasing our NitraMAX Pressurized Pond Filter. Please read these instructions to acquaint yourself with your new NitraMAX filter and its recommendations before you attempt installation.
- Page 2 Side Mount Filter Style R. Lid Assembly (#01798-2) S. NitraMax 20000 Filter Body 30" (cannot replace individually) NitraMax 30000 Filter Body 36" (cannot replace individually) T. NitraMax 20000 Multi-port Selector Valve 2" (#017-09848) NitraMax 30000 Multi-port Selector Valve 2" (#017-28226) U.
- Page 3 The filter's selector valve is set to "backwash" before leaving the factory. Prior to installing your new NitraMAX filter we recommend running the filter on backwash for a few minutes, cleaning out any unwanted particles that may be inside of the filter as a result of the manufacturing process.
- Page 4 Closed: The "closed" option closes off the entry of water to the filter and is normally used when access to the pump/pre-filter basket is required. *Winterizing the NitraMAX filter requires the filter to be drained with the Bee Cell Media being removed and cleaned with fresh water. Conduct winterizing prior to freezing to allow the filter to dry out.
- Page 5 Sequence Primer ¼ Hp (2,400 gph) NitraMAX 4000 The NitraMAX filter can be located directly aside of the pool or in a remote location. The NitraMAX filter can be Sequence Primer ¼ Hp.(2,400 gph) positioned below the water level of the pool if swing-check and ball valves are being used.
- Page 6 Proper water circulation inside the pool gets the solid waste to the surface skimmer and bottom drain. Energy Efficient Pump: NitraMAX Filters create far less pressure due to the size and shape of their Bee Cell media. This in turn allows the filters to be operated with pumps using "low"...
- Page 8 Have a question? AZPONDS.COM recommends that you read all instructions and collect all required plumbing parts before installing the NitraMAX filter or filter system. If you have a question regarding installation or operation please do not hesitate to contact us at AZPONDS.COM 1-800-722-8877 AZPONDS@AOL.COM...
