Summary of Contents for nanov NGLT104WP

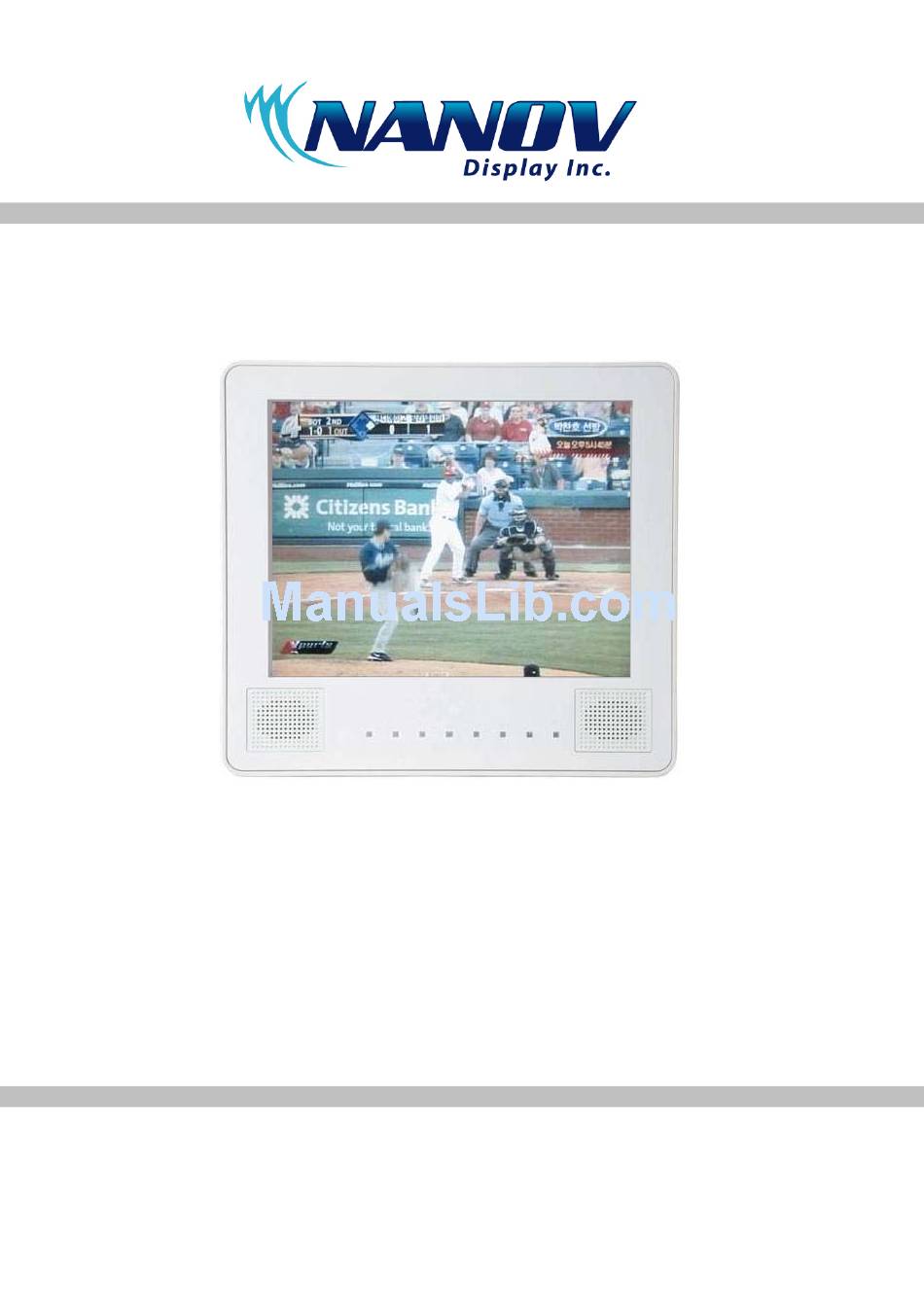

- Page 1 USER’S Manual NGLT104WP NGLT150WP LCD TV / Monitor (IP67 Grade) This Manual is revisable without further notice...
-
Page 2: Table Of Contents
Contents Contents ------------------------------------------------------------------- Safety Precautions ---------------------------------------------------------- 2 Operating Safety ------------------------------------------------------------ 3 Packing ----------------------------------------------------------------------- 4 Wall mounting --------------------------------------------------------------- 5 Wiring ------------------------------------------------------------------------ Remote Controller ---------------------------------------------------------- Basic Operations ------------------------------------------------------- 1. POWER ON / OFF --------------------------------------------------- 8 2. MENU ACCESS ----------------------------------------------------- 8 3. VIDEO SOURCE SELECTION --------------------------------------- 9 4. -
Page 3: Safety Precautions
Safety Precautions TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK COVER. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONAL The symbol is intended alert the user to the presence of un-... -
Page 4: Operating Safety
Operating Safety Operating Safety Use only factory supplied power adapter and connector Assemblies to operate the TV monitor. When a user install the TV Monitor himself, read the “INSTALL GUIDE” before installation. Do not install power outlet in a hot or humid place, or where there is excessive dust or vibration. -
Page 5: Packing
Packing Monitor Remote controller Power adapter User’s manual Power cord Monitor Remote Controller Power Adapter User’s manual Power Cord... -
Page 6: Wall Mounting
Wall mounting Installing VESA compliant mounting devices 1. Align the mounting interface pad (75mm × 75mm hole spacing) with the holes in the holes in the monitors rear cover mounting pad. 2. Secure bracket with the four screws ( 4mm : M4) that came with the VESA mounting device. -
Page 7: Wiring
Wiring 1. AV Connecter Video In CVBS (Yellow) Audio In Left (White) Audio In Right (Red) Speaker Out Left (White) Speaker Out Right (Red) 2. S-Video Connecter 3. D-SUB(PC) Connecter 4. DC 12V Power Jack Make sure check the audio and video source wiring before WIRING CONNECTION... -
Page 8: Remote Controller
Remote Controller Power On/Off Basic Operations : Source Select Menu Operation : Item Select Audio Mute On/Off Basic Operations : Volume Down Menu Operation : Value Down Column Down Menu Operation : Column Up Basic Operations : Menu Enter Menu Operation : Menu Exit Basic Operations : Volume Up Menu Operation : Value Up Column Up... -
Page 9: Basic Operations
A/V Basic Operations Note The buttons on the front bezel are designed with infrared technology; you can control by touching each button only not pressing. 1. POWER ON / OFF To turn power on, put your finger on the “POEWR” button. A power-indicate green lamp turn on and you can see a signal on the screen. -
Page 10: Video Source Selection
A/V Basic Operations 3. VIDEO SOURCE SELECTION To select PC, Video and S-Video, put your finger on the “SOURCE” SOURCE button. OSD, “PC” or other functions appear on the left upper side of the screen in turn whenever touch “SOURCE” button. 4. -
Page 11: Menu Operations
Menu Operations 1. MENU PICTURE MENU SCREEN MENU MENU SOUND MENU OSD MENU MISCELLANEOUS MENU To select a menu item, put your finger on “◀” button and the ◁ VOL ▷ green color Bar will move down. On the contrary, touch the “▶”... -
Page 12: Av Picture Menu
Menu Operations 2. AV PICTURE MENU Contrast (0~100) Adjust contrast by using right/left keys. Bright (0~100) Adjust bright by using right/left keys. Color (0~100) Adjust color by using right/left keys. Tint (-50~0~50) Adjust tint by using right/left keys. Sharpness (0, 33, 66, 100) Adjust sharpness by using right/left keys. -
Page 13: Pc Picture Menu
Menu Operations 4. PC PICTURE MENU Contrast (0~100) Adjust contrast by using right/left keys. Bright (0~100) Adjust bright by using right/left keys. Color Temperature (Cool, Normal, Warm, User) Select Color temperature by using right/left keys. Gain Red (0~100) Adjust red gain by using right/left keys. Gain Green (0~100) Adjust green gain by using right/left keys. -
Page 14: Sound Menu
Menu Operations 6. SOUND MENU Volume (0~50) Adjust volume by using right/left keys. Balance (-50~0~50) Adjust balance by using right/left keys. Bass (0~100) Adjust bass by using right/left keys. Treble (0~100) Adjust treble by using right/left keys. Mute (On, Off) Select sound mute on/off by using right/left keys. -
Page 15: Miscellaneous Menu
Menu Operations 8. MISCELLANEOUS MENU Sleep Time (Off, 10~250 min) Adjust sleep time by using right/left keys. Default Press the right key, and the setting will be reset to factory default. -
Page 16: System Specification
System Specification 1. NGLT104WP Specification Size 10.4 Inch Panel Resolution SVGA (800*600) Signal Input Composite Video (1CH), S-Video (1CH), VGA (1CH) Color System NTSC(M/J, 4.43), PAL(B/G, M, N, 60) , SECAM Speaker out [L/R] 3W / 3W Max Control Remote Control / Front Touch (IR Type) Key... - Page 17 System Specification 2. NGLT150WP Specification Size 15 Inch Panel Resolution XGA (1024*768) Signal Input Composite Video (1CH), S-Video (1CH), VGA (1CH) Video System NTSC(M/J, 4.43), PAL(B/G, M, N, 60) , SECAM Speaker out [L/R] 5W / 5W Max Control Remote Control / Front Touch (IR Type) Key Waterproof Grade IP 67 Power Input...
-
Page 18: Optional Accessories
Optional Accessories 1. Water Resistant Wall Mount Brackets Flush Adjustable 2. RAM Mount with VESA Plate 3. Monitor Enclosure with Arm Mount...
