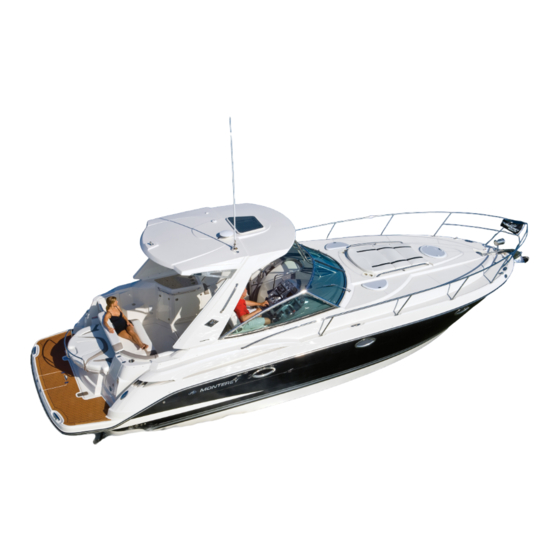

Summary of Contents for MONTGOMERY BOATS 340 SPORT YACHT
- Page 2 MONTEREY BOATS ...
-
Page 3: Welcome
WELCOME MONTEREY BOATS Dear Valued Customer, Welcome to the Monterey Life! We would like to extend to you our “Thank You” for choosing a Monterey boat! You have made an investment in our product and we are confident you will enjoy many years of boating pleasure. -
Page 4: Boat Information
bOAT INfORMATION MONTEREY BOATS Please fill out the following information section and leave it in your Monterey owner’s manual. This information will be important for you and Monterey service personnel to know, if you may need to call them for technical assistance or service. bOAT MODEL: HULL SERIAL #:... -
Page 5: Specifications
SPECIfICATIONS MONTEREY BOATS HULL LENGTH OVERALL __________________________________________ 35’ 3” / 10.75 m WEIGHT DRY ________________________________________________ 14,200 lbs / 6441 kg WEIGHT WITH WATER AND FUEL _______________________________ 15,831 lbs / 7181 kg BEAM ___________________________________________________________ 11’-3” / 3.43 m DEADRISE _______________________________________________________________ 17 DRAFT WITH DRIVE UP_______________________________________________ 25”... -
Page 6: Certifications & Specifications
CERTIfICATIONS & SPECIfICATIONS MONTEREY BOATS (For Export Only) To be in compliance with European directives for recreational boats as published by the International Organization for Standardization (ISO) in effect at the time this boat was manufactured, we are providing the following information. Manufacturer: Name SEABRING MARINE INDUSTRIES, INC., d.b.a. -
Page 7: Introduction And Important Information
INTRODUCTION AND IMPORTANT INfORMATION MONTEREY BOATS All instructions given in this book are as seen from Please refer to the engine and generator owner’s the stern looking toward the bow with starboard manual for the location of the serial numbers. being to your right, and port to your left. - Page 8 INTRODUCTION AND IMPORTANT INfORMATION MONTEREY BOATS you have questions about the equipment on your materials, as stated in the Limited Warranty, you should contact your Monterey dealer to arrange Monterey, please contact the Monterey Boats for the necessary repair. If you are not near your Customer Service Department.
-
Page 9: Monterey Boats Limited Lifetime Warranty
MONTEREY bOATS LIMITED LIfETIME WARRANTY MONTEREY BOATS MONTEREY BOATS warrants to the original retail purchaser of its product beginning with the 2008 models that it will repair or replace defects in materials and workmanship found to exist in its product during the applicable warranty periods defined below if purchased from an authorized MONTEREY BOATS dealer, subject to the exclusions, limitations, conditions and provi- sions noted below. - Page 10 MONTEREY bOATS LIMITED LIfETIME WARRANTY MONTEREY BOATS Alterations which will void this warranty include, without limitation, damage, accident repair, sanding, scraping, sandblasting, or improper surface preparation for application of a marine barrier coating or bottom paint. A marine barrier coating must be properly applied to the hull bottom if the boat is to be moored in water for periods of more than sixty (60) days in any ninety (90) day period and a marine barrier coating is also required if the boat is to be bottom painted.
- Page 11 MONTEREY bOATS LIMITED LIfETIME WARRANTY MONTEREY BOATS GENERAL PROVISIONS: All general, special, indirect, incidental and/or consequential damages are excluded from this warranty and are totally disclaimed by MONTEREY BOATS. It is the intent of the parties that the Owner’s sole and exclusive remedy is the repair or replacement of the product or its allegedly defective component parts and that no other legal or equitable remedies shall be available to said owner.
-
Page 12: Safety Information
SAfETY INfORMATION MONTEREY BOATS Your Monterey owner’s manual has been written to include a number of safety instructions to assure the safe operation and maintenance of your boat. These instructions are in the form of DANGER, WARNING, and CAUTION statements. The following definitions apply: HAZARDS OR UNSAfE PRACTICES WHICH COULD RESULT IN MINOR PERSONAL INJURY OR PRODUCT AND PROPERTY DAMAGE. -
Page 13: Owner's / Operator's Information
OWNER’S / OPERATOR’S INfORMATION MONTEREY BOATS Registration and Numbering regarding accident reporting, please call the Boat- Federal law requires that all undocumented ves- ing Safety Hotline, 800-368-5647. sels equipped with propulsion machinery be regis- tered in the State of principal use. A certificate of Education number will be issued upon registering the boat. -
Page 14: New Boat Delivery
NEW bOAT DELIVERY MONTEREY BOATS Your Monterey boat is inspected at each step of the manufacturing process. Before leaving the fac- tory, every Monterey boat undergoes a thorough check for systems operation, fit and finish. Your Monterey Dealer also performs a Pre-Delivery inspection prior to final delivery. When the new boat is delivered to you, the customer, a final check is performed during orientation. -
Page 15: Table Of Contents
TAbLE Of CONTENTS MONTEREY BOATS WELCOME ......................... 3 BOAT INFORMATION ......................4 SPECIFICATIONS ........................ 5 CERTIFICATIONS & SPECIFICATIONS ..................6 INTRODUCTION AND IMPORTANT INFORMATION ..............7 MONTEREY BOATS LIMITED LIFETIME WARRANTY ..............9 SAFETY INFORMATION .......................12 OWNER’S / OPERATOR’S INFORMATION ................13 NEW BOAT DELIVERY ......................14 TABLE OF CONTENTS ......................15 Chapter 1:... - Page 16 TAbLE Of CONTENTS MONTEREY BOATS Chapter 5: FRESH WATER SYSTEM 5.1 General ........................55 5.2 Fresh Water System Operation ..................55 5.3 Water Heater ......................56 5.4 Shore Water Connection ....................56 5.5 Shower Operation .......................57 5.6 Fresh Water System Maintenance .................57 Chapter 6: RAW WATER SYSTEM 6.1 General ........................59 6.2 Air Conditioning (Optional) ...................59...
- Page 17 TAbLE Of CONTENTS MONTEREY BOATS Chapter 11: SAFETY EQUIPMENT 11.1 General ........................91 11.2 Engine Alarms ......................91 11.3 Neutral Safety Switch ....................91 11.4 Required Safety Equipment ..................92 11.5 Automatic Fire Extinguishing System ................93 11.6 Carbon Monoxide Monitoring System ................95 11.7 First Aid ........................96 11.8 Additional Safety Equipment ..................96 11.9 Caution and Warning Labels ..................97 Chapter 12:...
- Page 18 TAbLE Of CONTENTS MONTEREY BOATS Appendix C: Boating Accident Report ....................134 Appendix D: GLOSSARY OF TERMS ......................137 Appendix E: TROUBLESHOOTING GUIDE ....................143 ...
-
Page 19: Propulsion System
MONTEREY BOATS PROPULSION SYSTEM 1.1 General The Monterey 340 Sport Yacht is designed to be powered with twin inboard/outboard gas or diesel engines and drive systems. Each manufacturer of the various inboard/outboard drive systems provides an owner’s information manual with its product. -
Page 20: Engine Exhaust System
Engine exhaust exits the rear of the boat through line engines and standard with diesel engines on the exhaust system. The system consists of en- the 340 Sport Yacht. The engine owner’s manual gine exhaust manifolds, exhaust hoses and the provides additional information regarding service outdrive. -
Page 21: Propellers
The propellers that will best suit the needs of your 340 Sport Yacht will depend somewhat on your 1.6 Performance Issues and Propellers application and expected average load. Propeller sizes are identified by a number or code stamped It is extremely important that the boat is propped on the prop. -
Page 22: Engine And Helm Instrumentation
Propulsion System MONTEREY BOATS Diesel and gas engines can be damaged and the Tachometer warranty voided if the boat is not propped cor- The tachometer displays the speed of the engine rectly. Always consult your Monterey or autho- in revolutions per minute (RPM). This speed is rized engine service dealer when making changes not the boat speed nor necessarily the speed of to the propellers or if the boat does not run near... -
Page 23: Chapter 2
Propulsion System MONTEREY BOATS 4 in 1 Multifunction Gauge Tilt/Trim Gauge The tilt/trim gauge monitors the position of the alarm system mounted in the helm area that moni- outdrive. The upper range of the gauge indicates tors selected critical engine systems. The alarm the tilt, which is used for trailering and shallow will sound if one of these systems begins to fail. - Page 24 Propulsion System MONTEREY BOATS High Water Alarm Your boat is equipped with an audible high water alarm system. The alarm will sound if water in the bilge rises high enough to activate the alarm switch. The automatic switch for the alarm is mounted sig- nificantly higher than the automatic float switches for the bilge pumps.
-
Page 25: Helm Control Systems
Chapter 2: MONTEREY BOATS HELM CONTROL SYSTEMS 2.1 General The helm controls consist of three systems: the engine throttle and shift controls, the steering system, and the trim tab control switches. These systems provide the operator with the ability to control the direction and attitude of the boat from the helm station. -
Page 26: Neutral Safety Switch
Helm Control Systems MONTEREY BOATS compartment that operates the engine throttle and transmission control lever. The controls have a single lever for each engine that operates as a gearshift and a throttle. General operation will include a position for neutral (straight up and down or slightly aft of vertical), a forward position (the 1st detent forward of neutral), and a reverse position (the 1st detent aft of neutral). -
Page 27: Outdrive Power Tilt And Trim
Helm Control Systems MONTEREY BOATS Make sure the throttle levers are set to the idle position. Activate the starter switch for each engine just long enough to briefly engage the starter. Do not hold the starter switch in the start position long enough to start the engine. -
Page 28: Trim Tabs
Helm Control Systems MONTEREY BOATS Under normal conditions, with engines running, a pressurized hydraulic oil supply is in a standby mode, ready to be directed to the steering cylin- der as dictated by the steering wheel and power steering valve. Turning the steering wheel left or right causes the power system to go from ‘standby’... -
Page 29: Control Systems Maintenance
Helm Control Systems MONTEREY BOATS Be extremely careful when operating in a following sea. The effect of trim tabs is amplified under such conditions. Steering and handling difficulties can result from improper trim tab usage, particularly in a following sea. Always raise the tabs to the full bow up position in these conditions. - Page 30 Helm Control Systems MONTEREY BOATS The trim tab fluid should be checked often. Keep in an electrolyte. Sea water is an electrolyte and the fluid level between the marks on the trim tab submerged metal components must be properly pump reservoir. protected.
-
Page 31: Fuel System
Chapter 3: MONTEREY BOATS fUEL SYSTEM 3.1 General The fuel system used in Monterey boats is de- signed to meet or exceed the requirements of the U.S. Coast Guard and the Boating Industry Association in effect at the time of manufacture. All fuel systems have been factory inspected and pressure tested in accordance with regulations in effect at the time of manufacture. -
Page 32: Gasoline Engine Fuel Systems
It is recommended that the filters are inspected 3.2 Gasoline Engine Fuel Systems after the first 25 hours of use and then serviced The gasoline fuel system on the 340 Sport Yacht as needed. Always follow the engine or filter has two fuel tanks, one tank for each engine. -
Page 33: Diesel Engine Fuel System
Fuel System MONTEREY BOATS 3.3 Diesel Engine Fuel System The diesel fuel system works much like the gas system. The main difference is the diesel system is not equipped with anti-siphon valves and there is always a fuel return line for each engine that returns unused fuel to the fuel tank. - Page 34 Fuel System MONTEREY BOATS The fuel valve is labeled “PORT” and “STBD.” The labels refer to the fuel tank the valve selects. To keep the boat properly balanced the fuel supply should be managed by switching tanks every six hours of generator operation. The generator withdrawal tube is shorter than the main engine withdrawal tubes to prevent the generator from consuming the reserve fuel.
-
Page 35: Fueling Instructions
Fuel System MONTEREY BOATS 3.5 Fueling Instructions Note: When the fuel tank is full, fuel will come out through the fuel tank vent. The fuel tank vents are located on the fUEL IS VERY fLAMMAbLE AND THE VAPORS CAN side of the boat. Monitor the vents EXPLODE. -
Page 36: Fuel System Maintenance
Fuel System MONTEREY BOATS the filters. Most algae appears as black, carpet- GASOLINE fUEL VAPORS THAT ACCUMULATE IN like fibers suspended in fuel and water drained THE CAbIN OR ENGINE COMPARTMENT WHILE from the filters. Severe cases of algae will produce fUELING CAN EXPLODE!! TO REDUCE THE a black jelly like substance that quickly clogs the RISK Of A fIRE AND/OR EXPLOSION AfTER... - Page 37 Fuel System MONTEREY BOATS TO REDUCE THE POSSIbILITY Of A fIRE OR AVOID SERIOUS INJURY OR DEATH fROM fIRE EXPLOSION, MAKE SURE ALL ELECTRICAL OR EXPLOSION RESULTING fROM LEAKING SWITCHES ARE IN THE “Off” POSITION bEfORE fUEL, INSPECT SYSTEM fOR LEAKS AT LEAST SERVICING THE fUEL SYSTEM.
- Page 38 MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
-
Page 39: Electrical System
Chapter 4: MONTEREY BOATS ELECTRICAL SYSTEM 4.1 General Your Monterey is equipped with 120-volt AC and 12-volt DC electrical systems. The AC system can draw current from one of two sources, either shore power outlets at dockside or the genera- tor. - Page 40 Electrical System MONTEREY BOATS cases and the battery cables that run from under them. There are 4 large cases and one small case. The 4 large cases consist of 3 identical battery switches (port engine battery, starboard engine battery, and house battery) and one case marked “VSR Voltage Sensitive Relay Module.”...
- Page 41 Electrical System MONTEREY BOATS 12-Volt Accessory Switch Panels The main accessory switch panels and the engine start switch panel are located at the helm. The circuit breakers that protect the accessories and activate the engine starting circuits are located in a breaker panel below the helm switches and in Helm Switch Panel - Starboard Side the engine compartment breaker panel.
- Page 42 Electrical System MONTEREY BOATS switch once. The LED light in the switch flashes. Blower Press the switch again, the steady LED light in the This switch supplies electrical current to the switch indicates the bow thruster control panel is blowers that provide ventilation to the engine activated and the bow thruster is operational.
- Page 43 Electrical System MONTEREY BOATS next to the holding tank monitor. It is a mo- mentary switch that activates the level indicator lights and the macerator discharge system for the holding tank. Refer to the Marine Head System in the Interior Equipment chapter for additional information on the operation of the overboard macerator discharge system.
- Page 44 Electrical System MONTEREY BOATS Provides protection and power for the stereo am- plifier. This “push to reset” breaker is supplied current when the House battery selector switch is activated. Cabin Pump Provides protection and power for the automatic float switch on the forward bilge pump in the cabin bilge.
- Page 45 Electrical System MONTEREY BOATS by raising the lever until it locks in the horizontal position. Engine Main Breakers The primary circuits for the engines are protected by a heavy duty, “push to reset” breaker on each engine. They are supplied power whenever the engine battery switches are on.
-
Page 46: 120-Volt System
Electrical System MONTEREY BOATS Blower 2 TO REDUCE THE POSSIbILITY Of AN ELECTRICAL A “push to reset” breaker that supplies electrical cur- SHOCK, IT IS IMPORTANT THAT THE AC GROUND rent to the port bilge blower in the engine compartment. SYSTEM IS fUNCTIONING PROPERLY AND THAT A PROPER CONNECTION EXISTS bETWEEN THE Generator Operation Panel... - Page 47 Electrical System MONTEREY BOATS ELECTRIC SHOCK CAN CAUSE SEVERE INJURY OR EVEN DEATH. DO NOT ATTEMPT TO CORRECT THE WIRING YOURSELf. ALWAYS HAVE A QUALIfIED ELECTRICIAN CHECK WIRING KEEP CHILDREN AWAY fROM ANY ELECTRICAL CAbLES OR EQUIPMENT AND ALWAYS USE GROUNDED APPLIANCES ON bOARD YOUR bOAT.
- Page 48 Electrical System MONTEREY BOATS AC Volt Meters indicate between 12 and 14.5 volts. If the reading Indicates the voltage supplied to the panel. There is below 12 volts, then the battery is not accepting are two meters that monitor Shore Main # 1 or a charge or the charger is not working properly.
-
Page 49: Generator
Electrical System MONTEREY BOATS Note: All AC electrical outlets are provided The ON/OFF switch turns the TruePower Inverter with ground fault interrupts to protect to ON or to OFF. In the ON position, the Inverter against electric shock. These out- / Fault LED light will illuminate green. - Page 50 Electrical System MONTEREY BOATS an expansion tank for the engine coolant mounted near the generator. Make sure the fluid level in the expansion tank is kept between the maximum and minimum lines of the tank. The seawater cooling system operates exactly like the cooling system on the main engines.
-
Page 51: Bonding System
Electrical System MONTEREY BOATS The generator fuel system is equipped with a water WHEN REPLACING LIGHT bULbS IN MARINE LIGHT separating fuel filter and operates much like the fIXTURES, ALWAYS USE A bULb WITH THE SAME fuel system for the main engines. Please refer to RATING AS THE ORIGINAL. - Page 52 Electrical System MONTEREY BOATS Generator Maintenance A bATTERY CAN EXPLODE If A fLAME OR SPARK The engine maintenance required on the genera- IGNITES THE HYDROGEN GAS THE bATTERY tor is similar in many ways to the main engines. EMITS WHILE bEING CHARGED. NEVER USE AN The most important factors to the generator’s lon- OPEN fLAME IN THE bATTERY STORAGE AREA.
-
Page 53: Ac Line Load Estimator
Electrical System MONTEREY BOATS 4.7 AC Line Load Estimator require and managing the electrical load on each circuit. An owner’s manual for each AC accessory Depending on the AC power load your boat re- installed on your boat at the factory has been quires and the power available from the shore included with your boat. - Page 54 Electrical System MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
-
Page 55: Fresh Water System
Chapter 5: MONTEREY BOATS fRESH WATER SYSTEM 5.1 General The fresh water system consists of a potable water tank, distribution lines and a distribution pump. The pump is equipped with an automatic pressure switch and is located on the water heater in the engine compartment. -
Page 56: Water Heater
Fresh Water System MONTEREY BOATS 5.3 Water Heater The water heater is located in the engine compart- ment. It has a 120-volt element that is thermo- statically controlled at the heater and activated by a circuit breaker located in the 120-volt panel. The water heater is also equipped with a heat exchanger that is plumbed to the water cooling system on one of the engines. -
Page 57: Shower Operation
Fresh Water System MONTEREY BOATS 5.5 Shower Operation There is a shower located in the head compart- ment and at the transom on the port side, near the transom door. Each shower has hot and cold water and a retractable shower head with an on/ off valve. - Page 58 Fresh Water System MONTEREY BOATS • Periodically spray the pumps and metal • Fill the water tank half full with freshwater, components with a metal protector. then pour the mixture into the water tank and top off the tank. • The batteries must be properly maintained and charged.
-
Page 59: Raw Water System
Chapter 6: MONTEREY BOATS RAW WATER SYSTEM 6.1 General In the raw or sea water systems, all water pumps are supplied by hoses connected to ball valves and thru-hull fittings located in the in the bilge. Always make sure the ball valves are open before attempting to operate any component of the raw water system. -
Page 60: Raw Water System Maintenance
Raw Water System MONTEREY BOATS 6.3 Raw Water System Maintenance • Thoroughly flush the screen and the inside of the strainer to remove foreign matter. The following items should be done routinely to help maintain your raw water system: • Lubricate the seal. -
Page 61: Drainage Systems
Chapter 7: MONTEREY BOATS DRAINAGE SYSTEMS 7.1 General Most water is drained by gravity to overboard thru-hull fittings located in the hull sides above the waterline. You should check the drain system frequently to ensure it is free flowing and that the hoses on the thru-hull fittings are secure and not leaking. -
Page 62: Cockpit And Deck Drains
Drainage Systems MONTEREY BOATS near the transom. The plug should be removed whenever the boat is hauled out of the water and installed just prior to launching. It is important to check the drain plug regularly to make sure it is tight. -
Page 63: Drainage System Maintenance
Drainage Systems MONTEREY BOATS 7.5 Drainage System Maintenance The sump system is located below the aft berth in the cabin and accessed by removing the mattress It is essential that the following items be done and opening the access hatch. The sump has a periodically to maintain proper drainage of your removable lid to allow the system to be inspected boat:... - Page 64 MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
-
Page 65: Ventilation System
Chapter 8: MONTEREY BOATS VENTILATION SYSTEM 8.1 Cabin Ventilation Ventilation to the cabin area is provided by three deck hatches. Additionally, there is a 12-volt exhaust blower in the head compartment that provides forced ventilation to that area whenever the blower is activated by the switch on the head compartment wall. -
Page 66: Carbon Monoxide And Proper Ventilation
Ventilation System MONTEREY BOATS vers. The cam levers should be adjusted so they should the engines be operating with side are tight enough to seal the windows in the closed curtains closed and the aft or drop curtain position, but not so tight that the window becomes installed. -
Page 67: Engine Compartment Ventilation
Ventilation System MONTEREY BOATS the owner’s manual supplied by the CO detector manufacturer for operation instructions and ad- ditional information regarding the hazards and symptoms of carbon monoxide poisoning. ACTIVATION Of THE CARbON MONOXIDE DETECTOR INDICATES THE PRESENCE Of CARbON MONOXIDE (CO) WHICH CAN bE fATAL. EVACUATE THE CAbIN IMMEDIATELY. -
Page 68: Maintenance
Ventilation System MONTEREY BOATS 8.4 Maintenance • The bilge blowers are permanently lubricated and require no maintenance. Blower operation • Periodically lubricate all hinges and latch can and should be tested by placing a hand assemblies with a light oil. over the exhaust vents. -
Page 69: Exterior Equipment
Chapter 9: MONTEREY BOATS EXTERIOR EQUIPMENT 9.1 Deck Rails and Deck Hardware The rail system and hardware fittings have been selected and installed to perform specific func- tions. Bow and hand rails are installed to provide a hand hold in certain areas of the boat. You should make sure you keep at least one hand on the hand holds as you move about the boat. - Page 70 Exterior Equipment MONTEREY BOATS A LOOSE ANCHOR IN THE ANCHOR LOCKER WILL bOUNCE AND CAN DAMAGE THE bOAT. THE ANCHOR MUST bE POSITIONED SO IT DOES NOT REST AGAINST THE HULL SIDES AND bE PROPERLY SECURED AT ALL TIMES WHEN IT IS STORED IN THE ANCHOR LOCKER.
- Page 71 Exterior Equipment MONTEREY BOATS The center windshield section opens to provide access to the bow deck area and ventilation to cockpit when the boat is at anchor or tied to a dock. The section is opened by releasing the locks on the inside of the windshield.
-
Page 72: Hull
Exterior Equipment MONTEREY BOATS PASSENGERS RIDING ON THE DECK WHILE CRUISING RESTRICT THE OPERATOR’S VISIbILITY AND COULD bE THROWN OVERbOARD bY WAVE ACTION OR AN UNEXPECTED MANEUVER fROM THE HELM. THIS IS A fREQUENT CAUSE Of ACCIDENTS. NEVER ALLOW PASSENGERS TO RIDE ON THE DECK WHILE THE bOAT IS CRUISING. -
Page 73: Cockpit
Exterior Equipment MONTEREY BOATS The compartment below the sun lounge provides storage for the shore cords, water hose, and fend- ers. The hatch is equipped with special mounting brackets for the cockpit table and pedestal. It is drained by gravity to the engine hatch drain system. - Page 74 Exterior Equipment MONTEREY BOATS sure it is completely closed and secured by the magnetic latch. The transom door should be opened only when the boat is not in motion. The door must be secured in either the full open or full closed position. Never leave the transom door unsecured.
- Page 75 Exterior Equipment MONTEREY BOATS the cabin breaker panel is on. The faucet works like faucets in your home when the fresh water system is activated. Always lower the faucet to the stored position and put the lid in place when the sink is not being used.
- Page 76 Exterior Equipment MONTEREY BOATS tion. When the backrest reaches the next position it will drop slightly and lock. For the safety of your passengers, always make sure the stern sun lounge back rest is in the full aft, lounge backrest position whenever the en- gines are running or the boat is underway.
- Page 77 Exterior Equipment MONTEREY BOATS The steering helm and engine controls are located on the rear of the helm console. The helm switch panels are just forward of the helm and the engine ignition switches are located on separate panels below the steering wheel. The circuit breakers for the helm activated accessories are located in a panel below the steering wheel.
- Page 78 Exterior Equipment MONTEREY BOATS for information on the proper care and mainte- nance of acrylic plastic glass. NEVER LEAVE THE CAbIN DOOR UNLATCHED. THE CAbIN DOOR IS HEAVY AND SLIDES EASILY. If THE DOOR IS LEfT UNLATCHED, IT COULD SLIDE UNEXPECTEDLY AS THE bOAT ROCKS, DAMAGING THE DOOR OR CAUSING AN INJURY TO A PASSENGER.
- Page 79 Exterior Equipment MONTEREY BOATS side curtains to the zippers on the sides of the top and to the front connector. Snap the curtains to the windshield, deck and arch beginning with the forward snaps on the windshield. If the top is adjusted properly, the side curtains will have to be stretched slightly to pull out the wrinkles and reach the snaps.
- Page 80 MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
-
Page 81: Interior Equipment
Chapter 10: MONTEREY BOATS INTERIOR EQUIPMENT 10.1 Head Compartment and Marine Toilet The head compartment is equipped with a sink with a hot and cold faucet. There is a shower with a removable shower head. The shower head is equipped with a valve that allows the shower water to be turned on and off without affecting the temperature to conserve water while showering. - Page 82 Interior Equipment MONTEREY BOATS the last flush for recharging the system. A hold- ing tank fluid level monitor and macerator pump out switch is located near the sink. Please refer to the toilet manufacturer owner’s manual for more information on the operation of the marine head system.
-
Page 83: Galley And Sink
Interior Equipment MONTEREY BOATS The holding tank should be pumped out and flushed as needed. Periodically add chemical to the head to help control odor and to chemi- cally break down the waste. The macerator and vacuum pumps should be sprayed with a metal protector periodically to reduce corrosion. - Page 84 Interior Equipment MONTEREY BOATS Stove The galley is equipped with a dual burner electric stove recessed into the counter top. To activate the stove, make sure the Stove breaker in the AC breaker panel is on. Make sure there is nothing but pots or pans on the stove and turn the control knob clockwise to turn the burner on.
-
Page 85: Main Salon Lounge Seat And Dinette Table
Interior Equipment MONTEREY BOATS 10.3 Main Salon Lounge Seat and Dinette Table The dinette is on the starboard side of the cabin. It is equipped with a table and a lounge seat that converts to a berth. A drink holder and tray for the entertainment center remote controls folds out of the center of the lounge backrest. -
Page 86: Air Conditioner (Optional)
Interior Equipment MONTEREY BOATS the master stateroom on the hanging locker. If excess carbon monoxide fumes are detected, an audible beeping will sound indicating the presence of the toxic gas. A by-product of combustion, carbon monoxide is invisible, tasteless, odorless, and is produced by all engines, heating and cooking appliances. -
Page 87: Master Stateroom
Interior Equipment MONTEREY BOATS master stateroom. When activated, water should continuously flow from the overboard thru-hull in the hull side. The air conditioning system produces heat when it is operated in the reverse cycle mode. The abil- ity of the unit to produce heat is affected by the temperature of the seawater. -
Page 88: Mid Berth
Interior Equipment MONTEREY BOATS A hanging locker is located on the starboard side of the stateroom. A light in the locker is auto- matically activated when the door is opened and turned off when the door is closed. Daylight and fresh air is provided to this area by an overhead opening hatch and two opening port windows. -
Page 89: Cabin Woodwork
Interior Equipment MONTEREY BOATS 10.7 Cabin Woodwork Cabin Floors The galley floor and steps are Lonseal vinyl with teak image and texture. It is important to avoid tracking sand and dirt on the cabin floor and steps. Sand and dirt acts like sand paper and will eventu- ally sand off the finish in the traffic areas. - Page 90 MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
-
Page 91: Safety Equipment
Chapter 11: MONTEREY BOATS SAfETY EQUIPMENT 11.1 General Your boat and inboard engines have been equipped with safety equipment designed to enhance the safe operation of the boat and to meet U.S. Coast Guard safety standards. The Coast Guard or state, county, and municipal law enforcement agencies require certain additional accessory safety equip- ment on each boat. -
Page 92: Required Safety Equipment
Safety Equipment MONTEREY BOATS 11.4 Required Safety Equipment pyrotechnic signals meet both day and night use requirements. They should be stored in a cool, Besides the equipment installed on your boat by dry location. They include: Monterey, certain other equipment is required by the U.S. -
Page 93: Automatic Fire Extinguishing System
Safety Equipment MONTEREY BOATS Navigation Lights Bilge and Fuel Fires Recreational boats are required to display naviga- Fuel compartment and bilge fires are very danger- tion lights between sunset and sunrise and other ous because of the presence of gasoline or diesel periods of reduced visibility (fog, rain, haze, etc.) fuel in the various components of the fuel system Navigation lights are intended to keep other ves-... - Page 94 Safety Equipment MONTEREY BOATS perature in the engine compartment reaches a specific temperature, usually around 165 The boat is equipped with an indicator light at the helm. Under normal circumstances, whenever the ignition key is turned on, the green indicator light will glow.
-
Page 95: Carbon Monoxide Monitoring System
Safety Equipment MONTEREY BOATS A slight buildup of carbon monoxide over several THE OWNER’S MANUAL PROVIDED bY THE fIRE hours causes headache, nausea and other symp- EXTINGUISHING SYSTEM MANUfACTURER toms that are similar to food poisoning, motion SHOULD bE INCLUDED WITH YOUR bOAT. IT IS sickness or flu. -
Page 96: First Aid
Safety Equipment MONTEREY BOATS information regarding the hazards of carbon mon- for treatment of serious injuries or illness. If you oxide gas. Refer to the Ventilation chapter for are within VHF range of a Coast Guard Station, information on ventilating your boat properly while make the initial contact on channel 16 and follow underway and other precautions while at anchor their instructions. -
Page 97: Caution And Warning Labels
Safety Equipment MONTEREY BOATS 11.9 Caution and Warning Labels The caution and warning labels shown are ex- amples of the labels that could be on your boat. The actual labels and their location could vary on your boat. Located on Dash ... - Page 98 MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
-
Page 99: Operation
Chapter 12: MONTEREY BOATS OPERATION 12.1 General the boat as well. Always modify the boat speed Before you start the engines on your Monterey, in accordance with the sea conditions, boat traffic you should have become familiar with the vari- and weather conditions. - Page 100 Operation MONTEREY BOATS side, providing enough clearance for safe passage. The boats should sound the appropriate signals. Overtaking Situations When one motor boat is overtaking another mo- tor boat, the boat that is being passed has the right of way. The overtaking boat must make the adjustments necessary to provide clearance for a safe passage of the other vessel.
- Page 101 Operation MONTEREY BOATS ...
-
Page 102: Pre-Cruise Check
Operation MONTEREY BOATS Note: Storms and wave action can cause • Test the automatic and manual bilge pump switches to make sure the system is working buoys to move. You should not rely properly. on buoys alone to determine your po- sition. -
Page 103: Operating Your Boat
Operation MONTEREY BOATS 12.4 Operating Your Boat DO NOT OPERATE THE bOAT UNLESS IT IS After Starting the Engines: COMPLETELY ASSEMbLED. KEEP ALL fASTENERS • Check the engine gauges. Make sure they are TIGHT. KEEP ADJUSTMENTS ACCORDING TO reading normally. SPECIfICATIONS. -
Page 104: Docking, Anchoring And Mooring
Operation MONTEREY BOATS 12.5 Docking, Anchoring and Mooring Note: For more instructions on safety, equip- ment and boat handling, enroll in one Docking and Dock Lines of the several free boating courses of- Maneuvering the boat near the dock and securing fered. - Page 105 Operation MONTEREY BOATS it is docked. Keep the engines running until the lines are secured. Backing into a Slip Approach the slip with the stern against the wind After Bow Spring Cleat or current and the outdrives straight ahead. Stern Cleat Bow Cleat Use the engines and turn the steering wheel to maneuver the boat into alignment with the slip.
-
Page 106: Controls, Steering, Or Propulsion System Failure
Operation MONTEREY BOATS 12.7 Collision lower the anchor over the bow. Pay out anchor line so that it is at least 5 to 7 times the depth of the If your boat is involved in a collision with another water and secure the line to a cleat. Use caution boat, dock, piling or a sandbar, your first priority is to avoid getting your feet or hands tangled in the to check your passengers for injuries and admin-... -
Page 107: Flooding Or Capsizing
Operation MONTEREY BOATS sense is essential. Avoid trying to assert your right RUNNING AGROUND CAN CAUSE SERIOUS INJURY of way and concentrate on staying clear and pre- TO PASSENGERS AND DAMAGE TO A bOAT AND venting tangled or cut lines and other unpleasant ITS UNDERWATER GEAR. -
Page 108: Trash Disposal
Operation MONTEREY BOATS 12.12 Trash Disposal Please contact your dealer or the Monterey Boats Customer Service Department if you are planning The discharge of plastic trash or trash mixed with to transport your boat and have any questions in plastic is illegal anywhere in the marine environ- regard to the proper equipment and support for ment. -
Page 109: Routine Maintenance
Chapter 13: MONTEREY BOATS ROUTINE MAINTENANCE 13.1 Exterior Hull and Deck has been painted with antifouling paint, contact Hull Cleaning-Below The Water Line your dealer for the recommended maintenance Your Monterey hull is manufactured using state-of- procedures. the-art materials and processes. A layer of super tough, Ashland “AME”... - Page 110 Routine Maintenance MONTEREY BOATS low quality anodes could be the problem. There • NEVER apply wax or buffing compound to a could also be a problem in the bonding system. gelcoat surface in direct sunlight. Contact your dealer for the proper size and type of anodes to be used and the specific installation •...
- Page 111 Routine Maintenance MONTEREY BOATS GEMLUX MAINTENANCE INSTRUCTIONS Cleaning Agents Method Comments Apply with a sponge Once your stainless is Routine Cleaning Soap and Water or soft cloth. Dry area free of discoloration completely. and/or bleeding, spray GEMLUX Passivation S o l u t i o n d i r e c t l y onto stainless.
- Page 112 Routine Maintenance MONTEREY BOATS When using the boat in saltwater, the hardware Powder Coated Aluminum should be washed with soap and water after each Powder coated aluminum should be washed peri- use. Frequent cleaning of your of your stainless odically with soap and water to keep it clean. If steel with soap, water and Gemlux Cleaning Wax the boat is used in saltwater or polluted water, the will help maintain the finish.
-
Page 113: Upholstery, Canvas And Enclosures
Routine Maintenance MONTEREY BOATS Chrome Hardware • Do not use glass cleaning sprays, cleaners Use a good chrome cleaner and polish on all containing ammonia, scouring compounds, chrome hardware. or solvents like acetone, alcohol, gasoline, benzene, carbon tetrachloride or lacquer thin- Acrylic Plastic Glass ner. - Page 114 Routine Maintenance MONTEREY BOATS Certain stains may become permanently set un- • Lipstick, grease, oil, eye shadow, shoe less they are removed immediately. The pro- polish – Apply a small quantity of mineral cedure for the removal of more severe staining spirits by means of a cloth with gentle rubbing.
- Page 115 Routine Maintenance MONTEREY BOATS • Liquid spills - Wipe immediately with a clean Use a professional furniture cleaning service when absorbent cloth. Rinse with clean water. an overall soiled condition has been reached. • Food grease and oily stains - Spray im- Marine Exterior Vinyl Upholstery with Pre- mediately using either Fantastik Cleaner Fixx...
- Page 116 Routine Maintenance MONTEREY BOATS CARPET STAIN REMOVAL INSTRUCTIONS Miscellaneous Stains Removal Process Coffee, Tea, Coke, Dye, Fruit Juice, Ice Apply warm water and household detergent Cream, Motor Oil, Clay, Grease, Blood, in minimal amounts to the stained area. Catsup, Chocolate, Milk, Rust, Latex Paint, Sponge or scrape until stain is removed and Water Colors, Berry Stains, Egg, Salad wash thoroughly with clean water.
- Page 117 MONTEREY BOATS Stain Removal lowed to become badly soiled. Dirt, oil, mildew, If a spill does occur, it can easily be removed by and cleaning agents containing ammonia, will following the stain removal chart. All stains should shorten the life of the vinyl that is used for clear be removed as soon as possible, as this enhances curtains.
-
Page 118: Cabin Interior
MONTEREY BOATS Karadon Surfaces CARbON MONOXIDE IS A LETHAL, TOXIC GAS A mild liquid detergent and water or ammonia- THAT IS COLORLESS AND ODORLESS. IT IS A based cleaners will remove most dirt and stains DANGEROUS GAS THAT WILL CAUSE DEATH IN from Karadon. -
Page 119: Drainage System
MONTEREY BOATS 13.5 Drainage System Engines Proper engine maintenance is essential to the It is essential that the following items be done proper performance and reliability of your inboard periodically to maintain proper drainage of your engines. Maintenance schedules and procedures boat: are outlined in your engine owner’s manual. - Page 120 MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
-
Page 121: Seasonal Maintenance
Chapter 14: MONTEREY BOATS SEASONAL MAINTENANCE 14.1 Lay-up and Storage Your dealer or the engine manufacturer can Before Hauling: provide additional information on fuel degrada- • Pump out the head and holding tank. Flush tion and fuel additives recommended for your the holding tank using clean water and a de- engine. - Page 122 Seasonal Maintenance MONTEREY BOATS When supporting the boat with blocking: The bow should always be slightly higher than • Make sure the boat is blocked on a level sur- the stern while lifting the boat. This will allow the face and the bow is high enough so that water water to drain from the engine exhaust system will drain from the bilge, cockpit and exhaust and prevent water from surging over the risers...
-
Page 123: Winterizing
Seasonal Maintenance MONTEREY BOATS • Coat all faucets and exposed electrical compo- The shower drain water sump system must be nents in the cabin and cockpit with a protecting properly winterized. Clean debris from the drain oil. and sump and flush for several minutes with fresh clean water. - Page 124 Seasonal Maintenance MONTEREY BOATS the tank through the deck waste pump out fitting. Special Notes Prior To Winter Storage After the antifreeze has been added to the hold- If the boat will be in outside storage, properly sup- ing tank, open the overboard discharge valve and port a storage cover and secure it over the boat.
-
Page 125: Recommissioning
Seasonal Maintenance MONTEREY BOATS 14.3 Recommissioning • Check the engine mounting bolts to make sure they are tight. DO NOT OPERATE THE bOAT UNLESS IT • Perform all routine maintenance. IS COMPLETELY ASSEMbLED. KEEP ALL fASTENERS TIGHT. KEEP ADJUSTMENTS • Check all hose clamps for tightness. - Page 126 MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
-
Page 127: General Maintenance Schedule And Log
Appendix A: MONTEREY BOATS GENERAL MAINTENANCE SCHEDULE AND LOG MAINTENANCE Clean Hull Below the Waterline Bottom Paint Hull Check Sacrificial Anodes Replace Sacrificial Anodes Wash Boat, Canvas & Hardware Wax Exterior Clean & Protect Hardware Polish & Protect Plastic Glass & Clear Connectors Clean Exterior Upholstery Clean Cabin &... -
Page 128: Maintenance Log
Maintenance Log MONTEREY BOATS Service/Repairs Date Hours Dealer ... - Page 129 Maintenance Log MONTEREY BOATS Service/Repairs Date Hours Dealer ...
- Page 130 Maintenance Log MONTEREY BOATS Service/Repairs Date Hours Dealer ...
-
Page 131: Appendix B: Float Plan
Appendix B: MONTEREY BOATS fLOAT PLAN Monterey Boats recommends filling out a float plan each time you use your boat for an offshore day trip or a long cruise. Leave this information with a responsible person ashore, like a close friend or relative that you know well. - Page 132 MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
- Page 133 Appendix C: MONTEREY BOATS ...
-
Page 134: Boating Accident Report
boating Accident Report MONTEREY BOATS ... - Page 135 MONTEREY BOATS ...
- Page 136 MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
-
Page 137: Glossary Of Terms
Appendix D: MONTEREY BOATS GLOSSARY Of TERMS Boat Hook: Short shaft of wood or metal with a ft: In, near, or toward the stern of a boat. hook fitting at one end shaped to aid in extending one’s reach from the side of the boat. Aground: A boat stuck on the bottom. - Page 138 Glossary of Terms MONTEREY BOATS A vertical piece around the edges of Fend off: To push or hold the boat off from the Coaming: cockpit, hatches, etc. to stop water on deck from dock or another boat. running below. Flying Bridge: A control station above the level of Cockpit: An open space, usually in the aft deck, the deck or cabin.
- Page 139 Glossary of Terms MONTEREY BOATS Marina: A protected facility primarily for recre- nboard: A boat with the engine mounted within ational small craft. the hull of the boat. Also refers to the center of the boat away from the sides. Marine Ways or Railways: Inclined planes at the water’s edge onto which boats are hauled.
- Page 140 Glossary of Terms MONTEREY BOATS Propeller Shaft: Shaft which runs from the back of Sling: A strap which will hold the boat securely the engine gear box, aft, through the stuffing box, while being lifted, lowered, or carried. shaft log, struts, and onto which the propeller is attached.
- Page 141 Glossary of Terms MONTEREY BOATS Transom: A flat stern at right angles to the keel. Watertight Bulkhead: Bulkheads secured so tightly so as not to let water pass. Travel Lift: A machine used at boat yards to hoist boats out of and back into the water. A structure generally parallel to the Wharf: shore.
- Page 142 MONTEREY BOATS THIS PAGE WAS LEFT BLANK INTENTIONALLY ...
-
Page 143: Troubleshooting Guide
Appendix E: MONTEREY BOATS TROUbLESHOOTING GUIDE CAUSE AND SOLUTION PROBLEM CONTROL SYSTEMS Stern drive power steering over steers or • The steering cable housing is bound near the transom. does not respond properly. Free the cable and make sure no cables or wire harnesses are attached to it. - Page 144 Troubleshooting Guide MONTEREY BOATS CAUSE AND SOLUTION PROBLEM PERFORMANCE PROBLEMS Boat is sluggish and has lost speed & RPM. • The outdrive may need to have marine growth cleaned from hull and running gear. • A Propeller may be damaged & need repair. •...
- Page 145 Troubleshooting Guide MONTEREY BOATS PROBLEM CAUSE AND SOLUTION ENGINE PROBLEMS • The engine emergency system has been activated. An engine suddenly will not operate at or The on board computer has sensed a problem and above cruise RPM. has limited the RPM to protect the engine. Find and correct the problem.
- Page 146 Troubleshooting Guide MONTEREY BOATS PROBLEM CAUSE AND SOLUTION ACCESSORY PROBLEMS The air conditioner runs for a short time & • The air conditioner pump sea strainer is clogged. then cuts out. Clean the strainer. • The raw water supply thru-hull valve is closed. Open the valve.
- Page 147 Troubleshooting Guide MONTEREY BOATS PROBLEM CAUSE AND SOLUTION ACCESSORY PROBLEMS Reduction in water flow from the bilge • Impeller screen plugged with debris. Clean screen pump. at the base of the pump. • The discharge hose is pinched or clogged. Check discharge hose and clean or repair.
- Page 148 Troubleshooting Guide MONTEREY BOATS PROBLEM CAUSE AND SOLUTION ACCESSORY PROBLEMS • Electric head breaker is not activated. Turn on Head will not flush. breaker. • There is a vacuum leak at the flush valve or the waste hose. Repair the leak. •...
- Page 149 MONTEREY BOATS ...
- Page 150 MONTEREY BOATS 1579 S.W. 18th Street Williston, FL 32696 Phone 352-529-9181 Fax 352-529-9173 www.montereyboats.com P/N 63102200-02-MANU Rev. 1/2009...
