CONDENSING GAS FURNACE
USERS INFORMATION MANUAL
SINGLE STAGE
CLHS1-050P36N
CLHS1-075P42N
CLHS1-100P48N
CLHS1-125P60N
PLEASE READ THESE INSTRUCTIONS PRIOR TO INITIAL FIRING, OPERATING THE FURNACE, AND
BEFORE PERFORMING ANY MAINTENANCE. THESE INSTRUCTIONS MUST BE LEFT WITH THE
HOMEOWNER AND SHOULD BE RETAINED FOR FUTURE REFERENCE BY THE HOMEOWNER/USER.
MG-1044
ECN 5441-MA 160425
MODELS:
CLHS1-050T36N
CLHS1-075T42N
CLHS1-100T48N
CLHS1-125T60N
THERMO PRODUCTS, LLC.
BOX 217
NORTH JUDSON, IN 46366
PHONE: (574) 896-2133
TWO STAGE
CLHX1-050E36N
CLHX1-075E42N
CLHX1-100E48N
CLHX1-125E60N
MADE IN USA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Thermo Pride CLHS1-050P36N
Summary of Contents for Thermo Pride CLHS1-050P36N

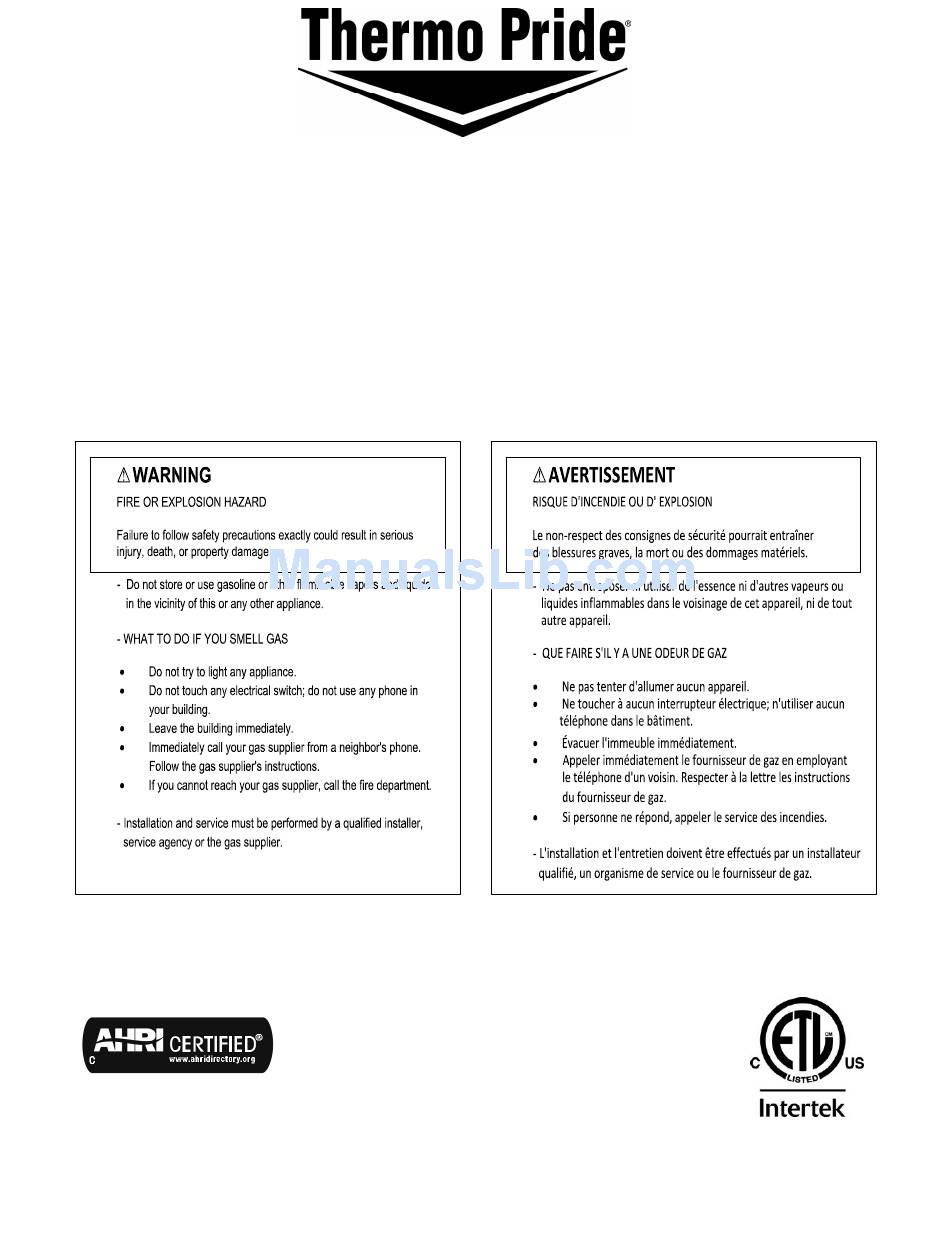

- Page 1 CONDENSING GAS FURNACE USERS INFORMATION MANUAL MODELS: SINGLE STAGE TWO STAGE CLHS1-050P36N CLHS1-050T36N CLHX1-050E36N CLHS1-075P42N CLHS1-075T42N CLHX1-075E42N CLHS1-100P48N CLHS1-100T48N CLHX1-100E48N CLHS1-125P60N CLHS1-125T60N CLHX1-125E60N PLEASE READ THESE INSTRUCTIONS PRIOR TO INITIAL FIRING, OPERATING THE FURNACE, AND BEFORE PERFORMING ANY MAINTENANCE. THESE INSTRUCTIONS MUST BE LEFT WITH THE HOMEOWNER AND SHOULD BE RETAINED FOR FUTURE REFERENCE BY THE HOMEOWNER/USER.
- Page 2 All installations and services must be performed by qualified service personnel. INDEX SECTION BEGINNING PAGE SAFETY INFORMATION GENERAL INSTRUCTIONS III. FURNACE OPERATION A. WARNINGS BEFORE OPERATING B. OPERATING INSTRUCTIONS C. SHUTDOWN PROCEDURE HOMEOWNER/USER MAINTENANCE INSTRUCTIONS (ROUTINE MAINTENANCE) A. ANNUAL INSPECTION B.
-
Page 3: I. Safety Information
I. SAFETY INFORMATION This and the following page contain reproductions of the various warning and instruction labels placed on the Thermo Pride Condensing Gas Furnaces. Please read and comply with the contents of these labels. THIS FURNACE MUST BE INSTALLED SO THERE ARE PROVISIONS FOR VENTILATING AIR. - Page 4 All installations and services must be performed by qualified service personnel. This and the previous page contain reproductions of the various warning and instruction labels placed on the Thermo Pride Condensing Gas Furnaces. Please read and comply with the contents of these labels. FOR YOUR SAFETY WARNING CAUTION...
- Page 5 All installations and services must be performed by qualified service personnel. This and the previous page contain reproductions of the various warning and instruction labels placed on the Thermo Pride Condensing Gas Furnaces. Please read and comply with the contents of these labels. WARNING: If you do not follow these instructions exactly, a ATTENTION ! Si vous ne respectez pas exactement les instructions ci-dessous, un...
- Page 6 All installations and services must be performed by qualified service personnel. This page contains various warnings and cautions found throughout this manual. Please read and comply with the statements below. : IF YOU DO NOT FOLLOW THE SAFETY PRECAUTIONS BELOW AND IN THIS MANUAL, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.
- Page 7 All installations and services must be performed by qualified service personnel. 2. The furnace must be kept free and clear of insulating material. The furnace area should be examined when the furnace is installed or when insulation is added. Insulating materials may be combustible.
-
Page 8: Ii. General Instructions
All installations and services must be performed by qualified service personnel. II. GENERAL INSTRUCTIONS : Property damage, personal injury, or loss of life could result from repair or service of this furnace by anyone other than a qualified heating contractor. Only the routine maintenance described in this manual may be performed by the user. - Page 9 All installations and services must be performed by qualified service personnel. : To avoid injury from moving parts, shut off the power to the furnace before removing blower compartment door. 4. The furnace uses outside air for combustion and ventilation for safe and proper operation. 5.
-
Page 10: Iii. Furnace Operation
All installations and services must be performed by qualified service personnel. III. FURNACE OPERATION A. WARNINGS BEFORE OPERATING : A fire or explosion may result causing property damage, personal injury or loss of life if you do not follow these instructions exactly. A. -
Page 11: C. Shutdown Procedure
All installations and services must be performed by qualified service personnel. Gas Control Valve 5. Move gas control switch to the “OFF” position. 6. Wait five (5) minutes to clear out any gas. If you then smell gas, STOP! Follow Step B in the previous safety information. -
Page 12: A. Annual Inspection
All installations and services must be performed by qualified service personnel. : Shut off the power to the furnace before removing blower compartment door to avoid injury from moving parts. A. ANNUAL INSPECTION The homeowner must have this furnace professionally inspected at the beginning of each heating season by a qualified heating contractor to ensure proper operation. - Page 13 MINIMUM FILTER AREA REQUIRED FILTER TYPE MAX. FILTER AREA FOR HEATING RATED (LENGTH X WIDTH, SQ. IN.) VELOCITY -050 -075 -100 -125 THERMO PRIDE * 600 FT/MIN 176 IN 264 IN 352 IN 440 IN SUPPLIED PERMANENT FILTER STANDARD 500 FT/MIN 211 IN...
-
Page 14: C. Visual Inspection Procedure
All installations and services must be performed by qualified service personnel. C. VISUAL INSPECTION PROCEDURE It is recommended that the homeowner/user conduct the following periodic visual inspection of the furnace at the start of the heating season and monthly during the heating season. : Call a qualified heating contractor to report suspected deficiencies (Do not attempt to make repairs yourself!) 1. - Page 15 All installations and services must be performed by qualified service personnel. 5. Examine the entire furnace, including removing the vestibule door and inspect the control compartment and the furnace for signs of damaged or unusually worn wiring, condensation, sooting or other damage or deterioration. 6.
