Website:
www.sorellefurniture.com

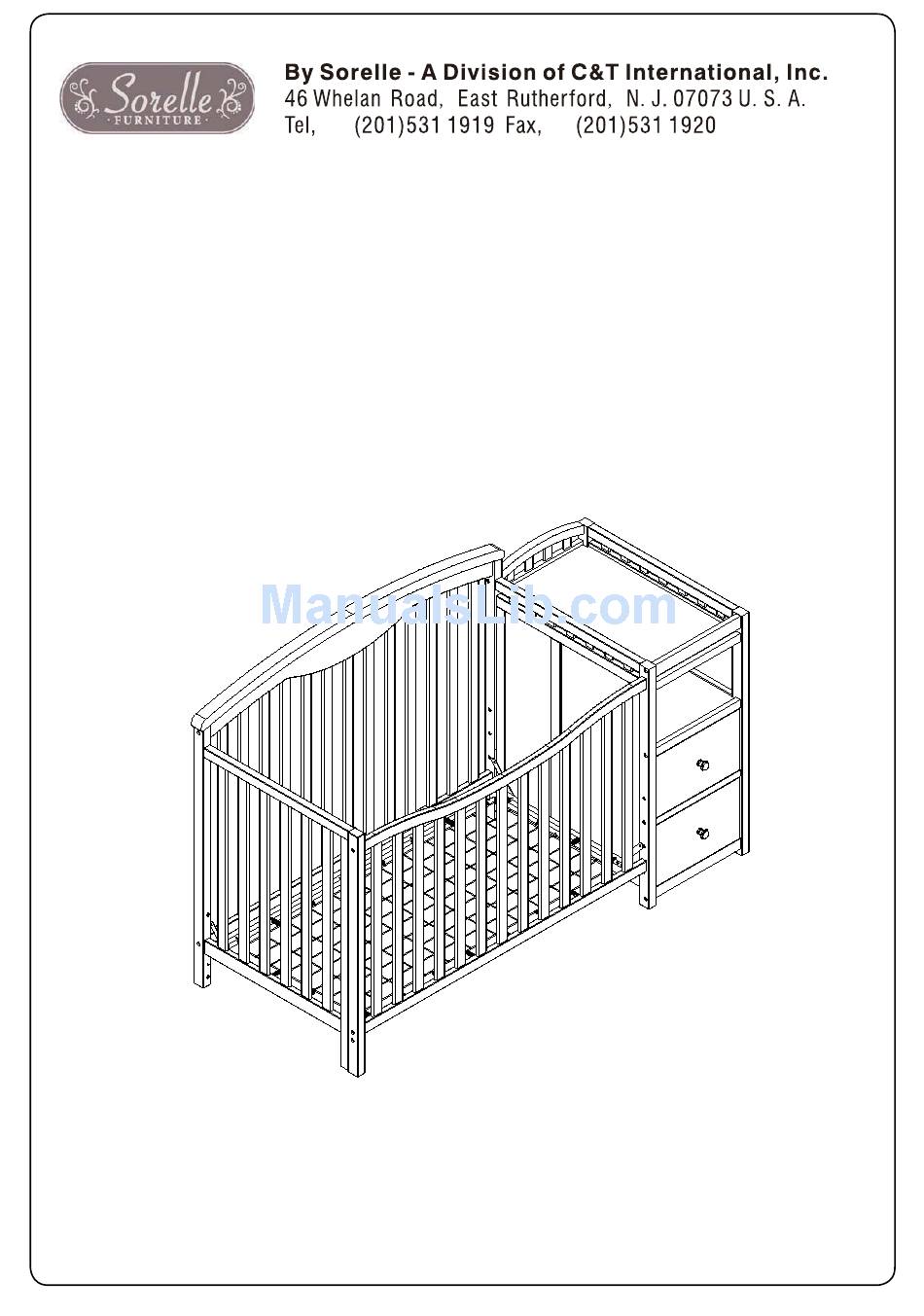

Presley Crib and Changer
Assembly Instruction
Important Information:
Read all instructions BEFORE assembling crib.
KEEP INSTRUTIONS FOR FUTURE USE.
Made in AD, China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Presley Crib and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sorellle Presley Crib

  • Page 1 Website: www.sorellefurniture.com Presley Crib and Changer Assembly Instruction Important Information: Read all instructions BEFORE assembling crib. KEEP INSTRUTIONS FOR FUTURE USE. Made in AD, China...
  • Page 2 SORELLE 1100 Presley Crib and Changer Instruction Sheet Crib Warnings: WARNING: *Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. *Failure to follow these warnings and the assembly instructions could result in serious injury or death.
  • Page 3 SORELLE 1100 Presley Crib and Changer Instruction Sheet Toddler Bed Warnings: WARNING INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT. Openings in and between bed parts can entrap head and neck of a small child. NEVER use bed with children younger than 15 months.
  • Page 4 SORELLE 1100 Presley Crib and Changer Instruction Sheet NOTES ON ASSEMBLY: -During the assembly process whenever using screws or bolts, check each by placing the screw/bolt on the diagram of the item which is drawn actual size and design. Be sure to use the proper size and shape specified in the instructions.
  • Page 5 SORELLE 1100 Presley Crib and Changer Instruction Sheet Assembly Parts (C) Footboard (x1) (A) Left End (x1) (A1) Middle Panel (x1) (B) Headboard (x1) (A2) Right End (x1) (D2) Left- Rear Leg (x1) (D) Left -Front Leg (x1) (E) Middle - Rear Leg (x1)
  • Page 6 SORELLE 1100 Presley Crib and Changer Instruction Sheet Assembly Parts Hardware list M6*17 mm bolts ( 4 pcs) M6* 45mm Bolt （x 23 ） M6*55 mm Bolts ( x5 ) 3.5 * 25 Bolt ( x 16 ) 8*30mm Wooden Dowel （x 14 ）...
  • Page 7 SORELLE 1100 Presley Crib and Changer Instruction Sheet Crib Assembly Attach the Middle- Rear Leg (E) to Middle Panel (A1). As Figure shows. (A1) 8*30mm Wooden Dowel （x 3 ） M6*55 mm Bolts ( x3 ) (H1) (I4) (H2) (H3)
  • Page 8 SORELLE 1100 Presley Crib and Changer Instruction Sheet Crib Assembly ( J1 ) ( I2 ) ( J2 ) ( I ) 8*30mm Wooden Dowel （x 5 ） (A2) M6* 45mm Bolt （x 6 ） Page 8...
  • Page 9 SORELLE 1100 Presley Crib and Changer Instruction Sheet (D2) 8*30mm Wooden Dowel （x 1 ） M6* 45mm Bolt （x 4） M6*55 mm Bolts ( x2 ) M6* 45mm Bolt （x 3 ） Page 9...
  • Page 10 1100 Presley Crib and Changer Instruction Sheet SORELLE Attach completed Mattress Support ( j ) Assembly to crib As Figure Show. NOTE: For infants, set mattress support assembly in an upper position for greater accessibility. As child grows and can stand, mattress support assembly must be lowered.
  • Page 11 SORELLE 1100 Presley Crib and Changer Instruction Sheet Insert Metal Shelf Support ( g ) into holes Middle Panel & Right End As Figure Show. Metal Shelf Support ( x 8 ) Attach two Shelf (J) to changer. As Figure Show.
  • Page 12 SORELLE 1100 Presley Crib and Changer Instruction Sheet Drawer Assembly (K2) 1. Working on a padded fl at surface, attach Drawer (K4) Sides (K3 &K4) to Drawer Back (K2) with Philips Head (K3) Grooves Screw. Figure 1 2. Slide Drawer...
  • Page 13 SORELLE 1100 Presley Crib and Changer Instruction Sheet Insert two (2) drawers into changer. Add changing pad (L) to top of organizer. Important : Tighten all bolts before use your Crib. Changing Pad Assembly Important : If changing pad and safety belt are assembled, make sure warnings are facing up and visible.
  • Page 14 SORELLE 1100 Presley Crib and Changer Instruction Sheet Disassembling Crib For Storage To disassemble crib for storage, follow assembly steps in reverse. Store all parts and hardware together in a safe place. Store the instruction manual in the supplied envelope attached to the mattress support assembly for future reference for re-assembly.
  • Page 15 SORELLE 1100 Presley Crib and Changer Instruction Sheet Fullsize Bed Conversion (Optional) ( 219# Adult Rail System Not included, sold separately) (C) 219# Bed Rail (2 pcs) (E) 219# Mattress Support Bar (4 pcs) Adaptor Adaptor (F) 219# Left (2 pcs)
