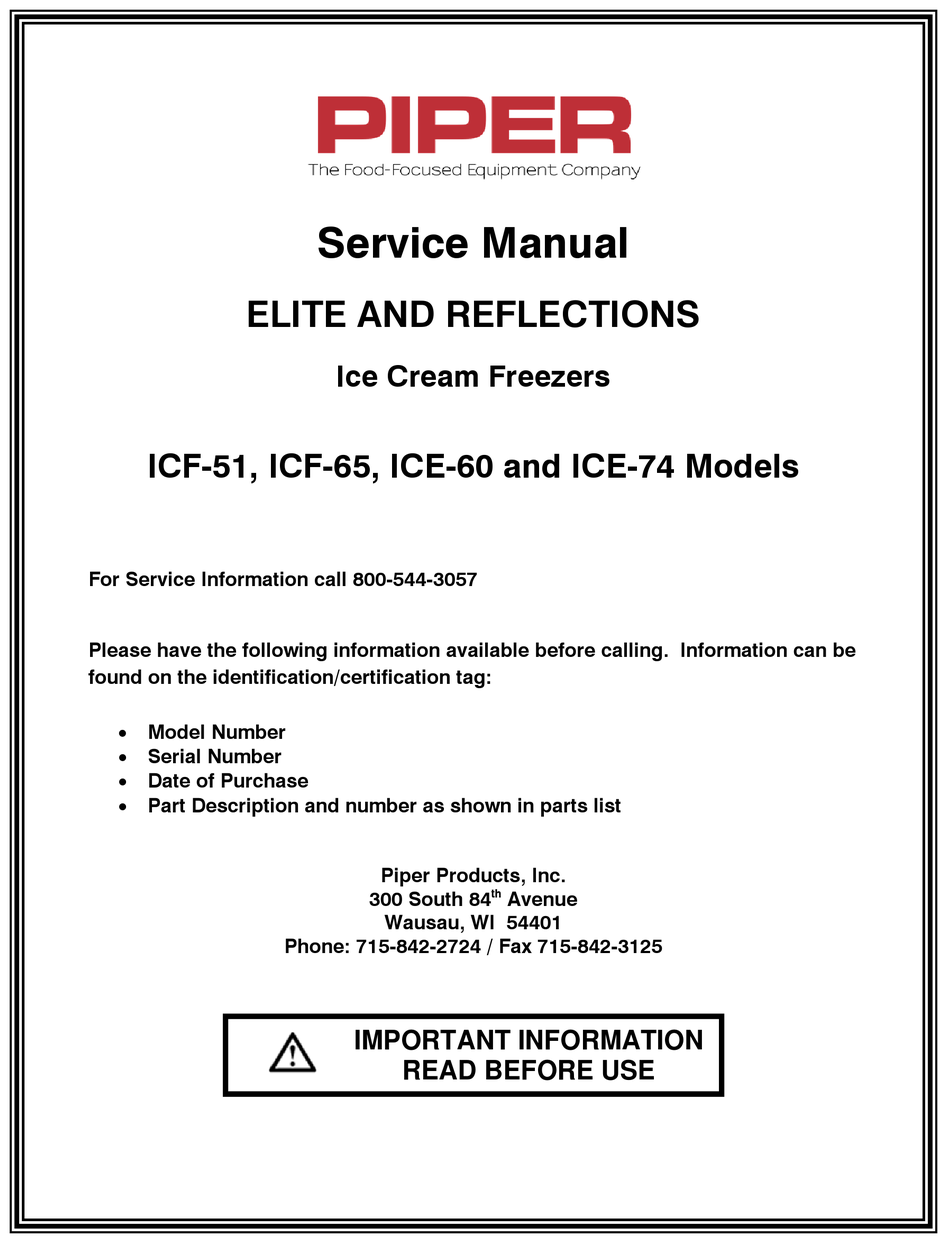

ELITE AND REFLECTIONS
ICF-51, ICF-65, ICE-60 and ICE-74 Models
For Service Information call 800-544-3057
Please have the following information available before calling. Information can be
found on the identification/certification tag:
Model Number
Serial Number
Date of Purchase
Part Description and number as shown in parts list
Service Manual
Ice Cream Freezers
Piper Products, Inc.
300 South 84
Wausau, WI 54401
Phone: 715-842-2724 / Fax 715-842-3125
IMPORTANT INFORMATION
READ BEFORE USE
th
Avenue
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Piper ICF-51
- Page 1 Service Manual ELITE AND REFLECTIONS Ice Cream Freezers ICF-51, ICF-65, ICE-60 and ICE-74 Models For Service Information call 800-544-3057 Please have the following information available before calling. Information can be found on the identification/certification tag: Model Number Serial Number ...
-
Page 2: Table Of Contents
INSTALLATION .........................4 START-UP AND OPERATION ....................5 THEORY OF OPERATION ......................5 THERMOSTAT SETTINGS .......................6 MAINTENANCE .........................8 STAINLESS STEEL AND GENERAL CLEANING ..............9 TROUBLESHOOTING GUIDE ....................10 CM EXPLODED VIEW ......................10 R-CM EXPLODED VIEW ......................12 WIRING DIAGRAM ........................11 PIPER PRODUCTS, INC. LIMITED WARRANTY ..............14... -
Page 3: Introduction
Service is available through Authorized Piper Products Parts and Service Distributors throughout the United States. For a complete listing of these call or write Piper Products, Inc. for the name of the nearest distributor. This equipment is intended for commercial use only. Not for household use. -
Page 4: Installation
INSTALLATION ELECTRICAL CONNECTION WARNING!!!! DO NOT USE EXTENSION CORDS (VOIDS WARRANTY) Ground: The electrical outlet must be provided with an efficient ground, and the voltage and the frequency of the electrical line matches those indicated on the data plate. If unsure about the efficiency of the ground, have your electrical circuit checked by a qualified technician Supply Voltage : When the cooler is operating, check that the supply voltage is not dropping or... -
Page 5: Start-Up And Operation
START-UP AND OPERATION OPERATING THE COOLER Before Operating the Cooler Ensure that the electrical outlet is connected effectively to earth (ground), suitable to provide the voltage indicated on the data plate. Ensure proper air flow to the front rear and sides. ... -
Page 6: Thermostat Settings
THERMOSTAT SETTINGS The thermostat has a preset temperature of 0° Fahrenheit with a 4° differential from the factory. To display target set point. In programming mode it selects a parameter or confirms an operation. To start manual defrost. In programming mode it browses the parameter codes or increases the displayed value. - Page 7 HOW TO SEE THE SET POINT 1. Push and immediately release the SET key. The set point will be shown. 2. Push and immediately release the SET key or wait about 5 seconds to return to normal visualization. HOW TO CHANGE THE SETPOINT 1.
-
Page 8: Maintenance
These may cause corrosion and/or damage to the stainless steel. Piper only approves soap and water for cleaning stainless steel. Do not allow water to stand in wells for long periods of time. Well must be emptied and cleaned after every serving period. -
Page 9: Stainless Steel And General Cleaning
STAINLESS STEEL AND GENERAL CLEANING Stainless Steel and Aluminum: Piper only approves soap and water for cleaning stainless steel. NOTICE: Do NOT use chlorinated cleaners. General Surfaces, Fiberglass: Clean surfaces with a soft cloth or sponge utilizing a mild detergent. Rinse completely with warm water and then dry. -
Page 10: Troubleshooting Guide
Were pans of food placed into the unit at or below Food Temperature 0˚F? Thermostat Control Is the thermostat control set properly? Voltage Call a service technician. Call Piper Products directly at 800-544-3057 if you need further assistance. - Page 11 ICF EXPLODED VIEW ITEM PART NO. DESCRIPTION 0111877 SJTOW 14/3 WIRE AC POWER CORD 0331350 SWITCH: TA201-TB-B ON/OFF TAB 0189500 INDICATOR LIGHT 0112234 MOTOR – 1/70HP 1500RPM 120V CW 0114523 BLOWER – WHEEL 6.06ODX1.03W ALUM 0114515 CONDENSER: ½ HP LO TEMP R507 706420 PROBE –...
-
Page 12: R-Cm Exploded View
ICE EXPLODED VIEW ITEM PART NO. DESCRIPTION 0111877 SJTOW 14/3 WIRE AC POWER CORD 0331350 SWITCH: TA201-TB-B ON/OFF TAB 0189500 INDICATOR LIGHT 0112234 MOTOR – 1/70HP 1500RPM 120V CW 0114523 BLOWER – WHEEL 6.06ODX1.03W ALUM 0114515 CONDENSER: ½ HP LO TEMP R507 706420 PROBE –... -
Page 13: Wiring Diagram
WIRING DIAGRAM 120 VOLT AC 5.0 AMPS 600 WATTS... -
Page 14: Piper Products, Inc. Limited Warranty
No representative, dealer, distributor or any other person is authorized or permitted to make any other warranty or obligate Piper Products, Inc. to any liability not strictly in accordance with this policy. This warranty is in lieu of all other warranties expressed or implied, including any warranty of merchantability, and fitness for a particular purpose. Piper Products does hereby exclude and shall not be liable to purchaser for any consequential or incidental damages including but not limited to damages to property, damages for loss of use, loss of time, loss of profits or income, resulting from any breach of warranty. - Page 15 NOTES...
- Page 16 300 South 84 Avenue Wausau, WI 54401 Phone: 715-842-2724 / Fax 715-842-3125...
