G-BOX
OPERATING MANUAL
USB
PWR
DATA
GHOSTDRONE 2.0 created by EHang, Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the G-BOX and is the answer not in the manual?

Questions and answers

Summary of Contents for ehang G-BOX

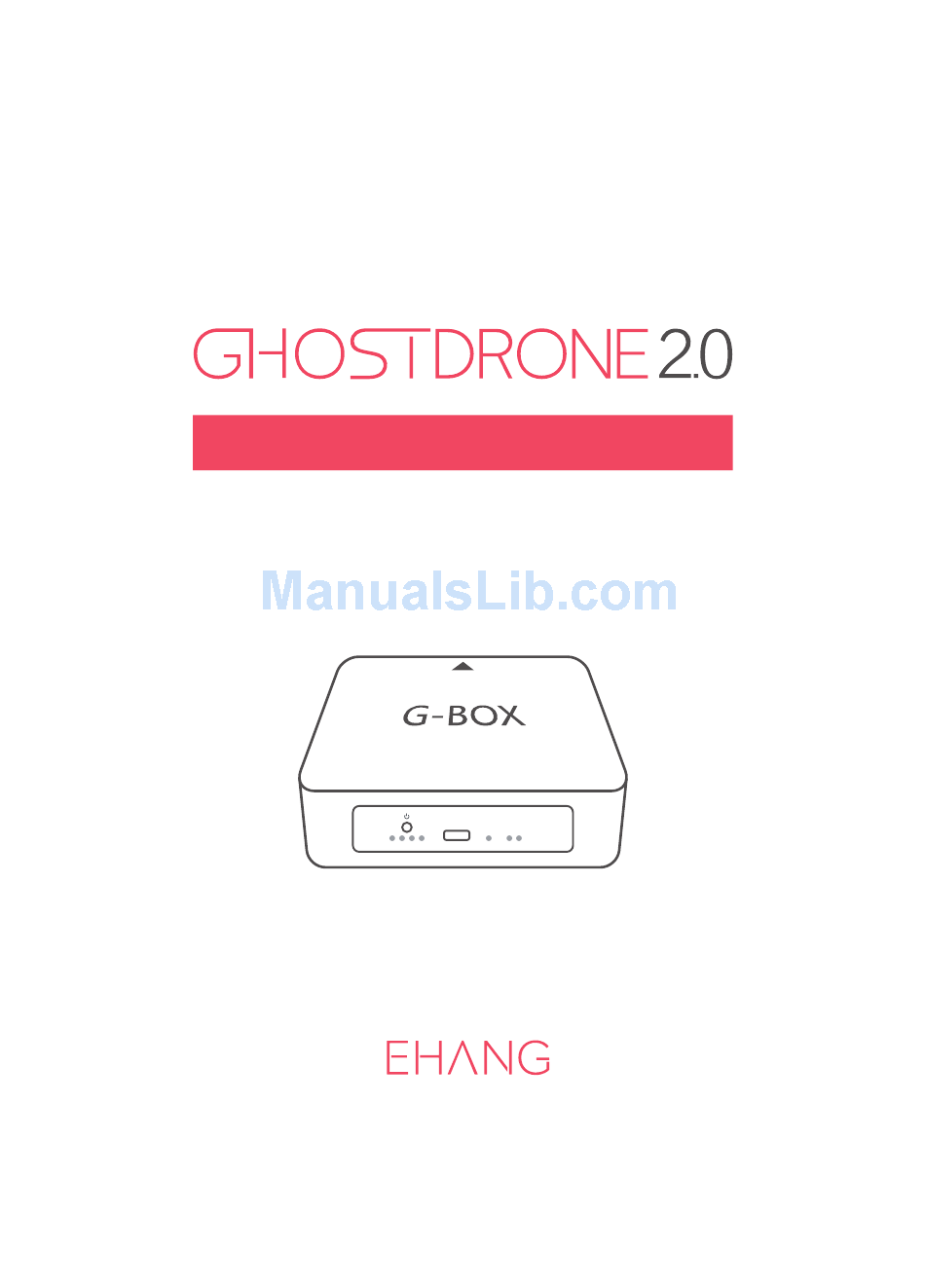

  • Page 1 G-BOX OPERATING MANUAL DATA GHOSTDRONE 2.0 created by EHang, Inc.
  • Page 2 EHang shall not bear any liability or responsibility of the damage of the G-BOX, the copter or any other related accessories or the accidents arised from improper use.
  • Page 3 Each GHOSTDRONE is paired with one G-BOX. The App cannot operate the GHOSTDRONE without a G-BOX. Please store the G-BOX appropriately. If G-BOX is missing, it will be necessary to replace a new G-BOX unit. G-BOX USB Cable...
  • Page 4 ■Structural Diagram Main Antenna Direction Andriod Charging Port Power Indicator Switch DATA iOS Android Charge/Battery Life Indicator Power Indicator...
  • Page 5 ■Using the G-BOX Press the power button once. After the G-BOX turns on, the battery indicator, PWR and DATA indicators will turn on. Power On After several seconds the battery indicators turns off to save battery. Hold the power button until the PWR indicator Power Off turns off.
  • Page 6 DATA Switch/Charging/Battery Life Indicator Charging G-BOX (with power adapter) Note: You can charge the G-BOX by connecting it to a PC with a USB cable. When charging through a USB adapter, the required input current is 500 mA or higher.
  • Page 7 ③ ④ ① Switch to iOS/Android; ① Turn on G-BOX; ② Communication indicator shows the status; ③ W h e n G - B O X c o n n e c t s w i t h m o b i l e p h o n e / t a b l e t ④...

  • Page 8: Specifications

    ■Important Tip Keep the G-BOX within your 3 meter’ s radius during flight (We suggest keeping it in hand). If the G-BOX is not near you, you may lose connection with the GHOSTDRONE. Best communication can be acquired when G-BOX’ s main antenna is pointing to the GHOSTDRONE.
  • Page 9 But limited warranty is still provided. ■Contact Us Business Hour: Monday – Friday 9:00 A.M – 5:00 P.M (PST) Customer Service Phone: +1 650-533-8554 / 888-800-7056 Customer Service Email: support@ehang.com EHang, Inc. reserves all right to interpret this warranty.
