Summary of Contents for Sierra wave 9690

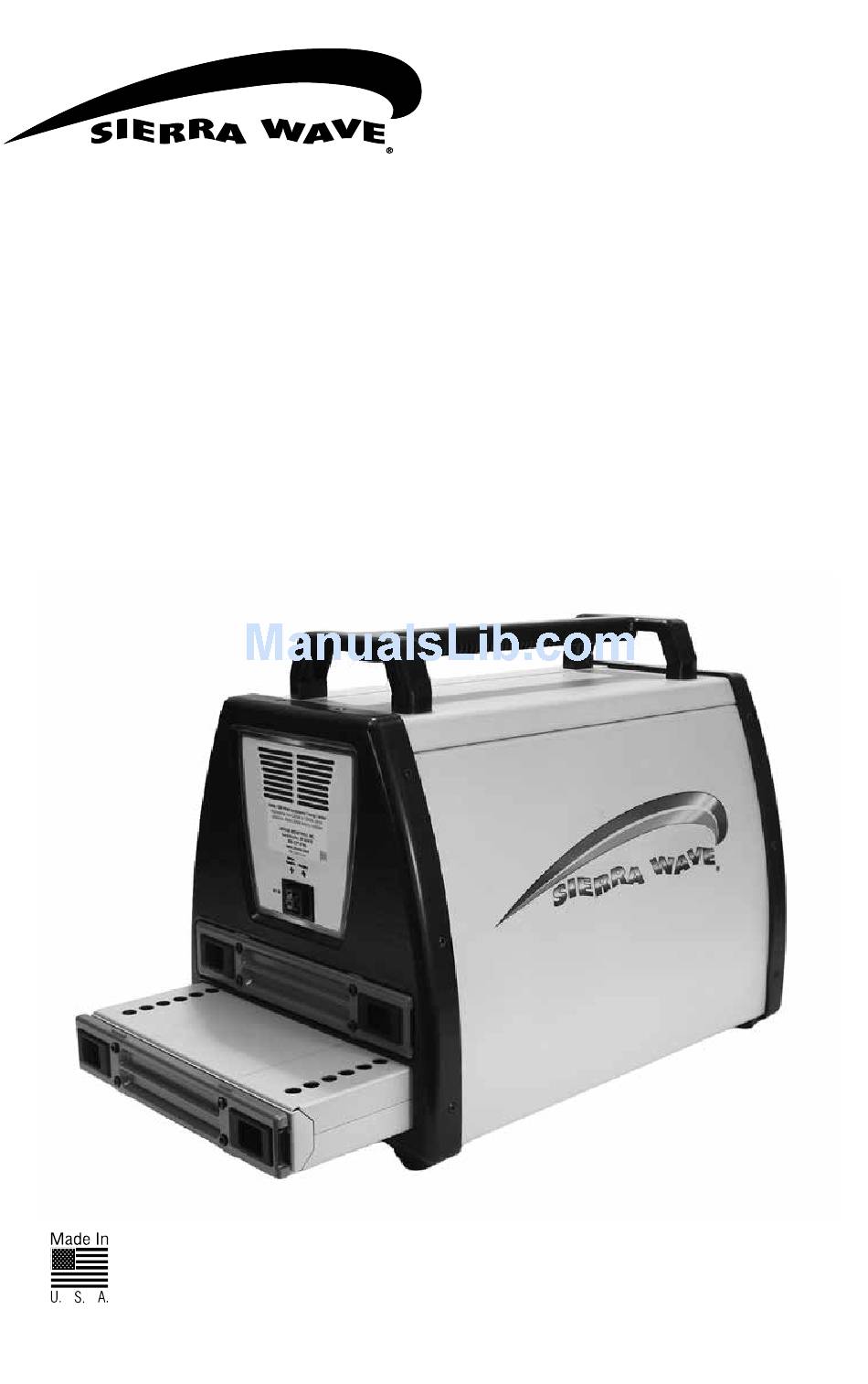

- Page 1 #9690 Incremental 1500-Watt Energy Center #9691 500W Battery Pack OPERATING INSTRUCTIONS Shown with one #9691 500W Battery Pack Patent Pending...
- Page 2 1500Wh capacity incrementally, and increasable as energy needs increase. Start with the #9690 unit, which includes a 500Wh internal battery and add up to two more 500Wh battery packs (#9691 sold separately) as needed. The Energy Center features a pure sine wave AC inverter and a lightweight LiFePO4 (lithium iron phosphate) battery.
-
Page 3: Fcc Requirements
WARNING: The #9690 Incremental 1500-Watt Energy Center and #9691 500-Watt Battery Pack are only serviceable by Aervoe Industries, Inc. or an authorized repair facility. Do not dismantle. Warranty is void if the device is opened by any unauthorized personnel. Call Aervoe Industries, Inc. -
Page 4: Parts Identification
PARTS IDENTIFICATION AC Power Switch Aux Battery #1 Meter Aux Battery #2 Meter Main Battery Meter USB Power Ports 12V DC Outputs DC Power Switch 12V Fuses Main Power Key 120V AC Outputs... - Page 5 Inverter Exhaust Fan Solar Charge Indicators DC IN AUX Battery #1 Slot AUX Battery #2 Slot...
- Page 6 Battery Packs charged and ready to go you can avoid disruption in service. AC Charging: (included) The optimum method of charging the #9690 Energy Center and any installed #9691 Battery Packs. Turn the MAIN POWER KEY counter-clockwise to OFF.
- Page 7 Keep the battery compartment cover because it will be replaced when the battery is removed. Slide a #9691 Battery Pack into the opening with the Sierra Wave logo facing up and the power connectors going in first. Full connection will be made when the latches click into place.
-
Page 8: Power Specifications
CAUTION: The 120V AC operation can safely power common AC appliances and devices with a maximum power output of 120V AC/10A or 1200 watt continuous power (based on #9690 Energy center with 2-#9691 Battery Packs = 1500Wh capacity). It is the user’s responsibility to verify that the device you wish to operate does not exceed the power specifications listed below to prevent inverter overload and damage to the Energy Center or your device. -
Page 9: Troubleshooting
USB 5V/2A DC Output The USB operation can operate devices using a standard USB connection and up to 5V/2.5A per port. Turn the MAIN POWER KEY and DC POWER SWITCH on. Plug in your USB device to either of the USB POWER PORTS and operate as normal. Disconnect the device and turn off the DC POWER SWITCH when not in use. -
Page 10: Care And Maintenance
CARE AND MAINTENANCE • Charge and use routinely as described above • Dust regularly with a clean dry cloth to prevent dust and dirt from building up on the vents and power inputs/outputs. Do not use water, detergents, or other chemicals to clean the unit •... -
Page 11: Charge Time
CHARGE TIME Times vary depending on battery state and available sunshine during solar charging #9690 Unit with #9690 + 1 #9691 #9690 + 2 #9691 500Wh built-in battery 500Wh Battery Pack 500Wh Battery Packs 120V AC/10A Charger 5 hours 10 hours... - Page 12 AERVOE INDUSTRIES, INC. Gardnerville, NV 89410 • 1-800-227-0196 www.aervoe.com • mailbox@aervoe.com 9690inst; cs05/16...
