SoundOFF ETSA380MF Installation Instruction

WARNING
: Warning devices are strictly
regulated and governed by Federal, State
and Municipal ordinances. These devices
shall be used ONLY on approved vehicles.
It is the sole responsibility of the user of
these devices to ensure compliance.
!
WARNING
Sirens produce loud sounds that
may damage hearing:
- Roll up windows.
- Wear hearing protection.
- Use only for emergency response.
- Avoid exposure to siren sound
outside of vehicle.
IMPORTANT NOTICE TO INSTALLER:
and understand all instructions and warnings before proceeding with the
installation of this product. Ensure the manual and all warning cards are
delivered to the end user of this equipment.

Introduction

The ETSA380MF is Multi-Function Siren Amplifier designed for single or
dual 100 Watt speaker use. The siren comes standard with a
noise-cancelling microphone for PA use. The amplifier box contains a
single amplifier capable of supplying sound to a single 100 Watt speaker.
The ETSA380MF also includes a 4 position slide switch and 8
independently controlled accessory switches each capable of supplying
10-20 amps.
The primary operating modes are User Selectable tone, Yelp, Wail, Radio,
PA, Horn Override, and a push-button Manual Override are available in all
modes. All tones except Wail and Yelp for California Title 13 compliance
may be disabled by programming the siren.
380 SERIES SIREN
ETSA380MF
Sirens provide an essential function of an effective audio / visual warning
system. However, sirens are only short range secondary devices. The use
of a siren does not insure that all drivers can or will abide by or react to an
emergency warning signal, especially at high rates of speeds or long
distances. The operator of the vehicle must never take the right of way for
granted and it is the operator's responsibility to proceed safely.
Make sure to read
The effectiveness of this siren system is highly dependant on the correct
mounting and wiring. The installer must read and follow the manufacturer's
installation instructions and warnings in the manual. The vehicle operator
should verify the siren system is securely fastened to the vehicle and
properly functioning.
Effective sirens generate loud sound pressure levels that can potentially
cause hearing damage. Installers and those around the vehicle need to be
aware of the dangers and wear hearing protection whenever the siren
system is operating. Vehicle operators and occupants should assess their
exposure to siren noise and determine what steps need to be taken to
prevent hearing damage.
The siren system is intended for use by authorized personnel only. It is the
user's responsibility to ensure they understand and operate the emergency
warning devices in compliance with all applicable city, state, and federal
laws and regulations. SoundOff Signal assumes no liability for any loss
resulting from the use of the siren system.

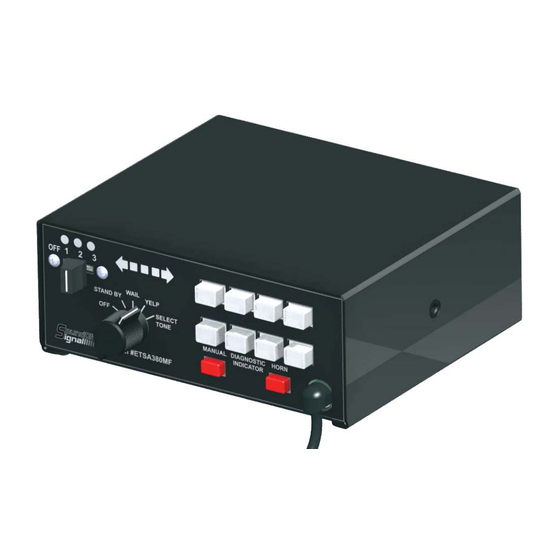

ETSA380MF SHOWN

Package Contents:

1 ea. Amplifier Box with Microphone
1 ea. Microphone Bracket w/ Mounting Hardware
4 ea. Amplifier Wire Harnesses with Connectors (2-12 Pin and 1-5 Pin)
1 ea. Instruction Manual
1 ea. Operators Warning Card to remain in vehicle for operator review
1 ea. Sound Pressure Warning Label that is to be attached in vehicle
and in plain site of operator and occupants of the vehicle
1 ea. Mounting Bracket with Hardware
1 ea. Label Card for Aux. Switches
Wire capacity requirements for siren amplifier
0-10 Feet:
10-20 Feet:
20-30 Feet:
30+ Feet:
14 AWG
12 AWG
10 AWG
Consult Factory to determine requirements
ETSA380MF 2/08
