Summary of Contents for Abstract Data ADE-20

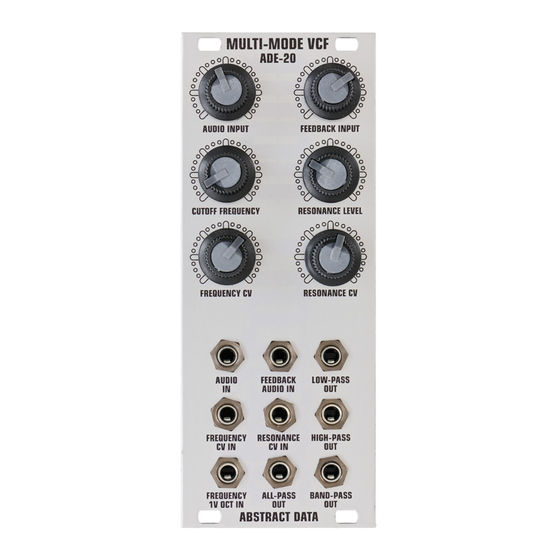

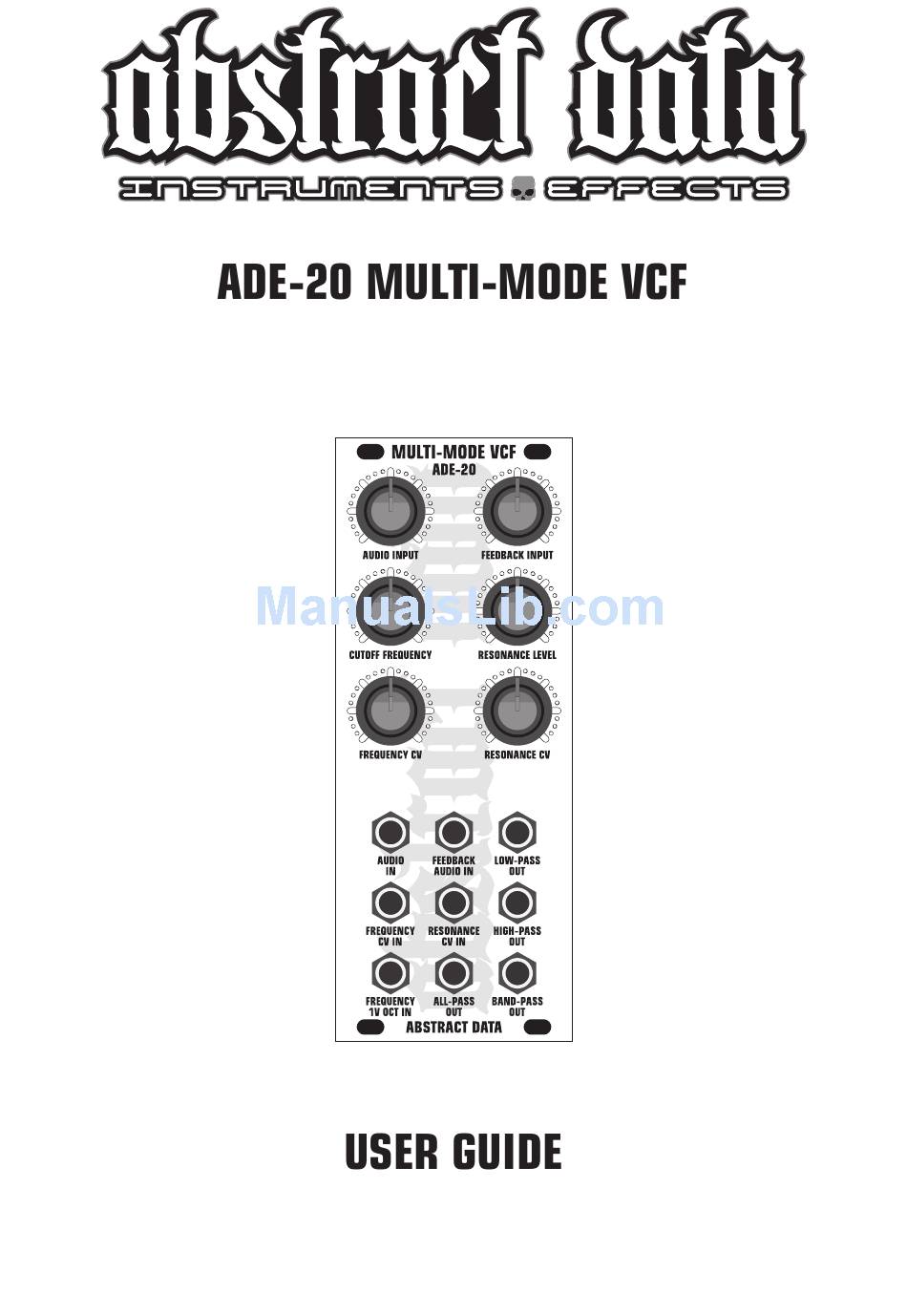

- Page 1 2 Pole, 12dB, Multi-Mode, Voltage Controlled Filter with Simultaneous Low, High, Band and All-Pass Outputs and complete CV control © 2012 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz Version 1.1 December 2012...
- Page 2 AC-coupled High-Pass filter Output BAND-PASS OUT: AC-coupled Band-Pass filter Output ALL-PASS OUT: AC-coupled All-Pass filter Output MOUNTING HOLES: Accepts M2.5 or M3 screws in Doepfer or Analogue Systems spacing width © 2012 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz Version 1.1 December 2012...
- Page 3 The RED stripe on the supplied power cable connects to the NEGATIVE (-12V) rail on the ADE-20 with the RED stripe facing DOWN. This is marked on the back of the ADE-20 PCB as “-12 RED”...
- Page 4 The rear panel of the ADE-20 has exposed parts and connections. Please ensure when handling the ADE-20 that the unit is held by the sides of the front panel or the sides of the PCB.
