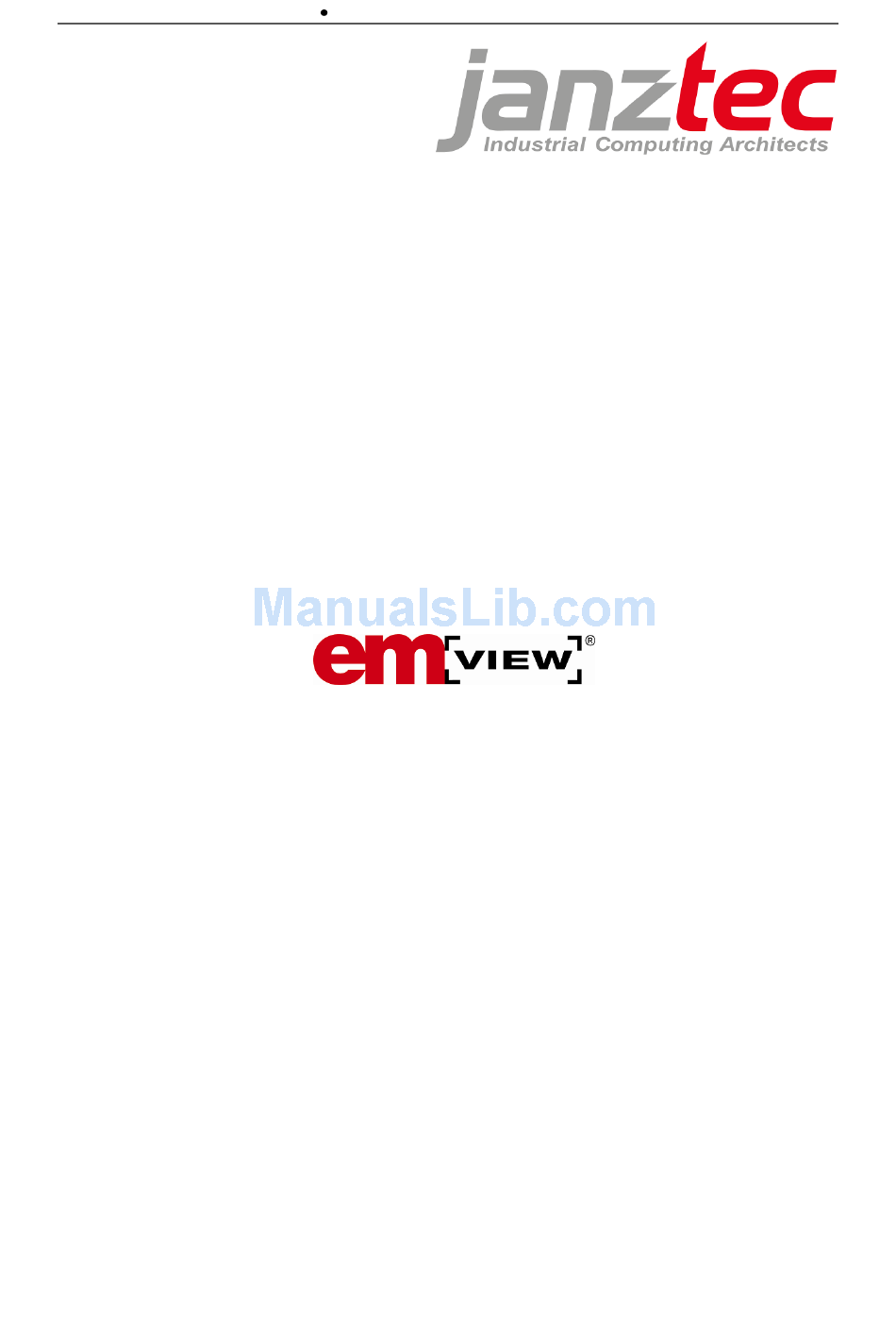

emVIEW-12T/D (User's Manual)
All rights reserved by Janz Tec AG.
No parts of this technical manual may be modified, copied or reproduced
in any form or by any means for commercial use without the prior written
permission of Janz Tec AG, Germany.
All instructions, information and specification contained in this manual
are for reference only and remain subject to change without
announcement.
Rev. 1.3
Introduction
PROPRIETARY NOTICE
emVIEW-12T/D
Human machine interface system
(User's Manual)
Version 1.3
Preliminary
Refers to product revision
V 1.5
1 - 1
© Janz Tec AG
Advertisement
Table of Contents
Related Manuals for Janz Tec emVIEW-12T/D
Summary of Contents for Janz Tec emVIEW-12T/D
- Page 1 Introduction 1 - 1 PROPRIETARY NOTICE All rights reserved by Janz Tec AG. No parts of this technical manual may be modified, copied or reproduced in any form or by any means for commercial use without the prior written permission of Janz Tec AG, Germany.
-
Page 2: Figure 1: Emview-12T/D Front View
File: J:\AS\Entwicklung\Projekte\HW\emPC\emView\12_Zoll\emVIEW_abgesetzt\doc\ma nual_emview_12td.doc Pattern: j:\as\entwicklung\formulare\entwicklung (ew)\ew_manual.dot Created: ime, 07.01.2009 Last Update: ime, 05.03.2013 figure 1: emVIEW-12T/D front view © Janz Tec AG 2009 - 2013 Tel.: +49-5251-1550-0 FAX: +49-5251-1550-190 email: support@janztec.com Internet: www.janztec.com © Janz Tec AG Rev. 1.3... -
Page 3: Table Of Contents
(User's Manual) Introduction 1 - 3 Contents Introduction Features ..........................6 Functional Overview ......................6 Safety Instructions Installation and Maintenance ....................8 Ambient and Environmental Conditions ................8 Installation Dimensions and mounting information ................9 Technical specification .......................11 3.2.1 DC main power supply ....................11... - Page 4 13: DVI quick settings ........................21 About this Manual This is the hardware manual for the emVIEW-12T/D. It gives all necessary information to users and programmers of the emVIEW-12T/D. We have tried to keep it compact, so there are no special sections for users and programmers.
- Page 5 (User's Manual) Introduction 1 - 5 Conventions If numbers are specified in this manual, they will be either decimal or hexadecimal. We use C-notation to identify hexadecimal numbers (the 0x prefix). If we refer to low active signal names, they will suffixed by a “#” character.
-
Page 6: Introduction
RS232 port and USB port. If the USB port is used, the serial port is deactivated. The power must be supplied by an external power supply. This power supply must be capable to provide enough power for the emVIEW-12T/D. Please refer to the technical specifications section for more information. © Janz Tec AG... -
Page 7: Figure 2: Emview-12T/D Side View
(User's Manual) Introduction 1 - 7 figure 2: emVIEW-12T/D side view Rev. 1.3 © Janz Tec AG... -
Page 8: Safety Instructions
2 - 8 emVIEW-12T/D (User's Manual) Safety Instructions Safety Instructions Refer to page 5 for explanation of the warning notice system. The product described in this documentation may be operated only by personnel qualified for the specific task in accordance with the relevant documentation for the specific task, in particular its warning notices and safety instructions. -
Page 9: Installation
When opening the shipping package of the emVIEW-12T/D, the contents of the package should be checked immediately. The emVIEW-12T/D is delivered in a configured state, but the configurations can be adjusted by the user as well. To adjust the emVIEW-12T/Ds configuration, an OSD (On Screen Display) is installed and controllable by buttons at the backside. -
Page 10: Figure 4: Emview-12T/D Cut-Out And Holes
320 mm 312 mm 211 mm 109 mm 8 mm 10 mm 300 mm Hole for M5 screws *† figure 4: emVIEW-12T/D cut-out and holes Not true to scale † Refers to drawing drill_jig_emv12_rev1 © Janz Tec AG Rev. 1.3... -
Page 11: Technical Specification
The Power unit (figure 5) is energizing all internal components, the display and its backlight. Thereby the power supply can vary in between 14 to 32 VDC. The emVIEW-12T/D has a power dissipation with less than 9 W. Before connecting the DC main power supply the protective bonding conductor (PE) must be connected. -
Page 12: Serial Interface - Rs232
4: SUB-D 9 Pin assignment The emVIEW-12T/D provides a ring indicator (RI) signal for waking up the host PC. To use this feature the host must provide ‘Wake On Ring’ (also ‘PowerUp on Modem’) and this option must be activated in the BIOS. -
Page 13: Display
(User's Manual) Installation 3 - 13 3.2.6 Display The panel is built as a thin film transistor liquid crystal display TFT-LCD with a diagonal screen of 12.1’’ and up to 16M colours. Description Specification Display area 246.0 x 184.5 mm... - Page 14 3 - 14 emVIEW-12T/D (User's Manual) Installation The license agreement must be confirmed. The location where the driver will be installed to must be chosen. © Janz Tec AG Rev. 1.3...
- Page 15 (User's Manual) Installation 3 - 15 After choosing the location the driver will be installed and the device is searched. Is the device found the installation is finished by clicking Finish. Rev. 1.3 © Janz Tec AG...
-
Page 16: Ubuntu Linux Driver Installation For Touch-Screen On Rs232 Or Usb
3 - 16 emVIEW-12T/D (User's Manual) Installation 3.3.2 Ubuntu Linux driver installation for touch-screen on RS232 or USB Download the correct driver for the installed OS. In this section the installation on an Ubuntu 8.04 is shown. Once the driver is downloaded (Ubuntu 8.04 Driver 2.2) the archive has to be unzipped somewhere with: gunzip “... -
Page 17: Use Of Emview-12T/D
(User's Manual) Use of emVIEW-12T/D 4 - 17 Use of emVIEW-12T/D Once the emVIEW is installed it can be used at once, it is already configured. The user is free to adjust the configuration at will. To do so, the installed on screen display (OSD) must be used. -
Page 18: Calibrating The Touch-Screen On Ubuntu 8.04
4 - 18 emVIEW-12T/D (User's Manual) Use of emVIEW-12T/D On this window the settings for ‘Device 0’ are accessible. As seen in figure 8 there are three tabs to configure the touch-screen. The first is for calibrating the device, the second shows settings like ‘touch-mode’, ‘cursor stabilization’... - Page 19 (User's Manual) Use of emVIEW-12T/D 4 - 19 The calibration screen is looking like that. The calibration is finished by clicking the red squares. Rev. 1.3 © Janz Tec AG...
-
Page 20: Adjusting The Display
Use of emVIEW-12T/D Adjusting the display On the backside of the emVIEW-12T/D there are five buttons. The first button is On/Off, it controls the backlight and display controller. The serial interface and the USB interface are kept alive. Second is the OSD button, it activates the OSD menu. -
Page 21: Using The Quick Settings
(User's Manual) Use of emVIEW-12T/D 4 - 21 Color settings menu Wizard Auto adjusts the colours. Color temperatur Different colour temperature profiles. Exit To exit this menu. table 9: Color settings menu Image settings menu Wizard Auto adjusts the position of the Image. -
Page 22: Technical Data
5 - 22 emVIEW-12T/D (User's Manual) Technical Data Technical Data Interfaces The USB port is for connecting the touch screen with a computer system. Thereby the serial port is tunnelled through USB virtual COM port. Serial Port The serial port connects the touch controller with a computer system. -
Page 23: Product History
(User's Manual) Product History 6 - 23 Product History Note that changes in the major version number are related to a PCB redesign. Though, PCB redesign need not be related to functional changes, but might have been done for manufacturing purposes only.
