Summary of Contents for IONTO-COMED IONTO-COMFORT XTENSION BED 8460

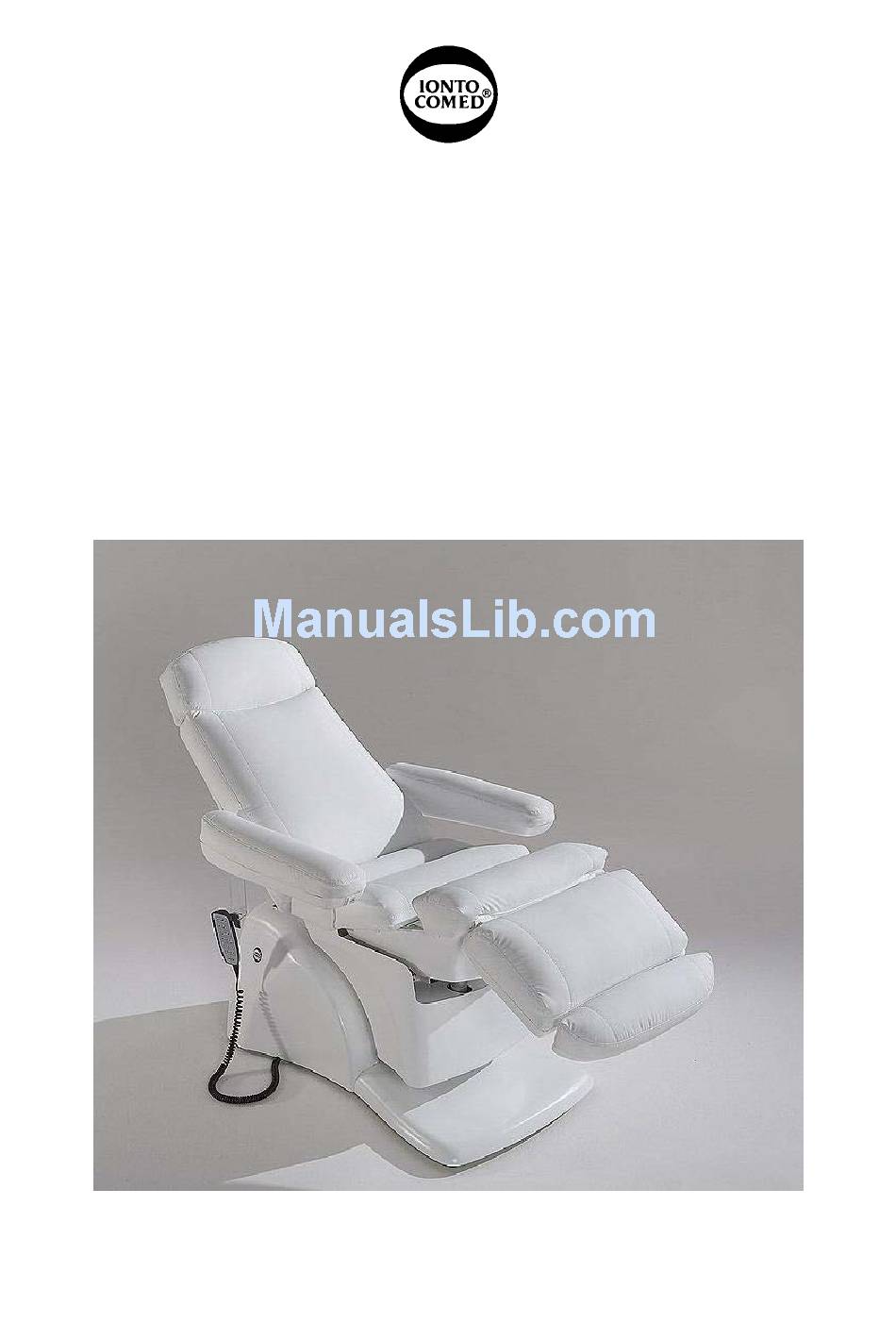

- Page 1 IONTO-COMED INSTRUCTION MANUAL IONTO-COMFORT XTENSION BED Art. No. 8460...
-
Page 2: Table Of Contents
Accessories .......................13 This instruction manual contains information intended to ensure safe operation of the treatment bed. Always keep it in close proximity where it is readily available for every user. © IONTO-COMED 2010 IONTO-COMED GmbH Durlacher Allee 109 D-76137 Karlsruhe... -
Page 3: Safety Instructions
In the event of any liquid or foreign body entering the inner of the control unit, immediately disconnect the bed from the mains power supply! Please consult our customer service department before using again. Always isolate from the mains power supply by disconnecting the mains plug before cleaning! © by IONTO-COMED... -
Page 4: Fields Of Use
Furthermore two casters enable an easy movement of the bed. The treatment bed IONTO-COMFORT XTENSION can be used for all types of facial, body, footcare and massage treatments. © by IONTO-COMED... -
Page 5: Control Elements And Connections
(9) Backrest adjustment (15) ON/OFF Switch for Seat Heating (ON) (10) Seat angle adjustment (16) Increase Heating Temperature (+) (11) Legrest adjustment (17) Lower Heating Temperature (-) (12) Seat height adjustment (13) Program keys 1-3 (14) Memory key S © by IONTO-COMED... -
Page 6: Installation
Raise armrests: Lift the armrest. Fold the armrests back forward again. 2. Headrest adjustment: The head rest (1) is removable and can be tilted to the front or back. Pull the headrest up vertically to the desired position. © by IONTO-COMED... -
Page 7: Save Treatment Position (Ionto-Comfort Xtension 4S Only)
A new treatment position can replace a previously saved position. 2. Call-up a saved treatment position: Press the required program key 1, 2 or 3 (13). Hold the key down until the bed has reached the programmed position. © by IONTO-COMED... -
Page 8: Set Upholstery Heating (Optional)
The upholstery heating can be switched ON again directly. 2. Switch the upholstery heating off: Press the ON key (15) to switch the upholstery heating off. 3. Switch the treatment bed off: Remove the mains power plug from the mains socket. © by IONTO-COMED... -
Page 9: Operation Ionto-Comfort Xtension 5S (5-Motors)
Press the left key in the 3rd row (10) on the manual control to tilt the seat angle backwards. Press the right key in the 3rd row on the manual control (10) to tilt the seat angle forward. © by IONTO-COMED... -
Page 10: Save Treatment Position
All blue LEDs (1-5) will light up. Set the required temperature with the (+/–) keys of the control panel. Press the (+) key (16) to increase the temperature. The blue LEDs of the (1-5) keys will light up step by step. © by IONTO-COMED... -
Page 11: Cleaning And Care
Only persons authorised by the manufacturer may perform repairs. Any alterations or repairs performed by non-authorised persons will invalidate any guarantee, warranty or responsibility of the manufacturer. In addition, the safety of the treatment bed could be adversely affected. © by IONTO-COMED... -
Page 12: Fault Finding And Solutions
180 W Heating: 80 W Maximum weight on seat: 170 kg Dimensions: Width with arm rests: 820 mm Length: 1740 – 2130 mm Seat height: 530 – 980 mm Seat depth: 460 – 560 mm Weight: 85 kg © by IONTO-COMED... -
Page 13: Transport/ Storage/ Operating Requirements
Incidin Foam, 750 ml Art. No. 8299.61 Mikrofiber Cloth Art. No. 8129.8 Single-use Hygiene Clothes, 100 pcs. Art. No. 9168.9 Single-use Cleaning Gloves, 30 pcs. For details of further accessories, please refer to the current IONTO-COMED catalogue. © by IONTO-COMED... -
Page 14: Ionto-Comed
Elektromagnetische Verträglichkeit 2004/108/EG / Electromagnetic Compatibility Directive 2004/108/EC Elektrische Betriebsmittel zur Verwendung innerhalb bestimmter Spannungsgrenzen 2006/95/EG / Low Voltage Directive 2006/95/EC Hersteller / Manufacturer: IONTO-COMED GmbH Adresse / Address: Durlacher Allee 109 D-76137 Karlsruhe Hiermit bestätigen wir, dass das Produkt / We certifies that the product Geräteart /... - Page 15 IONTO-COMED GmbH Durlacher Allee 109 D-76137 Karlsruhe Telephone: +49 (0) 721 / 97 70-0 Telefax: +49 (0) 721 / 97 70-290 http://www.ionto.de Email: sales@ionto.de...
