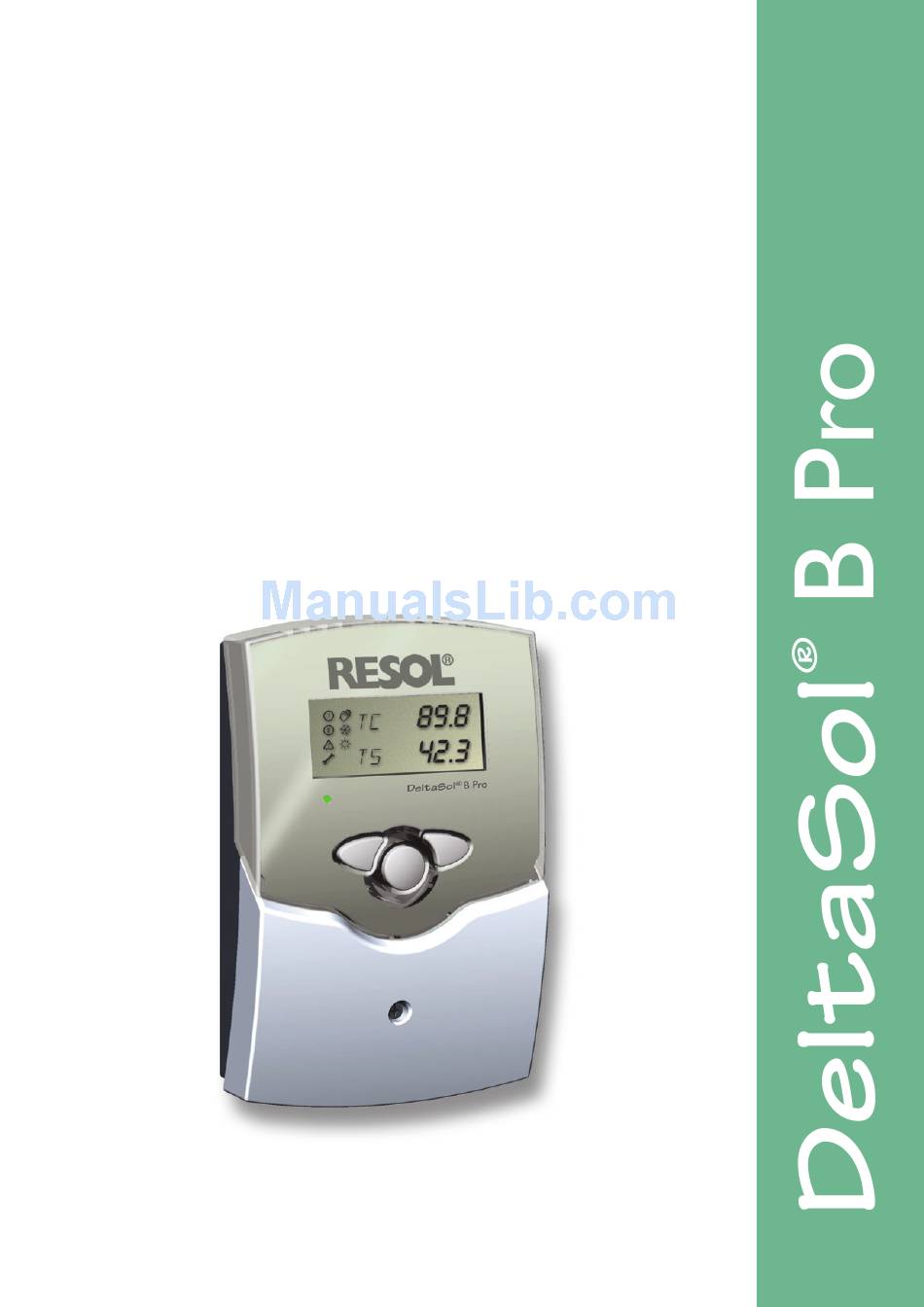

® RESOL DeltaSol B Pro Mounting Connection Handling Fault localization Examples Thanks for buying a RESOL. Read this manual carefully to get the best perfomance from this unit. www.resol.de...
Another use outside the copyright requires the faults can never be excluded, please note: approval of RESOL - Elektronische Regelungen GmbH. This Your own calculations and plans under consideration of the especially applies for copies, translations, micro films and current norms and DIN-directions should only be basis for the storage into electronic systems.
Page 3
• intuitive menu mode • function control • basic solar systems are provided ® B Pro DeltaSol The controller RESOL DeltaSol ® B Pro information on function and operating system status. The following standard is used for application in standard so- status of the controller and the system.
Page 4
3 temperatur sensors Pt1000 (2 x FKP6, 1 x FRP6) Accessory Overvoltage protection It is highly recommended to connect this RESOL overvoltage protection SP1 to all collector sensors in order to avoid overvoltages (e.g. by lightning). RESOL SP1 Art.-No.:...
® DeltaSol B Pro Page 5/24 1. Installation Warning! Switch-off power supply before 1.1 Mounting opening the housing. The unit must only be located internally. It is not suitable for housing operation control lamp installation in hazardous locations and should not be sited near to any electromagnetic field.
Indication: In order to avoid overvoltage damage at the collector (e.g. FK... : collector sensor by lightening), it is highly recommendend to use the FR... : reference sensor (store sensor) overvoltage protection RESOL SP1.
® DeltaSol B Pro Page 7/24 3. Operation and function 3.1 Adjustment keys The controller is only operated by pushbuttons below the display. The forward-key (1) is used for scrolling forward through the indication menu or to increase the adjustment values.
® B Pro DeltaSol Page 8/24 3.2.1 Indication channels S1-S4 The indication channels S1-S4 indicate the current temperatures of the sensors S1-S4 in °C. If the thermostat function is activated (FN=4), the channel TT (thermostat temperature) is indicated. The indication channels H1 and H2 (if FN1 or FN3 are 3.2.2 Indication channels H1 and H2 activated) indicate the solar operating hours of the solar pump or the solar operating hours of the consumer...
® DeltaSol B Pro Page 9/24 3.2.4 ∆ ∆ ∆ ∆ ∆ T -regulation (DO 1/DO 2, DF 1/DF 2) The controller controls the temperatures measured by four sensors S1, S2, S3 and S4 and compares the resulting DO:urn-on temperature temperature difference with the preadjusted switch-on- temperature difference ∆Ton (DO).
(collector safety shutdown). The limit temperature is set to 140 °C by RESOL but it can be changed within the adjustment range of 110 ... 200 °C. In the display is shown...
® DeltaSol B Pro Page 11/24 3.2.9 System cooling (OC 1/OC 2) If the adjusted maximum store temperature is exceeded, the solar system switches off. If the collector temperature again increases and the adjusted maximum collector temperature (CX1/2) is reached, the solar pump is running until the limit temperature is again underrun.
® B Pro DeltaSol Page 12/24 3.2.11Thermostat function (TO, TF) (System 4, FN=4) The thermostat function works independently from the After heating use of surplus energy solar operation and can e.g. be used for use of surplus energy or after-heating. Factory settings: TO = 40 °C, TF = 45 °C •...
Page 13
If individual conditions require an adaptation of the parameter, please adjust the values accordingly (see 3.2). 5. Tips for fault location: Please check the following points if the controller RESOL D D D D D eltaS eltaS eltaSol ol ol ol ol eltaS ®...
® B Pro DeltaSol Page 14/24 6. Examples 6.1 Solar system with 1 collector and 1 store with heating reverse raising temperature (SX/1) is reached. Independently from the so- The controller measures the temperature difference between lar circuit a ∆T-reverse raising is simultaneously effected. If collector sensor S1 and store sensor S2.
® DeltaSol B Pro Page 15/24 6.2 System with store charge by solid hot fuel boiler with heating reverse raising temperature (SX/1). At the same time a ∆T-reverse raising The solid hot fuel boiler is added on by control of the pump R1, if the switch-on temperature difference (DO/1) as well is effected independently from the solid hot fuel boiler.
® B Pro DeltaSol Page 16/24 6.3 Solar system with 1 collector, 1 store and after- heating by solid hot fuel boiler: Necessary adjustment: Kanal FN=1 The controller compares both temperature differences difference (DF/1) is underrun. The solid hot fuel boiler is between collector sensor S1 and store sensor S2 as well as activated by control of the pump R2, if the 2nd switch-on between solid hot fuel boiler S3 and store sensor S4.
® DeltaSol B Pro Page 17/24 6.4 Solar system with 1 collector and 1 store with heat exchange to existing store: Necessary adjustment: channel FN=1 The controller measures the temperature difference between is reached. At the same time a heat exchange regulation is collector sensor S1 and store sensor S2.
® B Pro DeltaSol Page 18/24 6.5 Solar system with 1 collector and 2 stores: Valve logic Necessary adjustment Channel FN=2 The controller compares the temperature at the temperature adjusted maximum temperature (SX/1/2) is reached. Priority sensor S1 with that of S2 and S3. If the measured must be given to one of the two stores, as no parallel loading temperature differences are higher than the adjusted values is possible.
® DeltaSol B Pro Page 19/24 6.6 Solar system with 1 collector and 2 stores: Pump logic The controller compares the temperature at the temperature temperature (SX/1/2) is reached. Priority must be given to one of the two stores, as no parallel loading is possible. sensor S1 with that of S2 and S3.
® B Pro DeltaSol Page 20/24 6.7 East-/ west-collectors, 1 store: Necessary adjustment: Channel FN=3 The controller compares the temperatures at both collector (DO/1) and (DO/2), the corresponding pump R1/R2 is sensors S1 and S3 with the store temperature at sensor S2. activated and the store is loaded.
Page 21
® DeltaSol B Pro Page 21/24 6.8 Solar system with 1 collector, 1 store and after-heating: Necessary adjustment: Channel FN=4 The controller measures the temperature difference sensor S3 can be used for thermostat function. TO is set for between collector sensor S1 and store sensor S2. As soon thermostat switch-on temperature and TF switch-off as the difference is higher or identical to the adjusted value temperature in the adjustment channels.
® B Pro DeltaSol Page 22/24 6.9 Standard solar system with 1 collector and 1 store: Necessary adjustment Channel FN=4 The controller measures the temperature difference between difference, the pump is switched-off. In this systems it is buffer store sensor S1 and store sensor S2. As soon as this necessary to deactivate the thermostat function, by setting difference is higher or identical to the adjusted value the adjustment channels To and TF to the same value.
