TABLE OF CONTENTS

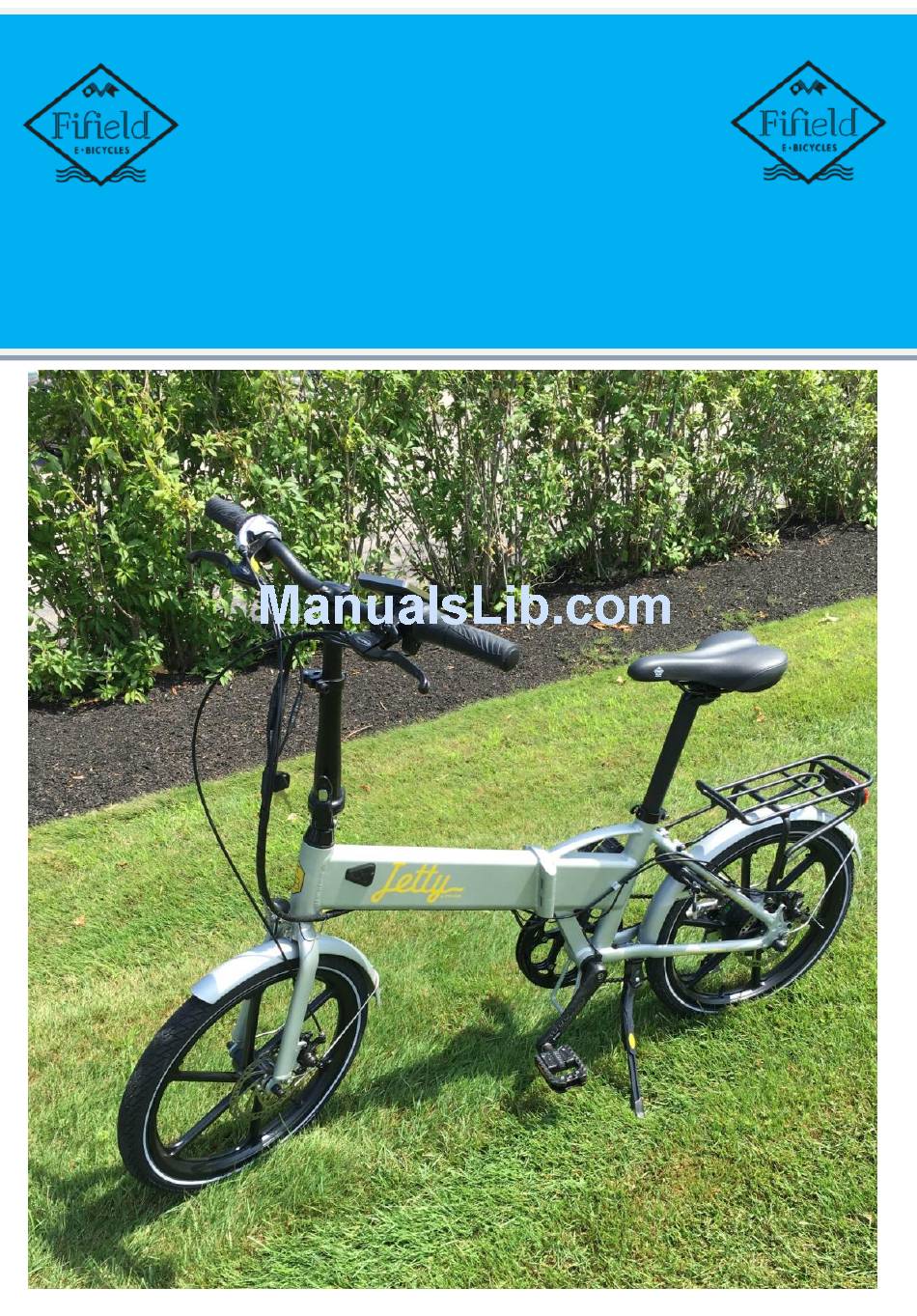

Jetty Electric Bicycle
Owner's Manual
THIS MANUAL CONTAINS IMPORTANT SAFETY, PERFORMANCE, AND
MAINTENANCE INFORMATION. READ THE MANUAL BEFORE TAKING YOUR
FIRST RIDE ON YOUR NEW ELECTRIC BICYCLE, AND KEEP THE MANUAL
HANDY FOR FUTURE REFERENCE.
ii

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JETTY and is the answer not in the manual?

Questions and answers

Summary of Contents for FI-FIELDS JETTY

  • Page 1 TABLE OF CONTENTS Jetty Electric Bicycle Owner’s Manual THIS MANUAL CONTAINS IMPORTANT SAFETY, PERFORMANCE, AND MAINTENANCE INFORMATION. READ THE MANUAL BEFORE TAKING YOUR FIRST RIDE ON YOUR NEW ELECTRIC BICYCLE, AND KEEP THE MANUAL HANDY FOR FUTURE REFERENCE.
  • Page 2 IMPORTANT: KEEP FOR FUTURE REFERENCE About this Owner’s Manual WARNING It is important for you to Don't dismantle and repair parts understand your new electric by yourself, please go to the bicycle (e-bike). Even if you have local distributor or the servicing ridden an e-bike before, it is station if necessary.
  • Page 3 IMPORTANT: KEEP FOR FUTURE REFERENCE Contact Fifield info@fifieldebikes.com ∙ (781)-927-1511 72 Sharp Street, Hingham, MA 02043 Along with registering online, for your own benefit, please also enter information about your bicycle below. Welcome to the Fifield e-Bike family! My bicycle model: _____________________________________________ My frame serial number: _________________________________________ My motor serial number: _________________________________________ My dealer and #: _______________________________________________...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Before your first ride Pg. 1 - 4 Congratulations! Know your electric bicycle Specifications/Accessories Check before riding Taking off Safe riding Pg. 5 - 6 Local riding laws Safety precautions Varying riding conditions Assembly Pg. 7 - 9 Handlebars Frame Pedals...

  • Page 5: Before Your First Ride

    25-35 miles, based upon situations, learn the function and dependent variables. performance of all the mechanisms Chain driven, the Jetty is also of your bike by riding at slower equiped with shimano Alfine 8- speeds in a flat, empty space.
  • Page 6 All together the bike weighs 48 pounds and folds to near half its size. Accessories The jetty comes with a headlight and tailight that can both be operated through the LCD control screen (page 10). Also, a foldable kickstand and rear cargo rack.

  • Page 8: Taking Off

    BEFORE YOUR FIRST RIDE check that all quick releases are locked and in good working order. Check your e-bike before riding everytime Before operating your electric WARNING bicycle, inspect it carefully to avoid Do not leave the key in the accidents or damage.
  • Page 9 BEFORE YOUR FIRST RIDE you turn the power off, it could easily damage the controller and motor.
  • Page 10 BEFORE YOUR FIRST RIDE As you continue to ride, the battery will decrease porportionally based on the amount of power you are using. As the battery decreases, the bar will go down one by one. If the bar goes out completely, you can still pedal your e-bike just like a regular bike.

  • Page 11: Safe Riding

    SAFE RIDING USE the correct hand signals when Local riding laws turning or stopping. If you do not Most state and local areas know the proper hand signals, it is have specific laws for cyclists. important you learn them before Please check with your local riding on the road.

  • Page 12: Varying Riding Conditions

    SAFE RIDING Varying riding conditions Wet conditions Like any other moving object, when it is wet or snowing, there is less traction. This applies specifically to the brakes on the bike; they will not perform as well as they do in dry climates. Be sure to brake earlier because it will take a longer distance to come to a full stop.

  • Page 13: Assembly

    ASSEMBLY Handlebars: When your e-bike is first shipped the handlebars be properly attached, but in the folded position. This can be seen in the left side image. There are two steps to resolve this. First, simply straighten the handlebar frame until it is perpendicular to the ground.
  • Page 14 ASSEMBLY Frame: In addition to the handlebars being out of place, the middle of the bike will also be in the collapsed. To correct this, simply unfold the bike until the frame is perfectly straight and use the metal clasp on the frame to lock the joint together.
  • Page 15 ASSEMBLY Registration: When assembly is complete, please refer to our website (www.fifieldebikes.com) to register your new electric bicycle! On the site, you will be prompted to answer a few brief questions and provide two serial numbers. The first, the frame serial number is located directly below the handlebars and above the front wheel on the front of the bike.

  • Page 16: Instructions For Use

    INSTRUCTIONS FOR USE Switching ON/OFF The LCD has three buttons. MODE DOWN To power on the bike, remove the black rubber cover found on the left side of the main frame of the bike, and turn on the red power switch. From here , go to the LCD screen and hold down the MODE button for 2 seconds.
  • Page 17 INSTRUCTIONS FOR USE Integrated Bike Lock To use the bike lock you first have to be sure the lock is not lined up with any spokes on the wheel. To engage the lock, simply turn the key so it is in the vertical position depicted below on the left.
  • Page 18 INSTRUCTIONS FOR USE Push Cruise Control LCD Function Summary Press and hold DOWN to enable The LCD screen provides a wide power assist while walking the range of functions and indicators bicycle. Your bike will go at a speed to the fit your needs. The indicated of 3.7 MPH (6 KMPH).
  • Page 19 INSTRUCTIONS FOR USE Battery Indicator downhill. The five battery bars represent the capacity of the battery. When the battery is low the battery Throttle frame on screen will flash to notify The throttle is located on the that it needs to be recharged left side of your handlebars.
  • Page 20 INSTRUCTIONS FOR USE the bike to ensure no damage can Frequent braking/starting, come to it. riding uphill/against strong winds, Your battery should be starting from a standstill, or riding recharged after each use. The on rough/muddy roads will use normal lifecycle of the battery, if extra power and lower range.

  • Page 21: Charging The Battery

    INSTRUCTIONS FOR USE Fifield is not responsible for any black rubber cover to access the damages caused by use of other power outlet (depicted at the end products not specifically designed of this section). Once this is and tested for use with this electric complete, insert the charger into bicycle.
  • Page 22 INSTRUCTIONS FOR USE potential damage to the battery. outlet for extended periods of time may result in a fire. Using your power source incorrectly or leaving the charger When charging, the charger connected to the battery and an will become warmer. Be sure to ...

  • Page 23: Maintenance

    MAINTENANCE The new Jetty comes with black spoke-less rims to increase Wheels durability and decrease Wheels should be centered in maintenance. the fork or dropouts. If you hear any irregular noises from the Tires wheels or brakes, the wheels It is recommended that your should be checked and repaired.

  • Page 24: Brakes

    MAINTENANCE of each to ensure nothing will be having any issues with the battery, moving on your ride. If there are please bring the bike to your local issues with the locking clasps or bike mechanic for repairs. collapse points are showing movement bring to bicycle dealer General maintenance for repair.

  • Page 25: Limited Warranty

    LIMITED WARRANTY Every new Fifield e-bicycle comes with our warranty. Once your Fifield e-Bike is registered with Fifield e-Bicycle Incorporated, we provide each original retail purchaser a warranty against defects in materials and workmanship, as stated below: 1 year  Frame ...
  • Page 26 Welcome to the family.
