Page 1: Video Recorder

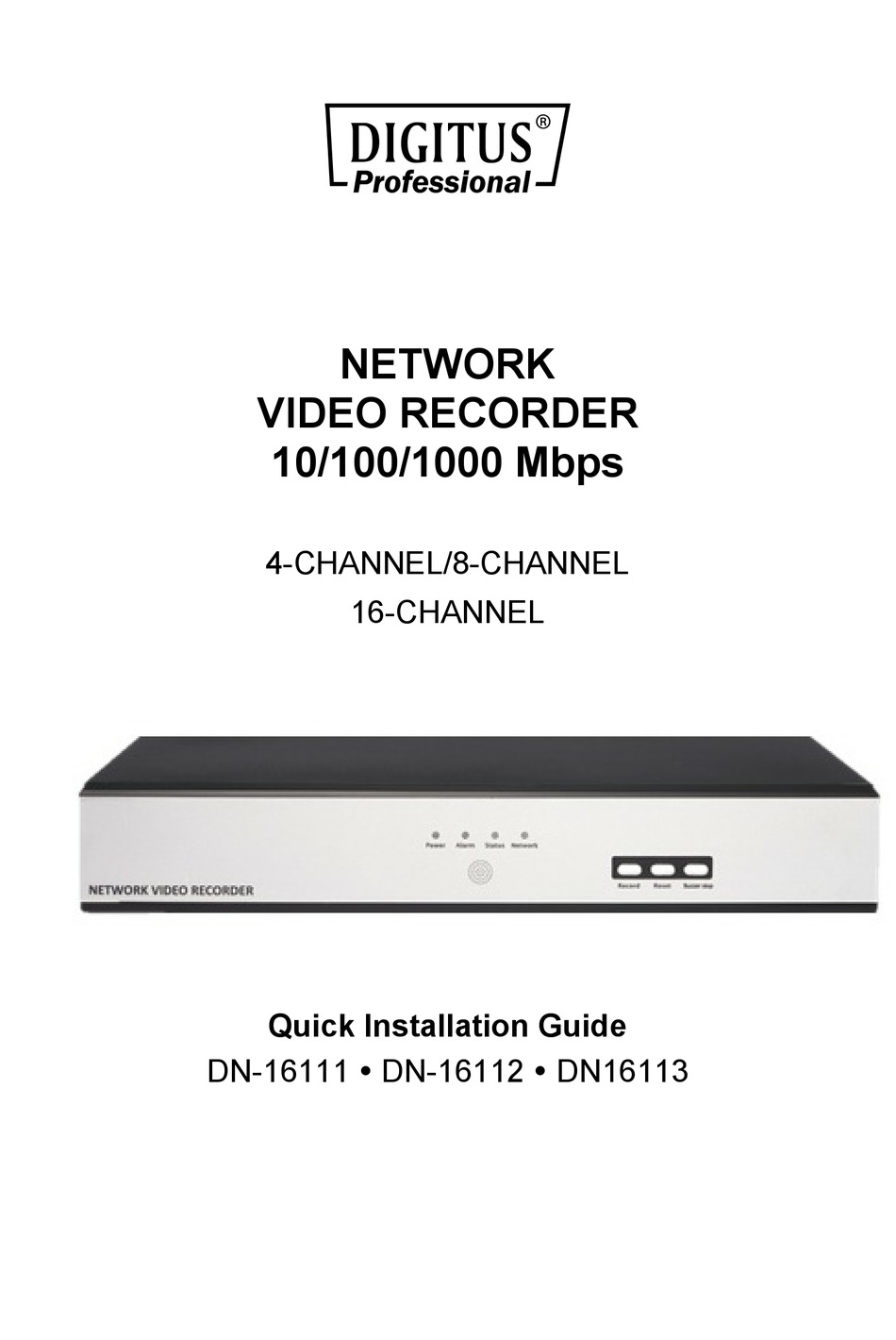

NETWORK VIDEO RECORDER 10/100/1000 Mbps 4-CHANNEL/8-CHANNEL 16-CHANNEL Quick Installation Guide DN-16111 DN-16112 DN16113... -
Page 2: Table Of Contents
DN-16111, DN-16112, DN-16113 - Quick Installation Guide Table of Contents System Overview ....................3 Front View ........................3 Rear View ........................3 LED & Buttons Definitions ................... 3 HDD Installation ....................4 Remove the cover ....................4 2. Install HDD ......................... 5 Install SATA Cable .................... -
Page 3: System Overview
System Overview Front View Rear View LED & Buttons Definitions Status LEDs Definitions Power Solid- Power on Alarm Blinking when a system/camera event occurs. each event None Goes off if reaches the 10-second duration, or when buzzer stop button is pressed (if buzzer is triggered) Status *Solid- Normal operation... -
Page 4: Hdd Installation
DN-1611 11, DN-1611 12, DN-161 13 - Quick I nstallation Guide DD Insta allation 1. R Remove t the cover move the s crews on b both sides and back s side(2 on e each side). move the to op case by y pulling it t toward you... -
Page 5: Install Hdd
2. Install HDD Put HDD on NVR. Fix the HDD on NVR with screws. 3. Install SATA Cable Install SATA cable on the HDD... -
Page 6: Connect To The Nvr
DN-16111, DN-16112, DN-16113 - Quick Installation Guide Connect to the NVR There are various ways you can connect to the NVR and below are the suggested methods for different network setup: • The NVR is placed in a network with a DHCP server: Connect to the NVR by using “NVR Search”... - Page 7 To begin, launch the “NVR Search” utility from the CD and proceed with the installation:...
- Page 8 DN-16111, DN-16112, DN-16113 - Quick Installation Guide Once the installation is complete, check the “Launch the Search AP” option and click “Finish”. The search should start automatically and its status should be dis- played.
- Page 9 The NVR should be located and its IP address should be displayed. Double-click on an NVR and the search program should automatically access the NVR’s web administration page from your default browser.
- Page 10 DN-16111, DN-16112, DN-16113 - Quick Installation Guide You should be prompted for the NVR’s username and password. Enter its default username “admin” and password “admin” and then click ”OK” to enter the system Please make sure you are using Internet Explorer 7 or above ...
-
Page 11: Access The Nvr With Its Default Ip Address
Access the NVR with its default IP address The NVR comes with a pre-configured static IP “192.168.0.10”. However, it is only used when there is no DHCP server presented in the network. The NVR will turn on its DHCP server function and act as the DHCP server in the network. To connect to the NVR, use a PC that is on the same network over a switch or hub, or connect the PC directly to the NVR using a crossover CAT5 Ethernet cable. - Page 12 DN-1611 11, DN-1611 12, DN-161 13 - Quick I nstallation Guide ain, you sho ould be pro ompted for r the userna ame and p password. E Enter its de efault rname “ad dmin” and p password “ “admin” an nd then clic ck ”Login”...
