pellenc Excelion 2000 PROFESSIONAL User Manual
  1. Manuals
  2. Brands
  3. pellenc Manuals
  4. Brush Cutter
  5. Excelion 2000 PROFESSIONAL
  6. User manual

pellenc Excelion 2000 PROFESSIONAL User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

pellenc s.a.
ENG
Route de Cavaillon
B.P. 47
84122 PERTUIS cedex
(France)
Tel : +33(0)4 90 09 47 00 Fax : +33(0)4 90 09 64 09
E-mail : pellenc.sa@pellenc.com
www.pellenc.com
Translation of the
original user guide

USER GUIDE

Brush cutter
CONTENTS:
• Brush cutter with safety parts
• An adjusting key
• A harness
• A user guide
READ THE USER GUIDE CAREFULLY BEFORE USING THE TOOL
53_107869_C - 03/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Excelion 2000 PROFESSIONAL and is the answer not in the manual?

Questions and answers

Related Manuals for pellenc Excelion 2000 PROFESSIONAL

Summary of Contents for pellenc Excelion 2000 PROFESSIONAL

  • Page 1: User Guide

    Route de Cavaillon B.P. 47 84122 PERTUIS cedex (France) Tel : +33(0)4 90 09 47 00 Fax : +33(0)4 90 09 64 09 E-mail : pellenc.sa@pellenc.com www.pellenc.com Translation of the original user guide USER GUIDE Brush cutter CONTENTS: •...

  • Page 3: Table Of Contents

    INCIDENTS ................35 «PELLENC SA» TERMS OF WARRANTY AND NON-RESPONSIBILITY CLAUSE ..... . . 38...

  • Page 4: Safety Instructions

    No part of this manual may be reproduced without the written consent of PELLENC. The technical characteristics and the illustrations given in this manual are for information purposes and are in no way contractual. PELLENC reserves the right to make any modification or improvement to its products as deemed necessary without informing customers already in possession of a similar model.

  • Page 5: General Safety Instructions For The Tool

    • The Excelion 2000 Professional brush cutter is a professional tool to be used exclusively for cleaning green areas (grass, dense grass, woody weeds, brambles and small shrubs).

  • Page 6: Safety Warnings For The Excelion Brush Cutter And Grass Trimmer

    1– Do not use the metal cutting tools near walls, fences, tree trunks, rocks or similar obstacles. Contact with these types of elements can cause a rebound effect, increase the risk of ricochet and damage the cutting tool. Pellenc recommends using the CITY CUT for such work conditions.

  • Page 7: Safety Measures For The Charger And The Battery

    SAFETY INSTRUCTIONS TRANSPORT OF THE EXCELION 2000 PROFESSIONAL BRUSH CUTTER 1– Keep the original packaging for storing the Excelion 2000 Professional brush cutter in the possible event of shipping the tool for overhaul or repair. 2– Never carry the machine or the battery by the power cord.

  • Page 8: Safety Equipment

    Stop the machine immediately if a person or animal approaches. 6– Direction of rotation and maximum speed (6200 rpm) Pay attention to the direction of rotation of the Excelion 2000 Professional brush cutter. This is indicated on the safety guard. 7– Pay attention to projections 8–...

  • Page 9: Description And Technical Characteristics

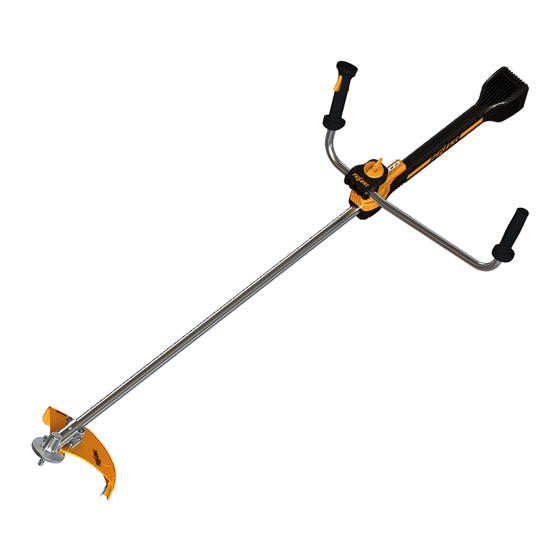

    DESCRIPTION AND TECHNICAL CHARACTERISTICS The Excelion 2000 Professional brush cutter is supplied without a cutting head: They must be ordered independently. 53_12_007B Description of the main elements: 1– Crankcase: Protects the electric motor and allows heat to dissipate. 2– Grip: Used to guide the Excelion 2000 Professional brush cutter 3–...

  • Page 10: Technical Characteristics

    DESCRIPTION AND TECHNICAL CHARACTERISTICS TECHNICAL CHARACTERISTICS Excelion 2000 Model Version Cutting head: ROLL CUT Power in Watts 2000 Weight (excluding cutting tool and safety guard) in kg Dimensions (l x w x h) in mm 1,800 x 450 x 225 Cutting diameter in mm Rotational speed in rpm 2000 to 6200...

  • Page 11: Preparing The Machine For Use

    PREPARING THE MACHINE FOR USE HANDLEBAR ASSEMBLY/DISMANTLING 53_12_009A 53_12_008A 53_12_010B ASSEMBLY/DISASSEMBLY OF THE STANDARD* SAFETY GUARD 53_12_013B 53_12_012B *supplied with the tool...

  • Page 12: Assembly/Disassembly Of The Mulching Safety Guard

    PREPARING THE MACHINE FOR USE ASSEMBLY/DISASSEMBLY OF THE MULCHING SAFETY GUARD 53_14_023D 53_14_024B ASSEMBLY/DISASSEMBLY OF THE SAFETY GUARD OF THE CHISEL-TOOTH SAW BLADE 53_14_025A 53_14_026A...

  • Page 13: Adjusting The Working Position

    PREPARING THE MACHINE FOR USE ADJUSTING THE WORKING POSITION Before using the Excelion 2000 Professional brush cutter, its working position must be adjusted to the operator's size. This makes it easier for the operator to use and requires little effort.

  • Page 14: Attach And Adjust The Length Of The Harness

    ATTACH AND ADJUST THE LENGTH OF THE HARNESS, Adapting the length of the harness helps adjust the "vertical position" of the Excelion 2000 Professional brush cutter so that it is within reach and the cutting head is pointing slightly downwards.

  • Page 15: Machine Balancing

    PREPARING THE MACHINE FOR USE MACHINE BALANCING Put the harness hook on one of the 4 attachment positions available on the tool. Use the attachment point which gives you the best tool balance. USAGE 1 - Position the harness equipped with its battery. 2- Attach the machine to the harness and make sure it is balanced and well adjusted.
  • Page 16 USAGE 6200 rpm 53_14_008A 53_14_004A 6200 rpm 4200 rpm 53_14_005A 53_14_009A 4200 rpm 6200 rpm 6200 rpm 4200 rpm 53_14_010B 53_14_006A The tool is now powered up and ready to operate. The pressure exerted on the trigger makes it possible to progressively increase the speed to its maximum value.

  • Page 17: Battery Autonomy And Working Efficiency

    USAGE BATTERY AUTONOMY AND WORKING EFFICIENCY To optimise the autonomy of your PELLENC battery tool, the rotational speed of the cutting tool used must be adapted to the type of mowing operation required. The higher the rotational speed of the cutting tool is, the higher the energy consumption. Therefore the progressive nature of the control trigger must be used to adjust the rotational speed of the cutting tool.

  • Page 19: Roll Cut Cutting Head

    USAGE TECHNICAL DESCRIPTION AND OPERATION ROLL CUT CUTTING HEAD ROLL CUT ASSEMBLY: 53_13_055B 53_13_062A 53_13_056A 53_13_063A CUTTING WIRE ASSEMBLY: = 3,5 M 53_12_030C 53_12_031B 53_12_033B 53_12_032B...
  • Page 20 USAGE ADJUSTMENT OF THE CUTTING WIRE'S POSITION: 53_12_035B 53_12_034B 53_12_036B 53_12_037B ROLL CUT RECHARGING: 53_13_059B 53_13_057B 53_13_061B...

  • Page 21: Tap Cut Cutting Head

    USAGE TECHNICAL DESCRIPTION AND OPERATION TAP CUT CUTTING HEAD TAP CUT ASSEMBLY: 53_13_071A 53_13_072A 53_13_073C 53_13_074A 53_13_085B CUTTING WIRE ASSEMBLY: = 3,5 M 53_13_076B 53_13_075A 53_13_077A 53_13_078A...
  • Page 22 USAGE ADJUSTMENT OF THE CUTTING WIRE'S POSITION: 53_13_081A 53_13_082A RECHARGING TAP CUT: 53_13_085A 53_13_083A...

  • Page 23: Multi-Cut Cutting Head

    USAGE TECHNICAL DESCRIPTION AND OPERATION MULTI-CUT CUTTING HEAD MULTI-CUT ASSEMBLY: 53_13_045A 53_13_044A 53_13_046A 53_13_047A CUTTING WIRE ASSEMBLY: 53_12_055B 53_12_056B...
  • Page 24 USAGE ADJUSTMENT OF THE CUTTING WIRE'S POSITION: 53_12_058B 53_12_057B DOUBLE-TOOTHED BLADE ASSEMBLY 53_12_060B 53_12_059B 53_12_061B...

  • Page 25: Blade Cut Cutting Head

    USAGE TECHNICAL DESCRIPTION AND OPERATION BLADE CUT CUTTING HEAD CUTTING TOOL ASSEMBLY: 53_12_063B 53_12_064B 53_13_089A 53_13_088A 53_13_051A 53_13_050A...

  • Page 26: City Cut Cutting Head

    USAGE TECHNICAL DESCRIPTION AND OPERATION CITY CUT CUTTING HEAD CUTTING TOOL ASSEMBLY: 57098 53_14_028A -360° 53_14_030A 53_14_033A 360° 53_14_034A...

  • Page 27: The Different Work Techniques

    USAGE THE DIFFERENT WORK TECHNIQUES Before you start mowing, analyse the surface area to be cleared, the nature of the surface, the slope, the presence of obstacles etc. Also pay attention to the wind direction, which can have an impact, to facilitate the disposal of cut grass. Always keep a minimum distance of 50mm between the cutting head and the obstacle to avoid any risk of damage to the tool and "wires"...
  • Page 28 USAGE THE DIFFERENT WORK TECHNIQUES Mowing along walls, fences, around trees and flower beds Use the cutting wire as it facilitates grass removal and prevents the rebound effect when there is contact with a fixed obstacle. Protect bark and the edge of flower beds by using the guard as a shield between the surface area to be cleared and the vegetation to be protected.

  • Page 30: Maintenance

    - Open the tube of PELLENC grease - Apply 4g of PELLENC grease, once a month or every 100 hours. - Grease the threads of the shaft of the angle to facilitate the release of the cutting head nuts.
  • Page 31 MAINTENANCE Changing the housing 53_14_029A 53_14_050A 53_14_032A Greasing 35749 x50h 53_14_039A 53_14_040A...
  • Page 32 MAINTENANCE Changing the blade kit N° 13 53_14_045A 53_14_051A 53_14_035A 53_14_036A 53_14_038A 53_14_037A...
  • Page 33 MAINTENANCE Sharpening the blades 3.7 mm 53_14_046A...
  • Page 34 MAINTENANCE Cutting head parts: CUTTING HEAD: ROLL CUT CUTTING HEAD: BLADE CUT 53_12_039B 53_12_042B 1– Ref. 107711 1– Ref. 107700 2– Ref. 107715 2– Ref. 106645 3– Ref. 107712 3– Ref. 57080 4– Ref. 106803 5– Ref. 57076 CUTTING HEAD: TAP CUT CUTTING HEAD: MULTI-CUT 53_12_041B 53_12_040B...
  • Page 35 With mandatory housing = 111500 7– 8 tooth blade = 85176 (only for MULTI-CUT) 8– 11- and 12-tooth blades = 118270 (only CITY CUT ) 53_12_043D Accessories: 1– Harness = 110283 2– Carrying bag = 111800 53_13_068A Consumable: - PELLENC grease tube = 35749...

  • Page 36: Incidents

    INCIDENTS...
  • Page 37 INCIDENTS...
  • Page 38 INCIDENTS...

  • Page 39: Pellenc Sa» Terms Of Warranty And Non-Responsibility Clause

    PELLENC sa. In the event of an accident and total or partial destruction of the product, PELLENC sa’s warranty can only be granted, and their responsibility engaged, if the party claiming the warranty can provide technical proof specifying the origin of the accident, a defect in materials or a structural defect and the product components which are the cause of it.
  • Page 40 WARRANTY. REFER THE PROBLEM TO AN APPROVED REPAIRER. PATENTED EQUIPMENT • Technical characteristics are given for information purposes only; under no circumstances are they contractual. • PELLENC reserves the right to make design and and manufacturing modifications with the aim of constant progress towards PERFECTION. Roger PELLENC...

  • Page 41: Ce'' Statement Of Conformity

    ‘‘CE’’ STATEMENT OF CONFORMITY (ONLY CONCERNS EUROPE) MANUFACTURER PELLENC S.A. ADDRESS QUARTIER NOTRE-DAME ROUTE DE CAVAILLON - B.P. 47 84122 PERTUIS CEDEX (FRANCE) PERSON/ENTITY AUTHORISED TO COMPILE THE TECHNICAL PELLENC S.A. DOSSIER ADDRESS QUARTIER NOTRE-DAME ROUTE DE CAVAILLON - B.P. 47...
