- Page 1 MINI DP TO SCART Converter User manual...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. n Introduction The MINI DP to SCART converter which will convert digital Display Port video and audio signal to composite video signal and the FL / FR stereo audio signal.
- Page 3 n Package 1. Mini DP to SCART Converter 2. 5V1A DC Power Supply Adaptor 3. Operation Manual n Specifications Input ports 1xDisplay Port. Output ports 1xSCART Dimensions(mm) 88(D)x58(W)x26(H) Wight (g) Input Resolution 640x480@60Hz,800x600@60Hz, 1024x768@60Hz,1280x720@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1600x1200@60Hz,1920x1080@60Hz,...
- Page 4 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz,1080i50/60Hz, 1080p23.97/24/25/50/59.94/60Hz. CVBS output PAL,NTSC Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F elative Humidity 20 ~ 90% RH (Non-condensing) Power Consumption (Max)

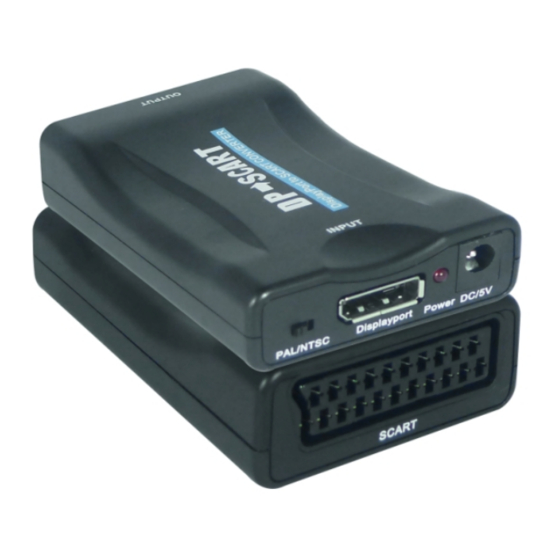

- Page 5 n Operation controls and Fuctions Front Panel Rear Panel 1) PAL/NTSC Switch: Switch the CVBS output format. 2) Display port Input: Connect the DP to your source equipment such like PC,notebook. 3) LED indicator: When the DC5V power on, the indicator will be light. 4) Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.
- Page 6 n Application Example...
