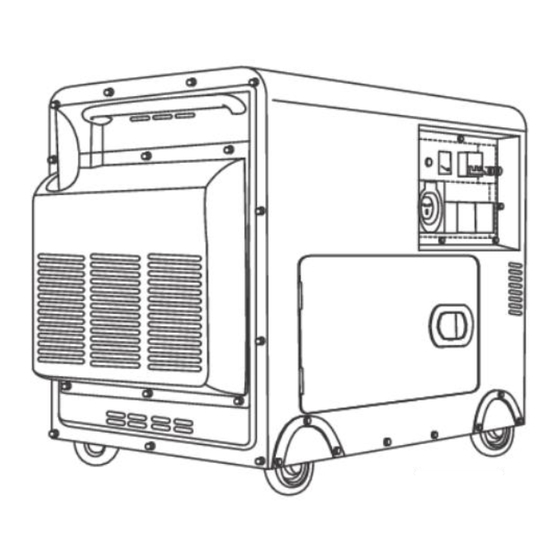

Summary of Contents for Edisons GENP-GEN-DSL-1P895
- Page 1 User manual Generators (Industrial) WARNING! Read and follow all safety warnings and instructions carefully before using this machine. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save this manual for future reference. ATTENTION! Products covered by this manual will vary in appearance, assembly, inclusions, description and packaging.
-
Page 2: Table Of Contents
Index Index ..............................1 Safety Warnings ..........................2 Parts Diagram ............................. 4 Before use ............................6 Starting the engine ..........................7 Stopping the Engine ..........................8 Re-Priming the fuel system ........................8 Using your Generator .......................... 9 Maintenance ............................12 Service Schedule .......................... -
Page 3: Safety Warnings
Safety Warnings General Safety Warnings coverings. Serious injury to the operator fuel gets on your clothing, change or bystanders could result as well as immediately. To reduce the risk of damage to the generator. serious or fatal burn injuries, check for It is important you read Do not use this unit for any job other fuel leakage. - Page 4 IMPORTANT! - Machine, Fuel handling or Electrical Safety If you are not familiar with safe operation / handling of this machine, or are in any way unsure of any object of this products suitability or correct use for your application you should complete training conducted by a person or organisation qualified in safe use and training related to this product.
-
Page 5: Parts Diagram
Parts Diagram ATTENTION! Products covered by this manual will vary in appearance, assembly, inclusions, description and packaging. 1. Exhaust Cover 5. Fuel filler cap 9. Wheel covers 2. Exhaust Outlet 6. Black control panel 10. Handle (b) 3. Handle (a) 7. - Page 6 Engine 1. Oil Filter location 2. Oil Filter locking bolt 3. Oil Filter strainer 4. Run Lever 5. Emergency OFF lever 6. Oil filler cap 7. Oil drain bolt 250714103200...
-
Page 7: Before Use
Before use Connecting the Battery (if equipped) For safety the connection plugs may have been disconnected from the battery before shipping. Please follow the below steps to connect your battery. 1. Open the “front access panel”. 2. Bolt the RED wire to the POSITIVE terminal and the BLACK wire to the NEGATIVE terminal on the battery. -
Page 8: Starting The Engine
Adding Oil (4-Stroke and Diesel engines only) WARNING! Using the wrong oil Acceptable Oil Grades: 10W30 WARNING! Do not overfill or tilt can damage your engine and / 10W40 / 15W30 / 15W40. while filling. void warranty. With the engine perfectly level: 1. -
Page 9: Stopping The Engine
Remote control start (if equipped) IMPORTANT! Applicable generators may be fitted with a remote start isolator switch; you must have this switch turned on to be able to use your remote control to start / stop your engine. Some models generators must have the ignition key in the “ON”... -
Page 10: Using Your Generator
Using your Generator Checking the fuel level WARNING! Fuel is extremely flammable and is explosive under certain conditions. WARNING! Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area where the engine is refuelled or where fuel is stored. WARNING! Do not overfill the fuel tank. - Page 11 Voltmeter (if equipped) The Voltmeter displayed current total power generation by the generator. Some models are fitted with an LCD digital display instead (see section “Digital Display”). Digital Display (if equipped) The LCD Digital display provides the following information: V: Voltage output (power is being generated) ...
- Page 12 Balancing power on a 3-Phase generator IMPORTANT! This section only applied to 3-Phase capable generators. WARNING! Failure to balance output on a 3-Phase generator can cause damage and void warranty. IMPORTANT! Only one third of the total generator capacity is available from any single phase 240v outlet. WARNING! 3-Phase generators are not suitable for running power-hungry appliances from 240v Single Phase outlets.
-
Page 13: Maintenance
Maintenance Cleaning the air filter NOTICE! It is normal for a small amount of oil may leak under the air filter box if the generator is running for a long period of time. Wipe excess oil after each 10 hours of use 1. - Page 14 *Cleaning the oil filter strainer 1. Remove the Oil filter locking bolt. 2. Gently remove the Oil filter strainer. 3. Clean with degreaser and wipe down to remove debris and any degreaser left behind. 4. Replace the Oil filter strainer followed by the oil filter locking bolt. IMPORTANT! Please dispose of used motor oil in a manner that is compatible with the environment.
-
Page 15: Service Schedule
Service Schedule 250714103200... -
Page 16: Transporting/Storage
Transporting/Storage To prevent fuel spillage when transporting or during temporary storage, the generator should be secured upright in its normal operating position, with the engine switch (if equipped). It is also reocmmmended the remote control switch (if equipped) be turned off to avoid accidental starting. WARNING! Before storing the unit for an extended period be sure the storage area is free from excessive humidity and dust. -
Page 17: Troubleshooting
Troubleshooting The Engine Will Not Start No power from outlet socket Disconnect the electrical Is there fuel in the Is the output If ‘no’ Refill the fuel tank If ‘no’ appliances. Stop tank? indicator ON? and re-start the engine. If ‘yes’ Is the engine switch Turn the engine Is the engine... -
Page 18: Specifications
Continuous Rated Output when considering whether a product is right for your needs. NOTE! Power produced by generators can fluctuate. IMPORTANT! UPS or power filter recommended for powering expensive equipment (all models). GENP-GEN-DSL-1P895 Manufacturer: GenPower Engine Type: Diesel... -
Page 19: Appendix
Appendix © Copyright 2012 - Mills International Trading Pty Ltd. 250714103200... - Page 20 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
