Leave this manual with party responsible for use and
operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
CAUTION: Logs are fragile, handle with care.
Kit Components:
• Burner Port Fixture
• Ceramic Logs (8)
• Shoulder Screws (11)
• Self-Tapping Screws (13)
1 fixture included. Use for two locations. Discard after use.
1
2

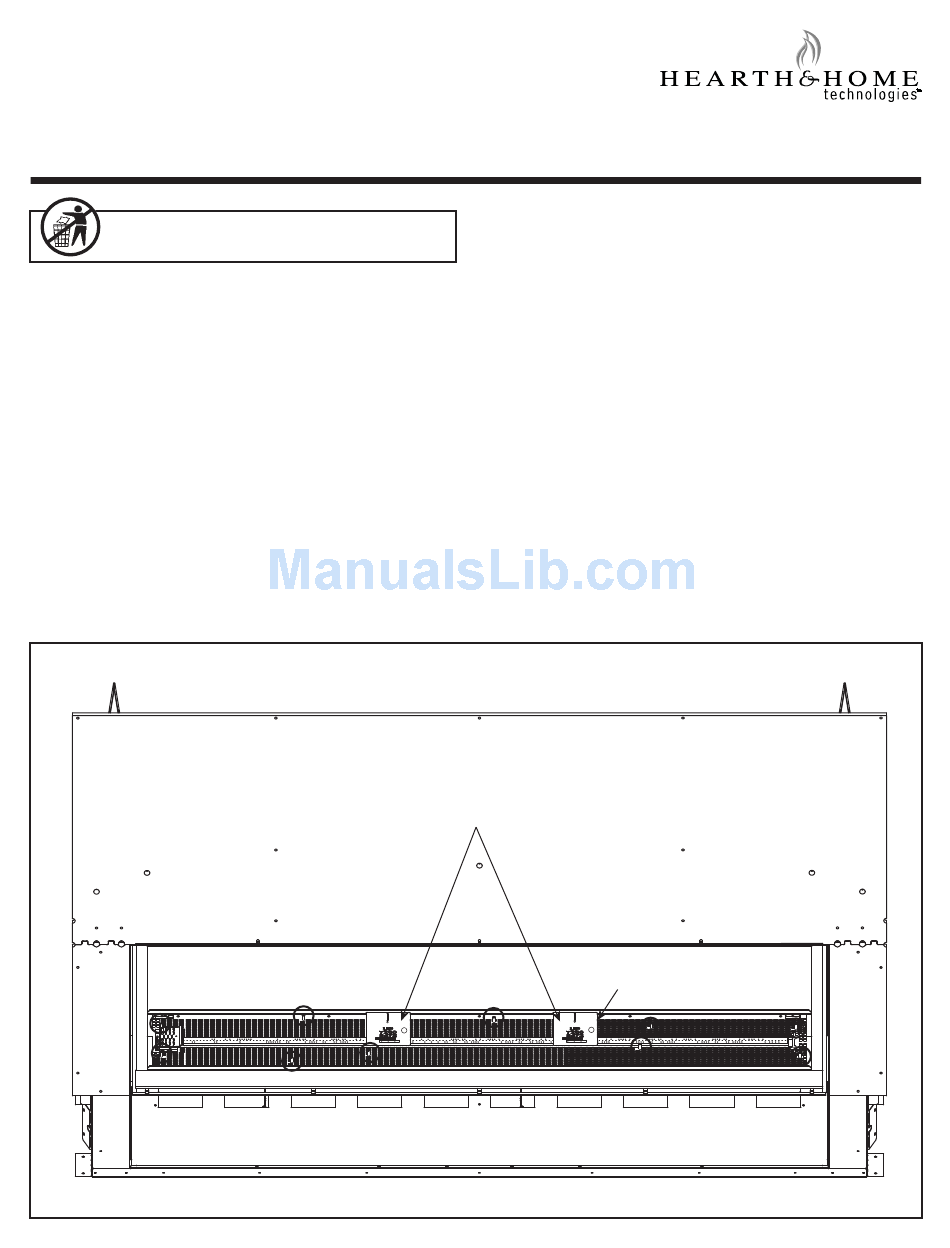

Figure 1. Burner Features - Shoulder Screw Locations
Hearth & Home Technologies • LOGS-60 Installation Instructions • 2321-948 Rev. D • 10/15
LOGS-60
MODELS: MEZZO1600
• Installation Instructions •
BURNER PORT FIXTURE LOCATIONS
(PILOT HOLES ON ROCK TRAY)
3
5
4
INSTALLATION
1. Remove decorative front.
2. Remove fi xed glass assembly by unlatching the four
top spring latches. Allow the fi xed glass assembly to tilt
away from the fi replace and lift the fi xed glass assembly
up and out of the opening.
3. Lift burner rails out of appliance.
4. Remove any existing media from appliance.
5. Install eleven shoulder screws into pilot holes in media
tray. Locations are indicated in Figure 1.
6. There are twelve burner port holes that must be plugged
in order to prevent sooting. There are in two groups of
six holes. A burner port fi xture will be installed on top of
the designated port holes. See Figure 1 for location.
7. Locate the slot on the rock tray and align the burner port
fi xture over the pilot hole.
8. Place burner port fi xture over pilot hole and secure us-
ing a self-tapping screw.
9 (BEHIND FIXTURE)
6
8
7
10
11
1
