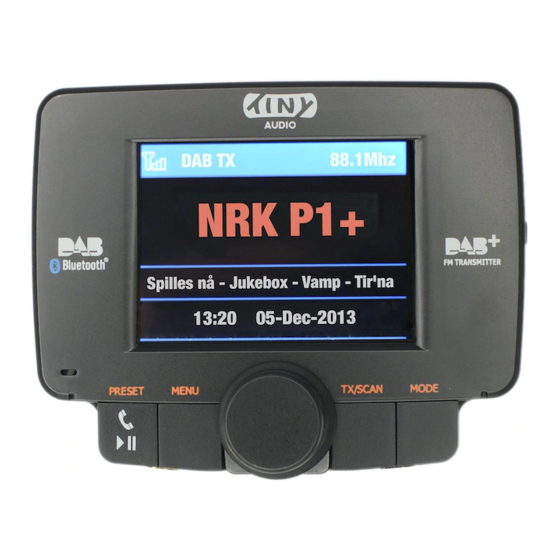

TT Micro TINY AUDIO C3 Manual

Dab+ digital radio receiver:
Hide thumbs

Advertisement

Table of Contents

Tiny Audio C3
English
TINY AUDIO C3
Please read carefully before using this product
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TINY AUDIO C3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TT Micro TINY AUDIO C3

  • Page 1 Tiny Audio C3 English TINY AUDIO C3 Please read carefully before using this product...

  • Page 2: Safety Instructions

    Tiny Audio C3 Safety Instructions: Do not use this radio near water. Clean with dry cloth. Do not block any ventilation openings. Do not use near heat objects. Use accessories provided by manufacturer. Do not dispose this radio to rain or moisture.
  • Page 3 Tiny Audio C3...
  • Page 4 Tiny Audio C3 Main unit and accessories 1. Main unit, DAB reciver Power cable / micro USB 3. 3.5 mm Aux cable 4. DAB, DAB+ antenna for main unit 5. Dash / window mounting bracket 6. Dual USB charger for 12/24V...
  • Page 5 Connect one end of the USB power supply cable to Micro USB socket in TINY AUDIO C3 and the other end to dual USB car charger. Plug the dual USB car charger to the car cigar-lighter socket.
  • Page 6 Tiny Audio C3 Remark: In “Aux-Out” mode, there will be no FM transmission to the car stereo. Receive signal from the In-Car DAB+ radio through FM transmission: --Select FM Transmitting Frequency (Auto Mode): Press and hold “MENU” button to enter menu mode, use Tuning Knob to search for “Aux IN/OUT Select”...
  • Page 7 Tiny Audio C3 --Select FM Transmitting Frequency (Manual Mode): Press “TX/SCAN” button to enter FM transmitting frequency selection mode, Then use Tuning Knob to select your favorite vacant frequency (based on your past experience with the known vacant frequency) which you would like to receive by your car radio.

  • Page 8: Service Information: Dab+ Mode

    Tiny Audio C3 may need to perform the “Auto Scan” again. The scanning operation is similar to your home TV set. Service Information: DAB+ mode The Service Information display -The Service Information data will be displayed with scrolling text which is being broadcasted from the station.

  • Page 9: Manage The Bluetooth Devices

    Manage the Bluetooth devices: Pairing a Phone: Paring a phone with TINY AUDIO C3 for the first time, follow the below procedures: Press the “MODE” button until you scroll the screen to “Bluetooth” mode In “Bluetooth” mode, press and hold “TX/SCAN” button to activate the TINY AUDIO C3 device into pairing mode, a message of “Pairing in...
  • Page 10 Manage Phone Call: When there is an incoming call, the TINY AUDIO C3 rings with a ringtone, press “PRESET” button to answer a call and at the same time the speaker...
  • Page 11 Use the “Tuning Knob” to select next or previous songs. Remark: Once your phone is paired to the TINY AUDIO C3, the connection between both devices will be automatically re-established each time you enter your vehicle if the TINY AUDIO C3 is powered on. TINY AUDIO C3 automatically...

  • Page 12: Selection Of Screen Background And Font Color

    If you want to connect TINY AUDIO C3 to another phone you already paired but not the last one, you have to first disconnect the last phone by selecting “Forget this Device”...
  • Page 13 Tiny Audio C3 Connecting and Mounting DAB+ Antenna Inside the car: Pull straight the specially designed DAB+ antenna and mounted in Position A as shown in the diagram below. Remark: Pull straight and fixed the end of antenna L-portion (50cm long) either horizontally with position A or vertically with position B.

  • Page 14: Connecting Aux-In

    Connecting Aux-IN: The TINY AUDIO C3 features a 3.5mm Aux-IN jack on the right-hand side. External analog audio source from iPad/iPhone/iPod/Tablet/Android phone or MP3 players etc. can be fed wirelessly through FM transmission into your car stereo audio...
  • Page 15 In “AUX IN/OUT Select” menu, use Tuning Knob to select “AUX IN” and confirm by pressing “MENU” button again, Connect an external audio source such as iPad2/iPhone/iPod or MP3 player etc. into “AUX IN” jack on the right-hand side of TINY AUDIO C3 with the provided 3.5mm audio cable. Charging iPad/iPhone/iPod/mobile phones/tablets/camera:...

  • Page 16: Select Language

    Tiny Audio C3 Select Language: Press and hold “MENU” button to enter menu Use Tuning Knob to scroll up or down to select “Language Setting” and confirm by pressing “MENU” button again Use Tuning Knob to select your desired language and confirmed by pressing “MENU”...

  • Page 17: Product Specification

    Power Source: Car Cigar-lighter Socket (10V- 30V) Dimension: 96x 75 x 248 mm • • Net weight: 128g ( approx.) *Information of this user manual is subject to change without prior notice. Tiny Audio is distributed by TT Micro AS – Salg@ttmicro.no – www.ttmicro.no...
