Summary of Contents for GEMMASTA GS10
-

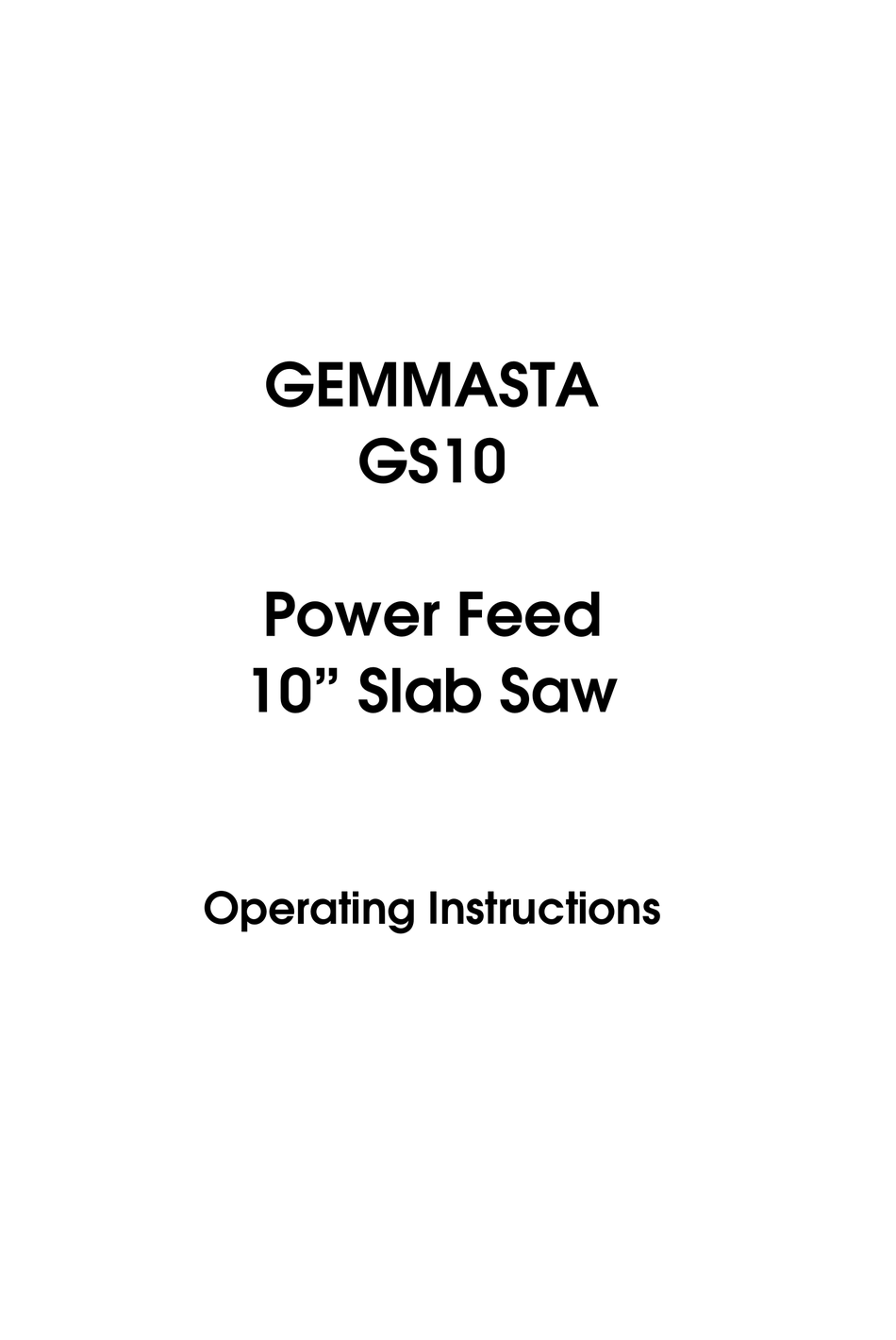

Page 1: Power Feed
GEMMASTA GS10 Power Feed 10” Slab Saw Operating Instructions... - Page 3 Lock the half nuts and lower the lid. Turn on the GS10 and allow the power feed to push the stone into the blade until the cut is finished and specimen in the vice has passed the cutting edge of the blade.
-
Page 4: Helpful Hints
PULLEY SPEEDS The GS10 saw has a fixed blade speed. The blade speed is set to give the most economical cutting with MK diamond saw blades and the sintered continuous rim diamond saw blades and efficient cutting for the Diatrenn diamond saw blades. - Page 5 MODEL GS10 THE GEMMASTA 10" POWER FEED SAW APPROX. WEIGHT 36 lbs. — 16 kg SAW GUARD BACK WING-NUT VICE LEVELLING SCREW GEAR BOX FRONT SCREW LEVER SLAB THICKNESS SCREW HANDLE MAIN SPINDLE SPEED 1425 R.P.M. SAFETY RELIEF FOR HALF NUTS...
- Page 6 COOLANT SHOULD BE BETWEEN THESE LEVELS OR HIGHER FOR LARGE STONES. FIG.4 ADJUST TEFLON PADS THUMB SCREW TO LIGHTLY TOUCH SIDES LOCKING SCREW AT REAR OF OF BLADE BEHIND MACHINE TO DIAMOND RIM. RAISE GUARD FIG. 6 PAD SCREWS BLADE STEADY LOCATED UNDER FIG.5 TABLE.
