Summary of Contents for RuggON VD03C

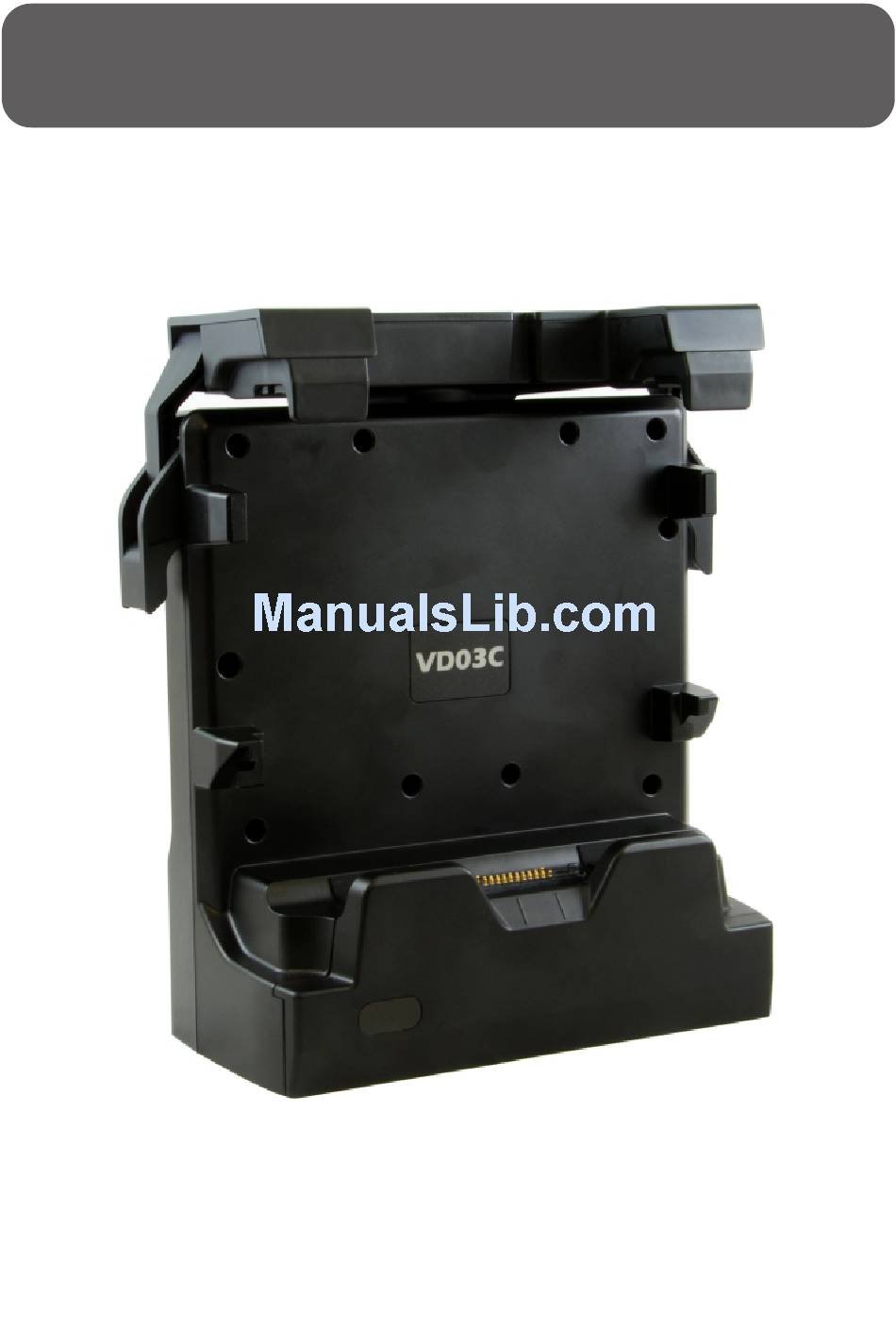

- Page 1 QUICK START GUIDE VD03C / VD03C-DIO...
- Page 2 Installing Vehicle Docking Overlook of Vehicle Docking Front side: Hook Lever Latch Alignment Post Docking Connector Connection Indicator Back side: Key Lock VESA Mount Screw Holes x4 Compartment Door (100x100mm) Open to install optional module Option 1: GP03 Option 2: GW01 For more information, please check spec table on page 5.
- Page 3 I/O Ports Define: To be the WWAN antenna VD03C connector when GW01 is installed. * Default is no function. To be the GPS antenna connector when GP03 or GW01 is installed. * Default is no function. USB A Typex4 VGA Out...
- Page 4 3. Push tablet forwards and make sure tablet is well connected and fixed with latches. 4. Press down levers on both sides at the same time. 5. Check connection indicator to make sure tablet is in the right position.
- Page 5 Connecting Power Cord With Cigar Lighter Plug 1. Connect power plug with DC-IN jack. 2. Insert cigar lighter adapter into car lighter. DC-INJack Cigar Lighter Adapter Connecting Power Cord With ACC Plug 1. Connect power plug with DC-IN jack. 2. Connect the other side of ACC cord with car accumulator DC-IN Jack...
- Page 6 97mm : 4xUSB 2.0 type A, 1xEthemet, 2x RS232, 1x VGA, 1x DC-IN VD03C I/OInterface VD03C-DIO: 4xUSB 2.0 type A, 1xEthemet, 1x RS232, 1x Digital I/O, 1x DC-IN Mounting 75mm x 75mm and 100mm x 100mm VESA mount supported SystemScrewHoles (* Mount is not included.)
