airnet AIR-SW8P User Manual

8-port 10/100mbps mini desktop switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

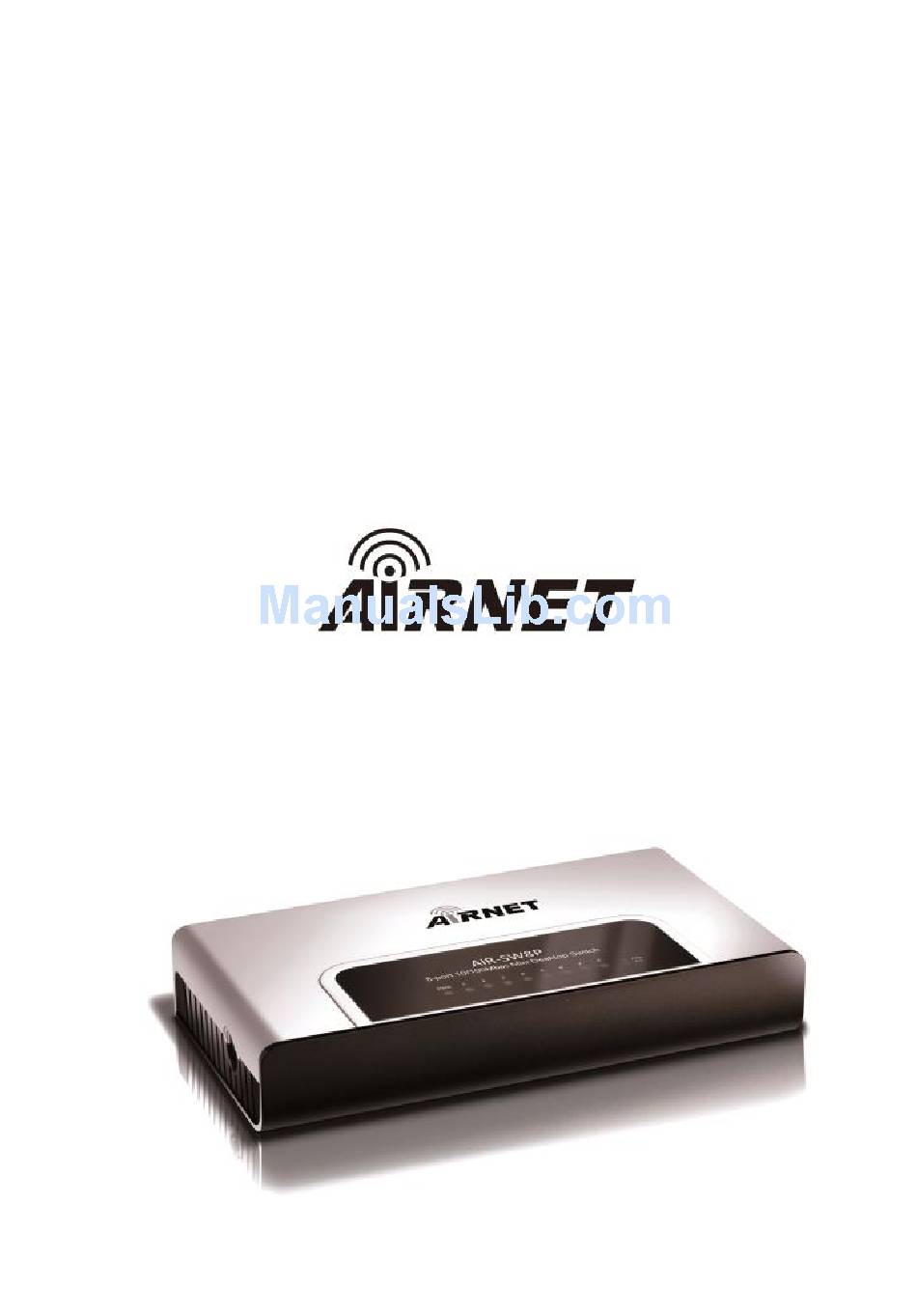

User Guide
AIR-SW8P
8-Port 10/100Mbps Mini Desktop
Switch
February, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIR-SW8P and is the answer not in the manual?

Questions and answers

Summary of Contents for airnet AIR-SW8P

  • Page 1 User Guide AIR-SW8P 8-Port 10/100Mbps Mini Desktop Switch February, 2013...
  • Page 2 FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation.

  • Page 3: Ce Mark Warning

    is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 4: Package Contents

    Package Contents The following items should be found in your box:  One AIR-SW8P 8-Port 10/100Mbps Desktop Switch  One Power Adapter  This User Guide Note: Make sure that the box contains the above items. If any of the listed items are damaged or missing, please contact with your distributor.

  • Page 5: Chapter 1. Introduction Of The Product

    Chapter 1. Introduction of the Product Thank you for choosing the AIR-SW8P 8-Port 10/100Mbps Desktop Switch. 1.1 Overview of the Product AIR-SW8P 8-Port 10/100Mbps Desktop Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports.

  • Page 6: Chapter 2. Installation

    with low traffic mode. In Low Power Idle mode, up to 59.7% of the power can be saved. Chapter 2. Installation Mounting the Switch on a Desk To install the Switch, please follow the steps: You can place the Switch on a flat desk. Please inspect the Power Adapter carefully and make sure that it is properly connected to a power source.

  • Page 7: Chapter 3. Identifying External Components

    This Chapter describes the front panel, rear panel and LED indicators of the Switch. Front Panel Figure 3-1 AIR-SW8P Front Panel The Switch’s LEDs are located on the front panel.  Power LED: This indicator will light up when the Switch powers up.
  • Page 8 The following parts are located on the rear panel:  Port (1-8): The AIR-SW8P Switch is equipped with 8 10/100Mbps Auto-Sensing RJ45 ports where you will connect your network devices. The working status can be indicated by the corresponding LEDs on the front panel.

  • Page 9: Appendix: Specifications

    Appendix: Specifications Specifications Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex) Data Transfer Rate Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex) 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Network Media(Cable) 100BASE-Tx: UTP category 5, 5e cable (maximum...

This manual is also suitable for:

Air-sw5p
