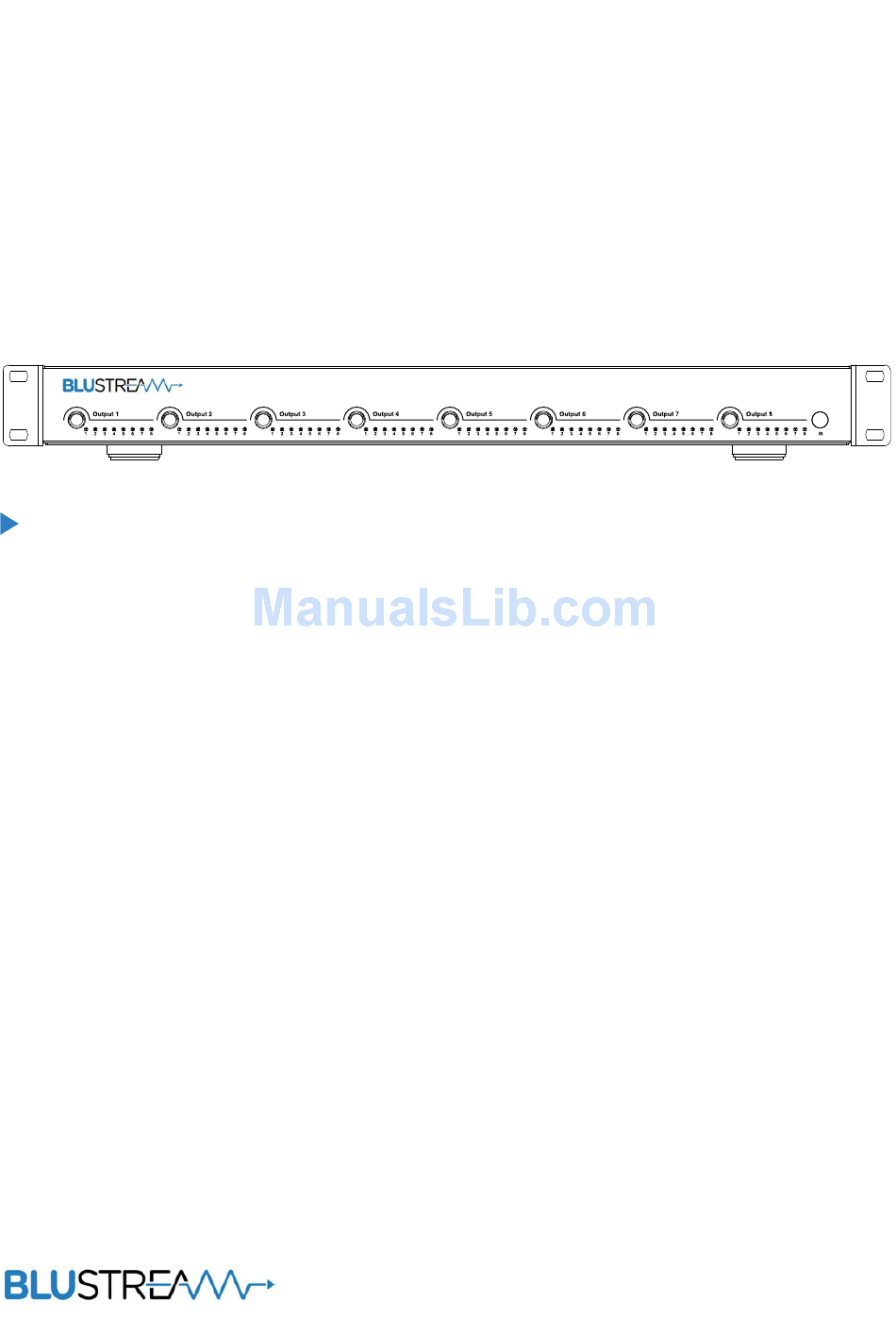

- Page 1 MX88ED User Manual...
-
Page 2: Table Of Contents
RS-232 Pin Assignment shock, lightning strikes, etc. Use of surge protection systems is highly Package Contents recommended in order to protect and extend the life of your equipment. Maintenance contact support@blustream.co.uk / support@blustream.com.au... -

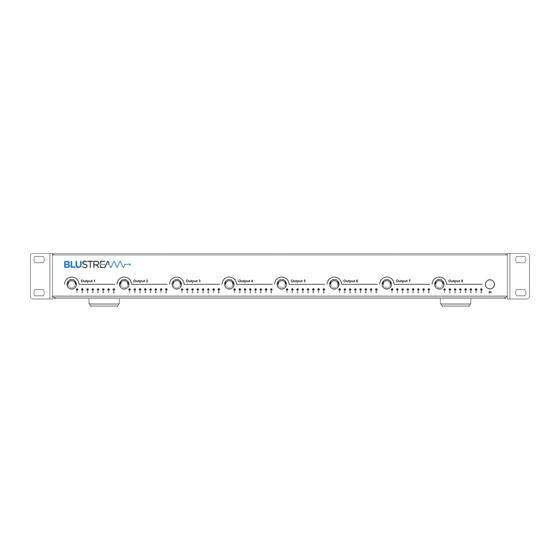

Page 3: Introduction
HDMI output selection button 1 to 8 – Press to toggle between the source inputs 1 to 8 for that specific zone output. Source LED indicator – Show what source is currently selected in this zone IR receiver window – IR receiver enabling remote control of the MX88ED. Rear Panel MX88ED HDMI inputs 1 to 8 –... -
Page 4: Remote Control Descriptions
2 to output 2, etc ing INPUT 1-8 or the ALL button eDID seT up NOTE: Press button sequence should be The MX88ED provides a comprehensive finished in 5 seconds, otherwise the opera- range of EDID settings. Below are three ex- tion is discarded. -
Page 5: Application Diagram
MX88ED User ManUa l CONNECTION DIAgRAM contact support@blustream.co.uk / support@blustream.com.au... -
Page 6: Specifications
Flow Control: None Package Contents: Maintenance • 1 x MX88ED Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. • 1 x 12V/5A DC power supply • 1 x Remote control •... - Page 7 / www.blustream.com.au...
