Craig CMA3594 Owner's Manual

SIZE: 78X158mm
BT (Bluetooth) mode
The first time you use the unit or pair it to a new
Bluetooth Device, please follow these instruction:
1. Power on the unit as previous procedures.
2. The unit will enter to Bluetooth mode automatically. The
Blue Indicator on the rear of unit will light and blinking.
3. Power on the external Bluetooth Device and enter to
searching mode. Start pairing following the on screen
instructions from the external Bluetooth device. After
paired, the Blue Indicator will stop blinking.
Notes:
When the external BT player searched the unit, our
●
model number"CMA3594" will appear on the display
of external BT device.
Pairing code"0000" or "1234" may need to enter.
●
Normal operation after pairing:
1. Power on the unit as previous procedures.
2. The unit will enter to Bluetooth mode automatically.
Wait a few seconds until the Blue Indicator stop blinking.
3. Plays the music in the connected Bluetooth Device as
usual.
4. During playback:
Press and release the or Button repeatedly to skip
●
tracks.
Press the Button to pause, press again to resume
●
normal playback.
5. If the unit is paired to a Cell Phone and a call is incoming
during music listening:
Press the Button to pause the music then speak to
●
the built-in microphone to answer the call. When your
call is complete, press the Button to hook on and
resume to music playback.
4
STEREO PORTABLE SPEAKER
STEREO PORTABLE SPEAKER
with Color Changing Lights and
with Color Changing Lights and
Bluetooth Wireless Technology
Bluetooth ® ® Wireless Technology
Owner's Manual
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
Model: CMA3594
AUX IN:
To listening from the external Music player such like MP3
Player, Discman ...etc.
1. In power on mode, connect the 3.5mm stereo Plug from
the supplied Audio Connection Cable to the AUX
Out/Line Out/Phone Jack on the external Audio Player.

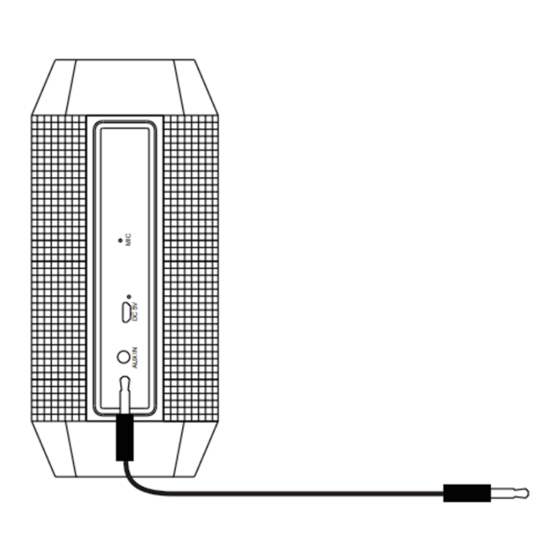

2. Connect the other end to the AUX (In) Jack on the rear
of unit as the figure below:
To AUX Out/Line
Out/Phone Jack on
the external Audio Player
3. Plays the music on the connected Player as usual. (Make
sure the volume level of the connected music Player is
turned to high level. Otherwise, sound from this unit is
weak)
NOTE: If the Audio Connection Cable was plugged in the
AUX (In) Jack, the BT function will auto cut. Unplug the
Cable from the AUX (In) Jack before use BT function.
5
FCC INFORMATION:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures :
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and
●
receiver.
Connect the equipment into an outlet on a circuit
●
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
●
technician for help.
FCC WARNING:
This equipment may generate or use radio frequency
energy. Changes or modifications to this equipment may
cause harmful interference unless the modifications are
expressly approved in the instruction manual.
Modifications not authorized by the manufacturer may
void user's authority to operate this device.
Note:
Refer all servicing to qualified service personnel. Servicing
is required when the unit has been damaged any way such
as the following: the power-supply cord or plug has been
damaged, liquid has been spilled in to the unit,the unit has
been exposed to rain or moisture, the unit has been dropped
or the unit does not operate normally.
l. The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquid, such as
vases, shall be place on the apparatus.
2. Where the MAINS plug or an appliance coupler is used
as the disconnect device, the disconnect device shall
reaily operable.
1
Troubleshoothing:
Can't power on Built in battery consumed Recharge the battery
No sound or sound Volume of the unit was set Increase the volume by
weak to minimum position press and hold the
Button
Volume of paired/ Rise the volume level or
connected device in low paired BT device
level
Sound distortion Volume level too high Reduce the volume level
by press and hold the
Button
Volume level of the Reduce the volume level
connected/paired device of the connected/paired
too high device
BT not functioning The external BT device Place the external BT
too far from the unit device close to the unit
Specification:
Power Source
Built-in DC 3.7V, 1200 mAH
(4.44WH) Li-ion rechargable battery;
Recharge by DC 5V, 500mA
through Micro USB port
BT Version 2.1+EDR
BT Effective range Up to 32 feet in open area
Audio Power 1.5W Per channel (Total 3W RMS)
Impedance of speaker 3W ; 4 Ohm x 2
SPECIFICATIONS ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Accessories:
1 x Instruction Manual
1 x USB Connection Cable (For charge only)
1 x Audio Conection Cable with 3.5mm stereo mini plugs
6
Battery Recharge:
The unit has a built in Li-ion rechargeable battery, recharge
it before use as follow:
Connect the Micro USB plug from the supplied USB
●
connection Cable to the Micro USB Port on the rear of unit.
Connect the full size USB plug from the supplied USB
●
Connection Cable to the USB port on a computer or any
USB charger having DC 5V, 500mA output. (During
charging, the Red Indicator on the rear of unit will illuminate.
When finished, it will turned off).
To computer or any USB Charger
Notes:
Your battery will last longer if you following these simple
guidelines for charging and storing.
A . Recharging and store the unit within the temperature
range of 5°C~35°C (40°F~95°F).
B . Do not over charge (longer than 24 hours). Excessive
charging or running the unit until battery goes empty
will damage battery. Battery life will be extended if you
keep the battery fully charge.
C . Battery life naturally shortens slowly over time.
D . The rechargeable battery incorporated in this product
is not user replaceable.
Location of Controls:
6
7
3
8
2
1
5
4
9
2
1. Micro USB Port (For charge only)
2. Indicators
3. Built-in Microphone
4. AUX (in) Jack
5. Power ON/OFF Button
6. Button
7. Button
8. Button
9. Button
OPERATON:
General operation:
1. Power on the unit by press and hold the Power
ON/OFF Button approximate 3 seconds.
2. Press the Button to turn ON/OFF the decorative light.
3. Press and hold the or Button to adjust volume level.
4. When finish listening, press and hold the Power
ON/OFF Button to shut off.
3
