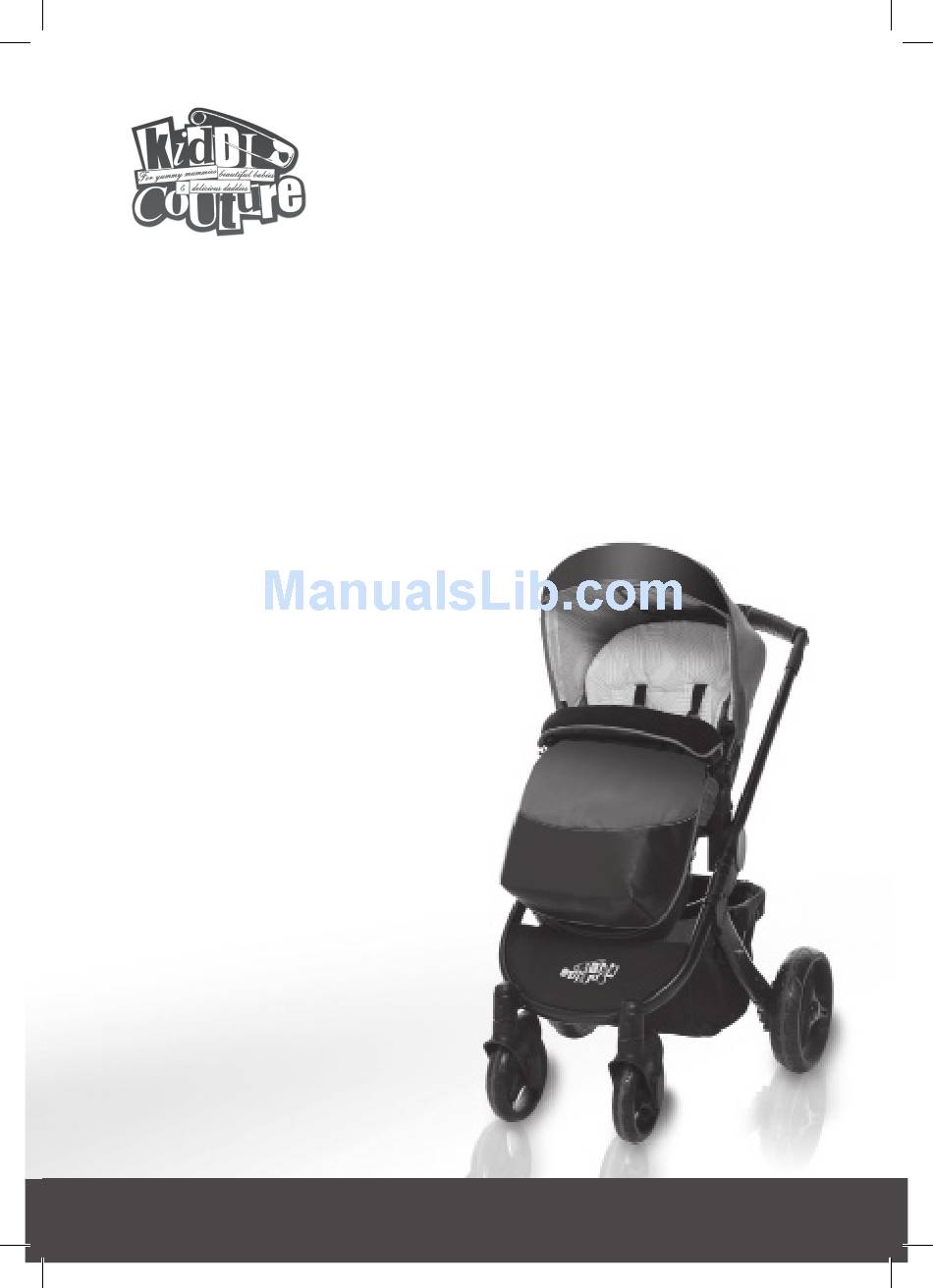

Kiddicare KC18949 User Manual

Kiddicouture willz travel system chassis and seat unit
Hide thumbs Also See for KC18949:

Advertisement

Quick Links

Willz Travel System
Chassis and seat unit
Suitable for children from
6 months up to 15kg.
Instructions:
Please read
carefully and keep for future
reference. Your child's safety
may be affected if you do
not follow these instructions
This product is tested to: BS EN
1888:2003 (A1-A3:2005)
User guide
1.
kiddicare

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC18949 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kiddicare KC18949

  • Page 1 Suitable for children from 6 months up to 15kg. Instructions: Please read carefully and keep for future reference. Your child’s safety may be affected if you do not follow these instructions This product is tested to: BS EN 1888:2003 (A1-A3:2005) User guide kiddicare...
  • Page 2: Safety Comes First

    Safety comes first WARNING: To avoid injury ensure WARNING: Always apply the brakes that your child is kept away when when the pushchair is stationary, and unfolding and folding this product. when placing and removing children. WARNING: Do not let your child play WARNING: Taking children up or with this product.
  • Page 3 If you have a query with this product platform will not be covered by the or require replacement parts, please warranty. email hello@kiddicare.com Other attachments Lay out the parts on a soft level The Willz chassis is designed to surface and compare to the parts be compatible with the Willz seat checklist on page 3.
  • Page 4: Part Checklist

    Part checklist Contained in your carton are: Part Chassis Seat unit Rear wheels Front wheels Bumper bar Hood Raincover Footmuff Basket (attached to chassis)
  • Page 5: Front Wheel Assembly

    Opening the pushchair “click” “click” Pull the storage latch (A) and at the Keep lifting the chassis until the locks same time, holding the handle (B), on each side of the chassis click into lift the chassis. place. Front wheel assembly “click”...
  • Page 6: Rear Wheel Assembly

    Rear wheel assembly “click” Push the rear wheel axles firmly into To remove, pull tab (B) and pull the the holes on the rear of the chassis. wheel off. Ensure both wheels click into place and check they are firmly attached by pulling each wheel.
  • Page 7: Using The Brakes

    Using the brakes Press down on the brake lever (A) to apply the brakes. Lift the brake lever up to release the brakes. Note: Never force the brake lever down. If there seems to be too much resistance then gently roll the pushchair backwards and forwards whilst pressing down on the brake lever.
  • Page 8 Attaching/removing the seat unit Note: The seat unit can be attached forward-facing or parent facing. To attach: Line up the connectors (A) on each side of the seat unit with mounting points (B) on the chassis and lower the seat onto the chassis, ensuring it clicks into place.
  • Page 9 Adjusting the seat unit recline Press in BOTH buttons (A) located on each side of the seat unit and tilt the seat unit to the required position. Ensure the seat unit is locked in position (A) and that both buttons have popped back out before letting go of the seat.
  • Page 10: Attaching The Bumper Bar

    Attaching the bumper bar Line up connectors (A) on each side of the bumper bar and push into the mounting brackets (B) until they click into place. Pull the bumper bar to check it is inserted correctly. To remove: press both release buttons (C) on the underside of the mounting brackets and pull the bumper bar from the brackets...
  • Page 11 Attaching/removing the hood To attach: Place the back of the To remove: Pull up on the release tabs hood over the seat unit, and slide (A) and slide the hood up and off the both connectors (A) over the mounting points. mounting points (B).
  • Page 12: Attaching The Rain Cover

    Attaching the raincover Place the raincover over the seat unit ensuring the window panel (A) is at the front. Warning: The raincover is for outdoor use only. The cover must be removed or folded back if the child remains in the pushchair indoors, otherwise the child may overheat.
  • Page 13 The safety harness Clip the shoulder strap clips (A) onto the loop of the waist strap connectors (B). Push the waist strap connectors (B) into the buckle (C) until they click into place. Adjust the sliders on the waist and shoulder straps so that the harness fits snugly.
  • Page 14 Positioning the harness shoulder and waist straps The shoulder straps and waist straps can be repositioned to suit the size of your child. Use the shoulder straps in one of the three slots that are closest to your child’s shoulder height and position the waist strap in one of the two slots that best suits your child’s waist size.
  • Page 15 Positioning the crotch strap The crotch strap has two slot positions and should be used in the slot that best suits your child’s size. Use the inner slot for smaller babies. To reposition the crotch strap feed the buckle up through the seat base and then back down through the slot position of your choice.
  • Page 16 Fitting the footmuff Unfasten the buckle (A) and unclip the shoulder straps (B) from the waist connectors. From the back of the footmuff; pass the shoulder straps through slots (C1, C2 or C3), pass the waist straps through slots (D1 or D2) and pass the crotch strap through slots (E1 or E2).
  • Page 17: Folding The Pushchair

    Folding the pushchair Note: The chassis can be folded with the seat unit attached in the forward facing mode and is shown here without the seat unit for illustration purposes only. The chassis CANNOT be folded whilst the seat is in the parent facing mode.
  • Page 18 Notes...
  • Page 19 Notes...
  • Page 20 1 Club Way, Cygnet Park, Hampton, Peterborough, Cambridgeshire, PE7 8JA Email: hello@kiddicare.com...
