Summary of Contents for Microseven Systems MSHDVS1CHD

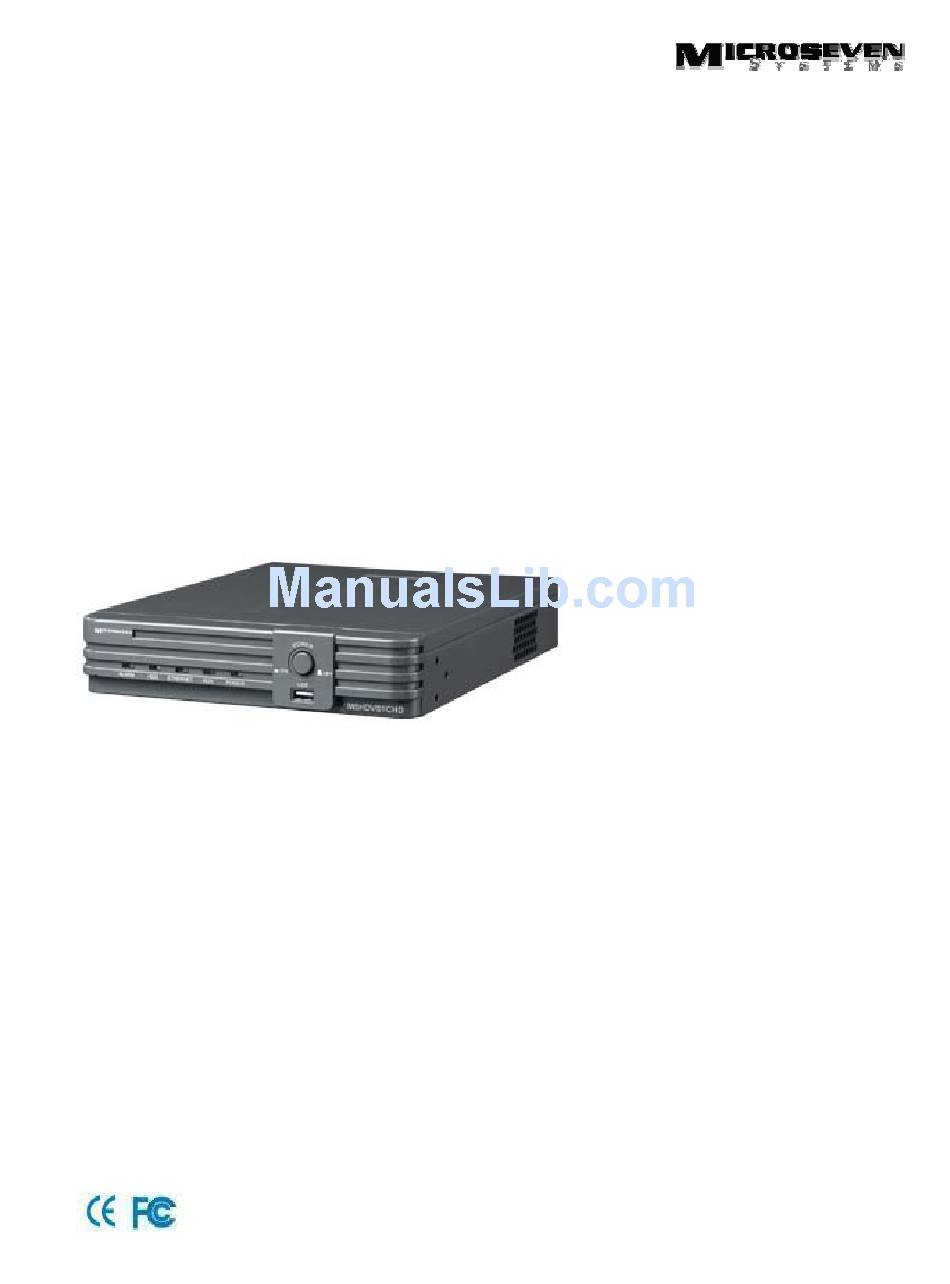

- Page 1 Product Operation Manual MSHDVS1CHD 1CH Network Digital Video Server Microseven Systems, Inc. Walnut, California 91789, USA...
-
Page 2: Copyright Notice
Copyright © 2002-2008 Microseven Systems, Inc. All Rights Reserved. Microseven Systems, Inc. provides this operation manual “as is” without warranty of any kind, either express or implied, including, but not limited to the implied warranties of merchantability and fitness for a particular purchase. Microseven Systems, Inc. may make improvements and/or changes in the product(s) and/or the program(s) described in this manual at any time and without notice. - Page 3 Model: Product No. © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
-
Page 4: Table Of Contents
…………………………………………………………………………………………… 6 3. Notes ……………………………………………………………… 4. Instructions of Main Parts ………………………………………………………………..……… 5. Setup and Application ………………………………… 8. Basic System Diagram and Operating Circumstance ……………………...…………………………………………………… …… 6. Specification ……………………………………………………………… 8. Common Questions & Answers © 2002-2008 Microseven Systems, Inc. All Rights Reserved. -
Page 5: Preface
- 5 - 1. Preface MSHDVS1CHD 1CH network digital video server is a digital product based on network transmission, which adopts embedded real-time multi-tasking operating systems (RTOS) and embedded CPU processor, and with the function of video signal and audio signal synchronization compression. -
Page 6: Notes
Confirm whether install the hard disk during the initial installation, and notice the line jump to the main disk status; Do not open the box without any professional personnel, please contact manufacturer when malfunction happens. © 2002-2008 Microseven Systems, Inc. All Rights Reserved. -
Page 7: Instructions Of Main Parts
Abnormal operating procedures Normal-Off Normal-On Network connected Ethernet（Green） Normal-Off / Flittering Network unconnected Flittering HDD in writing / reading HDD（Green） Normal-Off HDD no working Normal-On Alarm signal ALARM（Red） Normal-Off No alarm signal © 2002-2008 Microseven Systems, Inc. All Rights Reserved. - Page 8 4.3 Alarm Port and RS485 Port A. Alarm input/output and RS485 port definition ① RS485 transmitting(Tx+) ② RS485 transmitting (Tx-) ③ RS485 receiving (Rx-) ④ RS485 receiving (Rx+) ⑤ Reserved ⑥ Alarm output (A) © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
- Page 9 ⑨ Alarm input (B) B. Sketch Map for Alarm input/output and RS-485 Port Note: Both the alarm input and output are I/O, A and B are the 2 ends of the I/O. © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
-
Page 10: Setup And Application
Microseven ® MSHDVS1CHD 1CH Network Digital Video Server - 10 - 5. Setup & Application The following is the basic system chart of MSHDVS1CHD network video server. 5.1 Hardware Setup Steps RS485 Tx （ ＋） RS485 Tx （ －） Alarm input... - Page 11 B. Screw off the screw on the top cover, and remove the top cover, which shows as follows: ① Screw ② Top cover ③ Box C. Screw off the screw on the hard disk bracket, and remove hard disk bracket. © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
- Page 12 - 12 - D. Fix the hard disk onto the bracket with the HDD fixed screws (keep the power port and IDE port backward) E. Install HDD bracket, and tighten the HDD fixed screws. © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
- Page 13 Install the brackets onto the 2 sides of MSHDVS4CHD separately, and fix it with 6 screws ( M3*10). Install the MSHDVS4CHD to the mounting rack with mounting brackets, and fix it with the 4 screws (accessories not included). © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
-
Page 14: Basic System Diagram And Operating Circumstance
Protocol DNS, DHCP Network IE Application Built-in web server, allows IE browsing and controlling Network Time Check Provide the interface for network time checking Equipment Search Support equipment searching by Ethernet broadcasting © 2002-2008 Microseven Systems, Inc. All Rights Reserved. -
Page 15: Common Questions & Answers
A: Check if the network is connected and the path of the upgraded files are correct, and check if there is any access authority allowed. Note: Please contact us at support@microseven.com if above problems still cannot be solved by following this manual. © 2002-2008 Microseven Systems, Inc. All Rights Reserved.
