Related Manuals for hopf 6842 GPS
Summary of Contents for hopf 6842 GPS

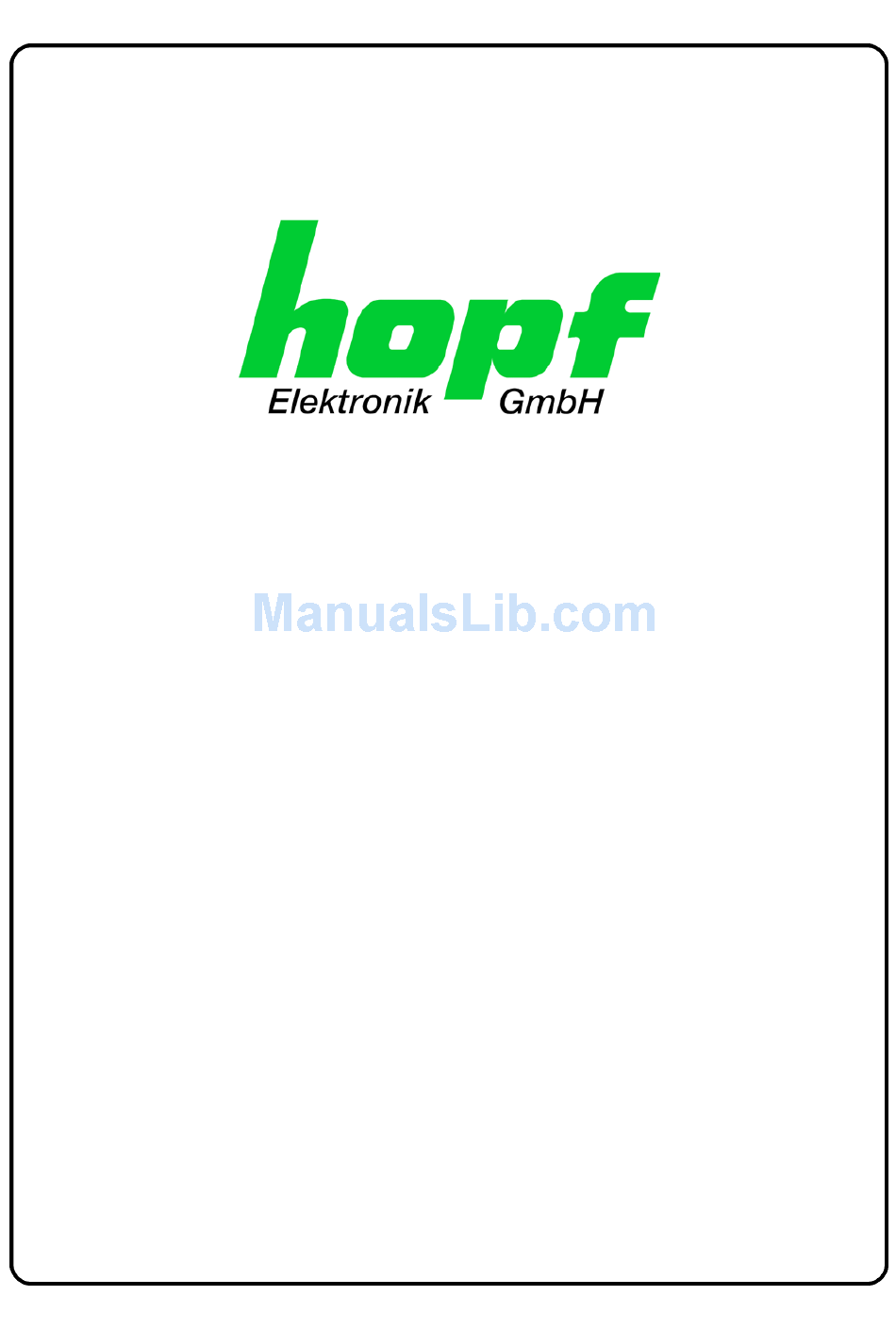

- Page 1 Industriefunkuhren _____________________________________________________________ Technical Manual Slim Line System Model 6842 GPS ENGLISH Version: 09.01 - 07.09.2009 _____________________________________________________________ Valid for Devices 6842 GPS with FIRMWARE Version: 09.xx...
- Page 2 2 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
- Page 3 Disregard may impact function of system/device. Information Notes and Information. 6842 GPS Slim Line System - V09.01 3 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
- Page 4 - and may be released for sale within the common markets. 4 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
-
Page 5: Table Of Contents
4.1.1.5 Serial Interface Parameters ......................29 6842 GPS Slim Line System - V09.01 5 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... - Page 6 5.3.3 NTP (Network Time Protocol) .................... 57 6 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
- Page 7 6.5 Removing Function Boards ..................80 6842 GPS Slim Line System - V09.01 7 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
- Page 8 11.2.2.2 DCF77 Pulse (1Hz)........................97 12 Glossary ........................98 8 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
-
Page 9: System Description: 6842 Gps Slim Line (1U)
Elektronik GmbH. 6842 GPS Slim Line System - V09.01 9 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... - Page 10 Customer-specific system adaptations for "tailor-made" project solutions. 10 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
-
Page 11: System 6842 Gps Slim Line (1U) Design
(For Replacement by Function Board) DCF-Sim Send (77.5kHz) Antenna 6842 GPS Slim Line System - V09.01 11 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 12: Display
GPS or the status delay is active 12 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 13: System Bus 6000
6842 GPS Slim Line System - V09.01 13 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 14: Quick Install
• Status LEDs • Error relays 14 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 15: Installation
The System 6842 can be damaged if incorrect voltage is connected. 6842 GPS Slim Line System - V09.01 15 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 16: Safety And Warning Instructions
In this case the device should be checked in the factory. 16 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 17: Dc Power Supply (Option)
6842 GPS Slim Line System - V09.01 17 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 18: Synchronization Source Connection (Gps)
Function Boards present in the system. 18 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 19: Commissioning
The Power Status LED and the red Sync LED light up on the front and rear sides for both types of power supply. 6842 GPS Slim Line System - V09.01 19 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 20: Display After System Start/Reset (Firmware)
(R=Radio) 20 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 21: Keypad Functions
ENTER frame. 6842 GPS Slim Line System - V09.01 21 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 22: Keypad Inputs / Main Menu Activation
All additional settings are to be carried out in accordance with the requirements and use of the equipment. 22 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 23: System Parameterization And Operation
TIME OUTPUTS DISPLAY/DCF 1.27 SYSTEM STATUS 1.28 KEY-WORD 6842 GPS Slim Line System - V09.01 23 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... - Page 24 4.06 PROGRAMM RESET 4.07 MASTER RESET 24 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
-
Page 25: Set Menu - Basic Settings System 6842
The changeover dates are to be entered for countries which change their time zone during the year. 6842 GPS Slim Line System - V09.01 25 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 26: Input Local Time To Utc Time Offset (Time Zone)
The exact points of time are then calculated automatically for the current year. 26 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... - Page 27 +1 hour 02:00:01 01:00:01 +1 hour 6842 GPS Slim Line System - V09.01 27 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
-
Page 28: Input Position
Position-fix. 28 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 29: Serial Interface Parameters
COM0. 6842 GPS Slim Line System - V09.01 29 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 30: Lan Board Parameters (Option)
The parameters for LAN Board 2 are entered in the same way as for LAN Board 1. 30 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 31: Frequency Output (Option)
There is no output done at the pulse output if all bits are set to "0". 6842 GPS Slim Line System - V09.01 31 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 32: Selection Of The Display And Dcf77 Simulation Time Base
These bit combinations should always be set for compatibility reasons 32 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 33: Key-Word Function For Keypad
6842 GPS Slim Line System - V09.01 33 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 34: Fail-Safe Storage Of The Input Data
SHOW function. 34 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 35: Show Menu - Display Of The System 6842 Base Settings
After a year change the clock system automatically recalculates the ST/WT changeover points of time. 6842 GPS Slim Line System - V09.01 35 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 36: Position
In the above example the position of Elektronik GmbH is displayed. 36 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 37: Satellite Values (Gps)
Under very good signal/noise conditions the values are 060 - 108 6842 GPS Slim Line System - V09.01 37 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 38: Serial Interface Parameters
COM0 interface display. 38 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 39: Lan Board Parameters (Option)
The LAN Board 2 parameters are displayed in the same way as for LAN Board 1. 6842 GPS Slim Line System - V09.01 39 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 40: Frequency Output (Option)
No function is assigned to these bits at present. 40 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 41: Error Byte
Further information and an explanation of the parameters can be found in the description of the Function Board 7406. 6842 GPS Slim Line System - V09.01 41 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 42: Ini Menu - System 6842 Extended Settings/Functions
On exiting the program via the BREAK key the last displayed value is stored in a failsafe manner. 42 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 43: Delayed Dcf77 Simulation And Dcf77 Pulse Switch-Off
On exiting the program via the BREAK key the last displayed value is stored in a failsafe manner. 6842 GPS Slim Line System - V09.01 43 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 44: Dcf77 Pulse Width
On exiting the program via the BREAK key the last displayed value is stored in a failsafe manner. 44 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 45: Position-Fix Gps Reception And Synchronization Mode
A C C U R A C Y Y / N _ 6842 GPS Slim Line System - V09.01 45 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 46: Program Reset
Master Reset is executed by pressing the Y key. 46 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 47: Com0 / Com1 Serial Interfaces
300 baud • 00150 for 150 baud 6842 GPS Slim Line System - V09.01 47 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... - Page 48 If the data entry is valid the new settings are transferred. 48 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
-
Page 49: Configuration Of The Data String (Mode Byte)
UTC (Universal Coordinated Time) Local time 6842 GPS Slim Line System - V09.01 49 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 50: Mode Byte 1 / Bit 6 - Serial Output Second Forerun
See also Chapter 5.2 Data String Transmission Points of Time. 50 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 51: Mode Byte 1 / Bit1-Bit0 - Data String Transmission Point Of Time
NMEA - GPRMC on SAT 1703 Time String 6842 GPS Slim Line System - V09.01 51 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 52: Serial Transmission Data Format
The clock transmits the Time / Date (UTC Time) data string after approx. 2550 milliseconds. 52 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 53: Data String Transmission Points Of Time
Start of Text End of Text 6842 GPS Slim Line System - V09.01 53 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 54: Data Strings
System 6870 Standard with control characters 54 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 55: Hopf Standard String (6021)
(high accuracy) 6842 GPS Slim Line System - V09.01 55 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 56: Example
( ) - ASCII-control characters e.g. (STX) 56 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 57: Ntp (Network Time Protocol)
Standard String (6021) with UTC as Time Base (3. ASCII character) 6842 GPS Slim Line System - V09.01 57 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 58: Sinec H1
$21 / $20 ETX (end of text) 58 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 59: Status
• no announcement ST/WT change over 6842 GPS Slim Line System - V09.01 59 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 60: Hopf 2000 - 4 Digit Year Output
CR (carriage return) ETX (end of text) 60 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 61: Status
( ) - ASCII-control characters e.g. (STX) 6842 GPS Slim Line System - V09.01 61 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 62: T-String
It is Thursday 18.07.02 - 12:34:56 o'clock 62 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 63: Hopf Master/Slave-String
This setting guarantees the best control of the time basis in the slave systems. Blocked: 6842 GPS Slim Line System - V09.01 63 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 64: Structure
+ 02:30h (STX)831234560301969100(LF)(CR)(ETX) 1001 + 11:00h 64 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 65: Status
The difference time to UTC is +2.30 h 6842 GPS Slim Line System - V09.01 65 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 66: Ibm Sysplex Timer Model 1+2
CR (carriage return) LF (line feed) 66 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 67: Status
• 50th day of the year 6842 GPS Slim Line System - V09.01 67 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 68: Sinec H1 Extended
$21 / $41 / $20 ETX (end of text) 68 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 69: Status
• no announcement ST/WT change over 6842 GPS Slim Line System - V09.01 69 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 70: Nmea - Gprmc
• time base = UTC Blocked: 70 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 71: Structure
All information will be transmitted as ASCII characters. 6842 GPS Slim Line System - V09.01 71 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 72: Status
10:16:40 o'clock and 00 hundredth seconds • checksum 03 72 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 73: Timeserv For Windows Nt Pcs
See Chapter 5.3.8 IBM Sysplex Timer Model 1+2. 6842 GPS Slim Line System - V09.01 73 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 74: Data String Aloha
• 50th day of the year 74 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 75: Sat 1703 Time String
CR (carriage return) LF (line feed) 6842 GPS Slim Line System - V09.01 75 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 76: Status
It is Thursday 18.07.02 - 02:34:45 o'clock UTC • time synchronisation by GPS 76 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 77: Function Boards
The details of slots which are wired at the time of delivery can be found in the System drawing / specifications. 6842 GPS Slim Line System - V09.01 77 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 78: Function Boards For The System 6842 Gps Slim Line (1U) - Summary
If you require a function that is not covered by the Function Boards listed please ask us! 78 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 79: Exchanging A Function Board
The details of slots which are wired at the time of delivery can be found in the System drawing / specifications. 6842 GPS Slim Line System - V09.01 79 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 80: Removing Function Boards
System. 80 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 81: System Indicators / Fault Analysis / Troubleshooting
GPS receiver calculated the position correctly and was / is therefore synchronous (see Chapter 4.1.2.3 Position). 6842 GPS Slim Line System - V09.01 81 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 82: Error Byte Display
Function Boards without system-internal modifications. 82 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 83: Serial Output Of Data Telegrams
Power supply failure • Power supply unit defective 6842 GPS Slim Line System - V09.01 83 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 84: Power Led "On" - No Display And No Output
A board that is integrated into the System is faulty 84 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 85: No Gps Reception / No Synchronization
• Indirect lightning protector irreversibly damaged by excess voltage • Antenna faulty 6842 GPS Slim Line System - V09.01 85 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 86: No Dcf77 Antenna Simulation / Dcf77 Pulse
The connection to the serial interfaces is not correct (e.g. TxD and RxD cables transposed). 86 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 87: Incorrect Time Output
The respective board description should be consulted for error analysis of an individual Function Board. 6842 GPS Slim Line System - V09.01 87 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 88: Support From The Hopf Company
Support team. 88 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 89: Maintenance / Care
6842 GPS Slim Line System - V09.01 89 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 90: Technical Data System 6842 Gps Slim Line (1U)
Function display (Power LED) Green LED 90 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... - Page 91 EMC (Electromagnetic Compatibility) / EN 610000-4-2 /-3/-4/-5/-6/-11 Interference Resistance: 6842 GPS Slim Line System - V09.01 91 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
- Page 92 Company reserves the right to modify hardware and software at any time. 92 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
-
Page 93: System Drawing
YSTEM RAWING System Drawing 6842 GPS Slim Line System - V09.01 93 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 94: Appendix
Outdoor antenna required – Limited antenna cable lengths 94 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 95: Dcf77 (German Long-Wave Transmitter Frankfurt 77.5Khz)
DCF77: D = Deutscher (German), C = Long-wave transmitter, F = Frankfurt, 77 = frequency 6842 GPS Slim Line System - V09.01 95 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... - Page 96 Start bit of the coded time information P1, P2, P3 Test bits 96 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
-
Page 97: Advantages And Disadvantages Dcf77
In this digital form the signal can then also be transmitted via a fiber optic cable, for example. 6842 GPS Slim Line System - V09.01 97 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com... -
Page 98: Glossary
Panel high for 19" housings (English) Coordinated Universal Time 98 / 98 6842 GPS Slim Line System - V09.01 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
