Summary of Contents for ISC GLDS 5 Gardenline
- Page 1 GLDS 5 Gardenline , Ex, UK Artikel-Nr.: 3425173 Druckspritze Aldi UK Ident-Nr.: 01014...

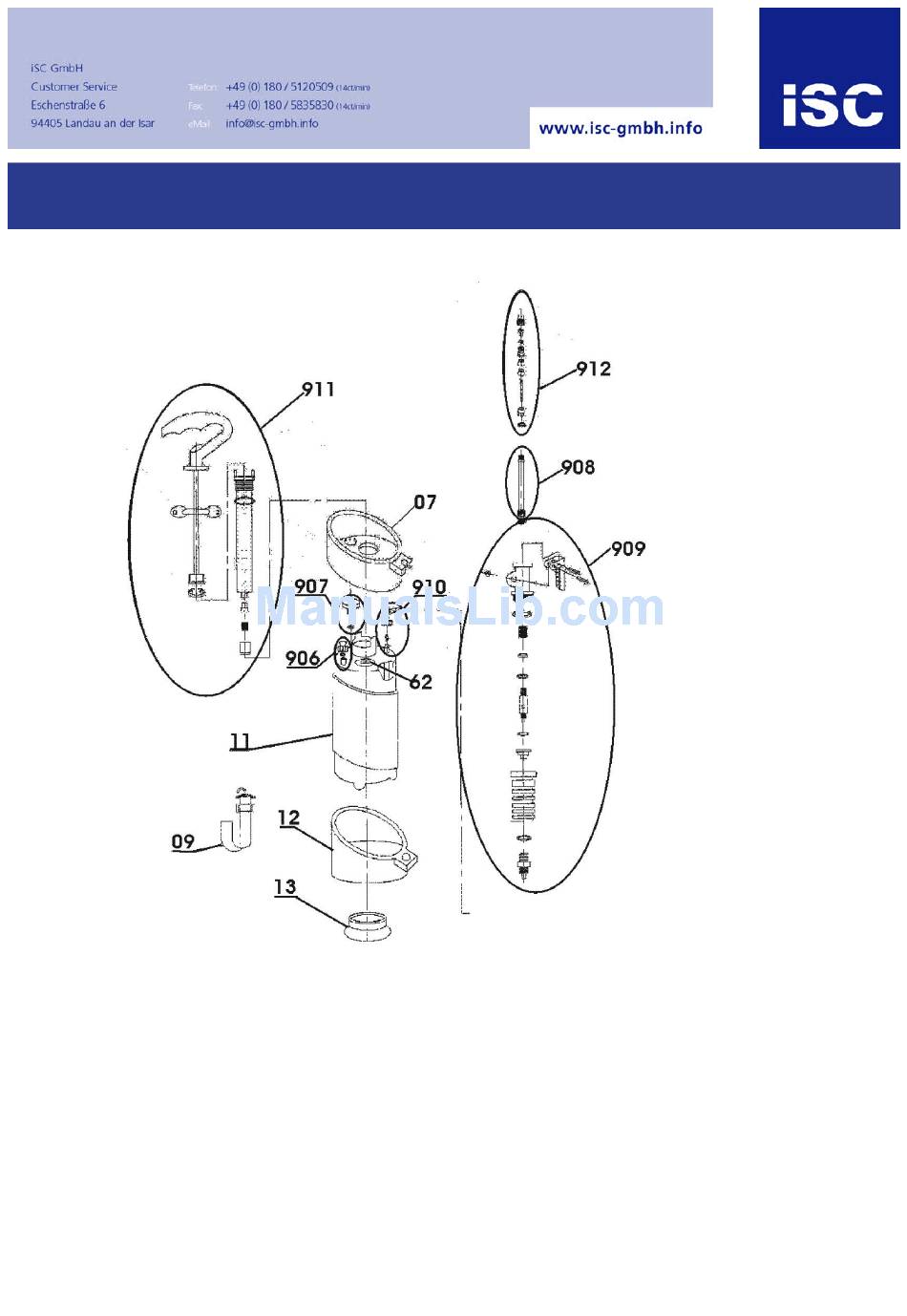

- Page 2 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung 342517201005 Filling Funnel 342517201063 tank 342517201011 pump membrane 342517201006 pressure relief valve 342517201007 manometer pos. 10a and 10b 342517201001 spray tube 342517201009 pump complete 342517201004 nozzle complete...
- Page 3 Anleitung GLDS 5 GB 16.12.2004 9:57 Uhr Seite 1 Operating Instructions Pressure Sprayer GLDS Art.-No.: 34.251.73 I.-No.: 01014...
- Page 4 Anleitung GLDS 5 GB 16.12.2004 9:57 Uhr Seite 2...
-
Page 5: Safety Regulations
Anleitung GLDS 5 GB 16.12.2004 9:57 Uhr Seite 3 Safety regulations: ming any maintenance work on the unit, always relieve the pressure via the overpressure valve by raising the overpressure valve. Please read these directions for use carefully and observe the information provided. It is impor- tant to consult these instructions in order to Technical data acquaint yourself with the unit, its proper use and... -
Page 6: Maintenance
Anleitung GLDS 5 GB 16.12.2004 9:57 Uhr Seite 4 Important: The bayonet lock must be properly To change the pump membrane, pull up the latched whenever you transport the pressure pump lever as far as it will go, turn it counter- sprayer. - Page 7 Anleitung GLDS 5 GB 16.12.2004 9:57 Uhr Seite 5 Pull the pump lever all the way Always use the feed funnel when up until it stops, then turn it filling the tank with a spray solu- counterclockwise to unscrew it tion! from the tank.
- Page 8 Anleitung GLDS 5 GB 16.12.2004 9:57 Uhr Seite 6 List of replacement parts for the GLDS 5 Art.-No.: 34.251.73 I-No.: 01014 (see Figure 1-7) Item Descritption Replacement-No. Spray tube 34.251.72.01.001 02+03 Spray gun handle complete with trigger lever 34.251.72.01.002 Swan-neck complete with nozzle 34.251.72.01.004 Funnel 34.251.72.01.005...
- Page 9 Anleitung GLDS 5 GB 16.12.2004 9:57 Uhr Seite 7...
- Page 10 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only Technical changes subject to change with the express consent of ISC GmbH. EH 12/2004...
