SCALE ACS-Z
USER MANUAL
VERSIÓN 12.11.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACS-Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bacsa ACS-Z

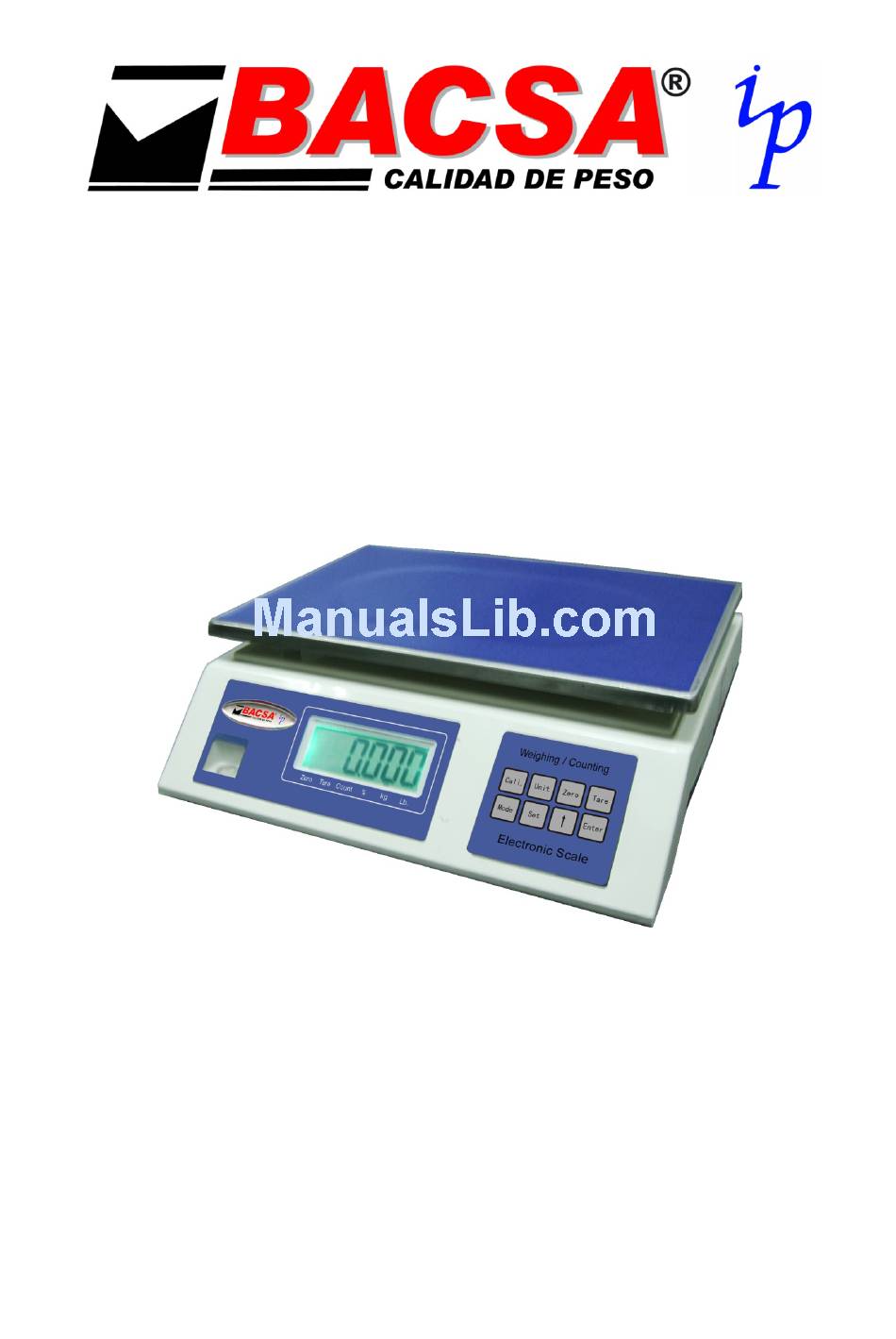

  • Page 1 SCALE ACS-Z USER MANUAL VERSIÓN 12.11.06...

  • Page 2: Table Of Contents

    VERSIÓN 12.11.06 INDEX SPECIFICATION..................Pag. 3 KEYBOARD INSTRUCTION............... Pag. 3 OPERATION..................Pag. 4 Weighing mode ..............Pag. 4 Choosing Unit Function..........Pag. 4 Tare Function..............Pag. 4 Zero Function.............. Pag. 4 Setting Alarm Function..........Pag. 4 Counting mode..............Pag. 5 Percentum mode..............

  • Page 3: Specification

    VERSIÓN 12.11.06 1. SPECIFICATION: 1.1. Rechargeable accumulator inside, you can use the scale during recharging. 1.2. Auto zero-setting when switch on the scale. 1.3. Auto zero-tracing. 1.4. Switch among weighing, counting, percentum. Function of choosing Weight range. 1.5. Power supply: AC 220V (±10%) / 50 Hz, 110V/60HZ, DC 6V / 4Ah (Rechargeable accumulator inside).

  • Page 4: Operation

    VERSIÓN 12.11.06 3. OPERATION: The scale must to be placed on the stable and flat surface, adjust its four screw carrier pole to horizontal, switch on the power. The scale cannot be used for a long time under tare state or the function of zero tracing will disappear and the zero will move. The scale will go into the weighing model after the beginning display.

  • Page 5: Counting Mode

    VERSIÓN 12.11.06 Press【Set】 to exit from the setting state when in the process of setting. The set value is invalid. 3.2. Counting mode Press【 Set】 to sample weight in the counting model. It displays “SAP X” (X is the sample number). 【...

  • Page 6: Calibration

    VERSIÓN 12.11.06 3.4. Calibration Keep pressing【 Cali.】 for about 4 seconds. Calibrate after the weight window displays “CAL.”. There are two ways to calibrate: 1. Full range load: Put enough weight on the platform according to the full scale. Press【E nter】 to make sure. Calibration finished. 2.

  • Page 7: Rs232 Transmission Method

    VERSIÓN 12.11.06 5. If it display “-SYS-” when you switch on the scale please re-calibrate or send it to repair. If it display –Set--”, it means the alarm setting is wrong, please reset the alarm value. 5. RS232 TRANSMISSION METHOD: 5.1.

  • Page 8: Interface Rs232

    VERSIÓN 12.11.06 5.2. Interface RS232 5.2.1. Frame format: The scale have a standard RS232 UART signal, Each data frames has 10bits.The detail information of frames is as follows： Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 Bit 7 Bit 8 Bit 9...
