14" COLOR TELEVISION WITH DVD PLAYER

Instruction Manual

Table of Contents

Need help?

Do you have a question about the CTV–3702 DVB-T and is the answer not in the manual?

Questions and answers

Summary of Contents for WOERLEIN CTV–3702 DVB-T

Page 1: Instruction Manual

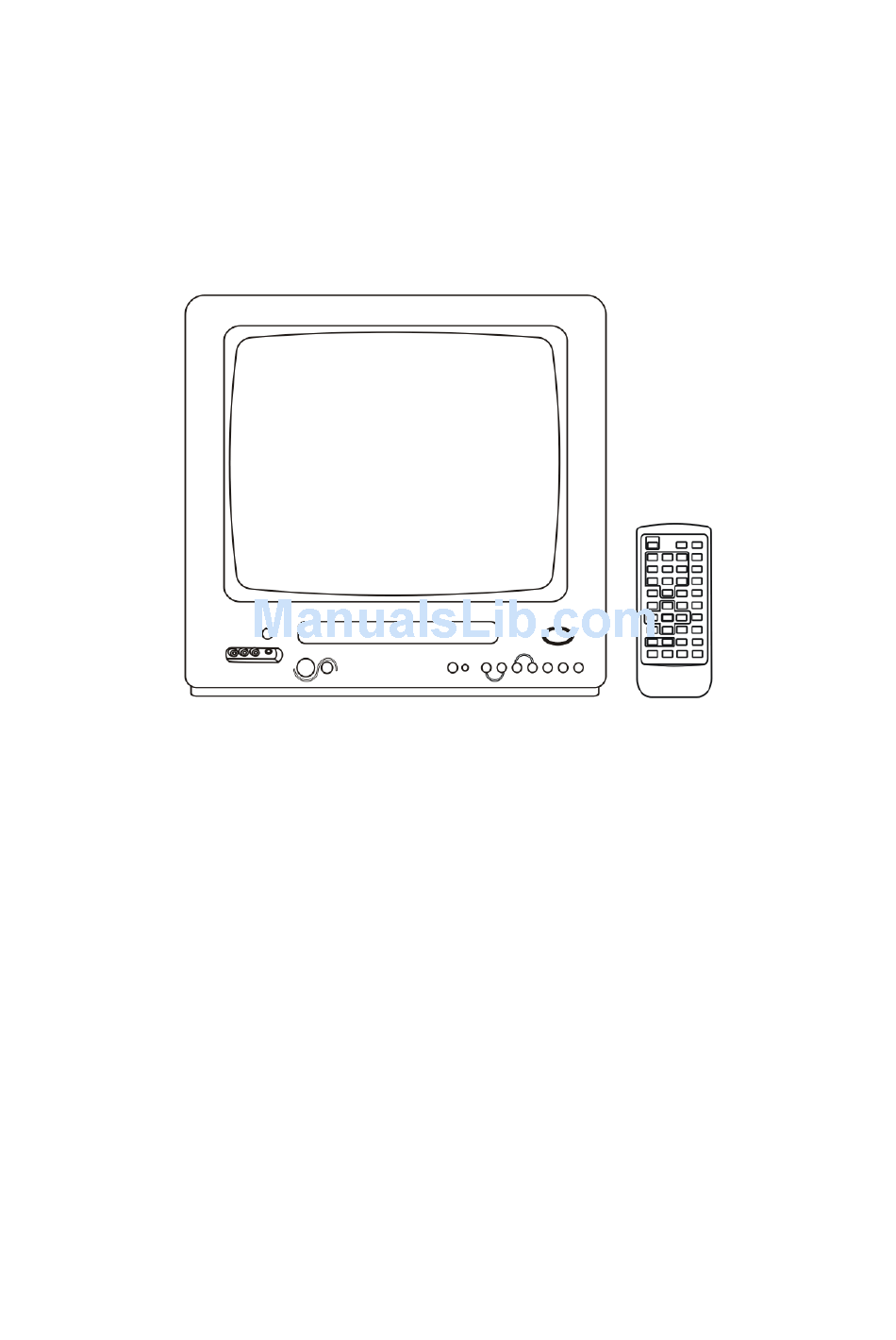

14” COLOR TELEVISION WITH DVD PLAYER Instruction Manual...
Page 3: Remote Control Panel
Remote Control Panel ATV/DTV/DVD/AV Open/Close Mute Display Picture DTV/RADIO Guide Stop Menu Right Angle Back/Forward Setup/View Repeat TEXT Pause POWER ON/OFF Number Area INFO/Back Forward UP/CH+ LEFT EXIT/ DOWN/CH- VOL- VOL+ ZOOM AUDIO...
Page 4: Main Menu
DIGITAL TV PART: Main Menu Once the installation is done, switch the receiver on and press the MENU button on the remote control unit, the following main menu options will be displayed. All the important setting and features of your receiver can be operated from the main menu. The main menu consists of several sub-menus such as “Installation”, “Channel Search”...
Page 5: Installation
1. Installation All setting that are related to TV, Dish is within this menu. The installation menu contains several sub menus such as “Antenna Active”, “Channel Search”, and “System Setup”. 1.1.1 Local Time You may press ---- to setup the time you want in the receiver. 1.1.2 User Interface OSD language: control the language as to your preference.
Page 6 Change Password: for your user’s desired privacy, you can change the current password (PIN) settings ‘0000’ to a new password for security purposes. The password is consisted of four numbers, and you must input new password twice to ensure it correctly. Note: Store the password in a safe place in case you forget.
Page 7 1.2 Antenna active If you select “Enable” in antenna setting submenu, the tuner can provide 5V power supply if you use the amplifier. And you may select frequency in the list. 1.2.1 Factory Reset After you input PIN code “0000”, you will be invited to continue the reset by pressing OK, Press EXIT to deselect if you are unsure.
Page 8: Channel Search
2. Channel Search 2.1.1 Channel Search In this menu, you can search the channels you want, and you may setup as follows. Move the cursor to channel scan and use the left or right key to select “Auto scan” or “Manual scan”, and then press OK to search auto scan or manual scan.
Page 9: Channel Edit
Please wait for a little while till the search is finished 3. Channel Edit This menu enables you to setup the channel of DVB-T, such as move channels, make your own favorite channels list, skip channel and delete channels from the list. 3.1 TV Channel...
Page 10 3.1.1 Skip Press 0 in this menu, you may select the program you want to skip by pressing OK, and then a logo will display beside the program. Press OK again to remove this logo. When you press in no-menu state, the program will skip. You can press exit key to exit and save. 3.1.2 Lock Press 1 in this menu and input the password, you can select the program you want to lock by...
Page 11 3.1.6 Sort Press 5 in this menu, all the modes of sort are listed as follow. Press numeric key to select a sort mode. You can press EXIT key to exit and save. 3.1.7 There are six favourite groups, press FAV button switch in these groups. You may select the program you like by pressing OK, and then a logo ---- will display beside the program.
Page 12: Basic Functions
4. BASIC FUNCTIONS While viewing TV or RADIO channels various functions can be applied using your remote control. 1. QUALITY To show the information of current channel be played. 2. OK To display the channels list of TV, Radio channel directly. It’s convenient for you selecting.
Page 13 3. AUDIO To show the list of available audio languages and soundtrack for the channel you are watching. You can change the audio language and soundtrack you want to hear by pressing the UP/DOWN/LEFT/RIGHT buttons, and pressing OK to confirm. 4.
Page 14: Technical Features
TECHNICAL FEATURES MEEG Transport Stream (Digital) I/O connection Transport Stream: ISO/IMC 13818 Video/Audio Output: 3 Phone (AUDIO System: ISO/IEC 13818-1 L/R, VIDEO) Video: ISO/IMC 13818-2 SCARTS output Audio: ISO/IMC 13818-3 Profile & Level: MP@ML Power Supply Video Input Rate: Max 15Mbit/s Input Voltage: AC 110~240V Type: SMPS Tuner Part...
Page 15: Switch On/Off
ANALOG TV PART: Switch On/Off AC Power Supply The unit is AC operated. Insert AC plug into the AC outlet. Then insert the other end into the AC in Jack. Switch on POWER ON/OFF. The power indicator will turn green. After several seconds, picture will be shown on screen.
Page 16: Menu Control
Menu Control Press the Menu key located on remote control and unit. Menu will be displayed on screen. PICTURE → SYSTEM → TIMER → PRESET → EXTRA ↑ ↓ If there is an arrow, it means there is a submenu. Press CH+ or CH- key located on remote control and unit to select menu.
Page 17: Extra Functions
ON TIMER → ON CH. → CLOCK ↑ ↓ Select submenu ON TIMER and press V+ to enter AM/PM setting. Press the number keys on remote control to input time. The turn of inputting is as follows: Hour 10-digit→Hour 1-digit→Min.10-digit→Min.1-digit→Set Completion ↑...
Page 18: On Screen Display
0MIN → 30MINS → 60MINS → 90MINS → 120MINS → 150MINS → 180MINS ↑ ↓ 3． When there is only 5 minutes left from now to sleep time, screen will display the remainder time every 1-minute and keep for 5 seconds. 4．...
Page 19: Tv Trouble Shooting
TV Trouble Shooting Check the following list if you find your ATV is not working properly. If you cannot fix the problem by adopting the listed methods, please unplug the unit and ask professional to check and fix the unit. Trouble Check following 1.
Page 20: Dvd Player
DVD player Press TV/ DVD/AV key located on unit or remote control to select DTV mode. DVD OPERATIONS: Press the Power button on the player or the remote control, then press the “TV/DVD/AV” key to enter DVD status until “DVD” is shown on screen. And “Read” will be appeared on the TV screen if a disc is already loaded.
Page 21 1.6. Zoom Press “Zoom” key to control the size of picture, and press the direction key to move the displayed location of picture. 1.7 Angle When the DVD disc can be played from different angles, user can choose a special angle to view the same action in the DVD when it is played in different angles.
