Summary of Contents for SVT 5100

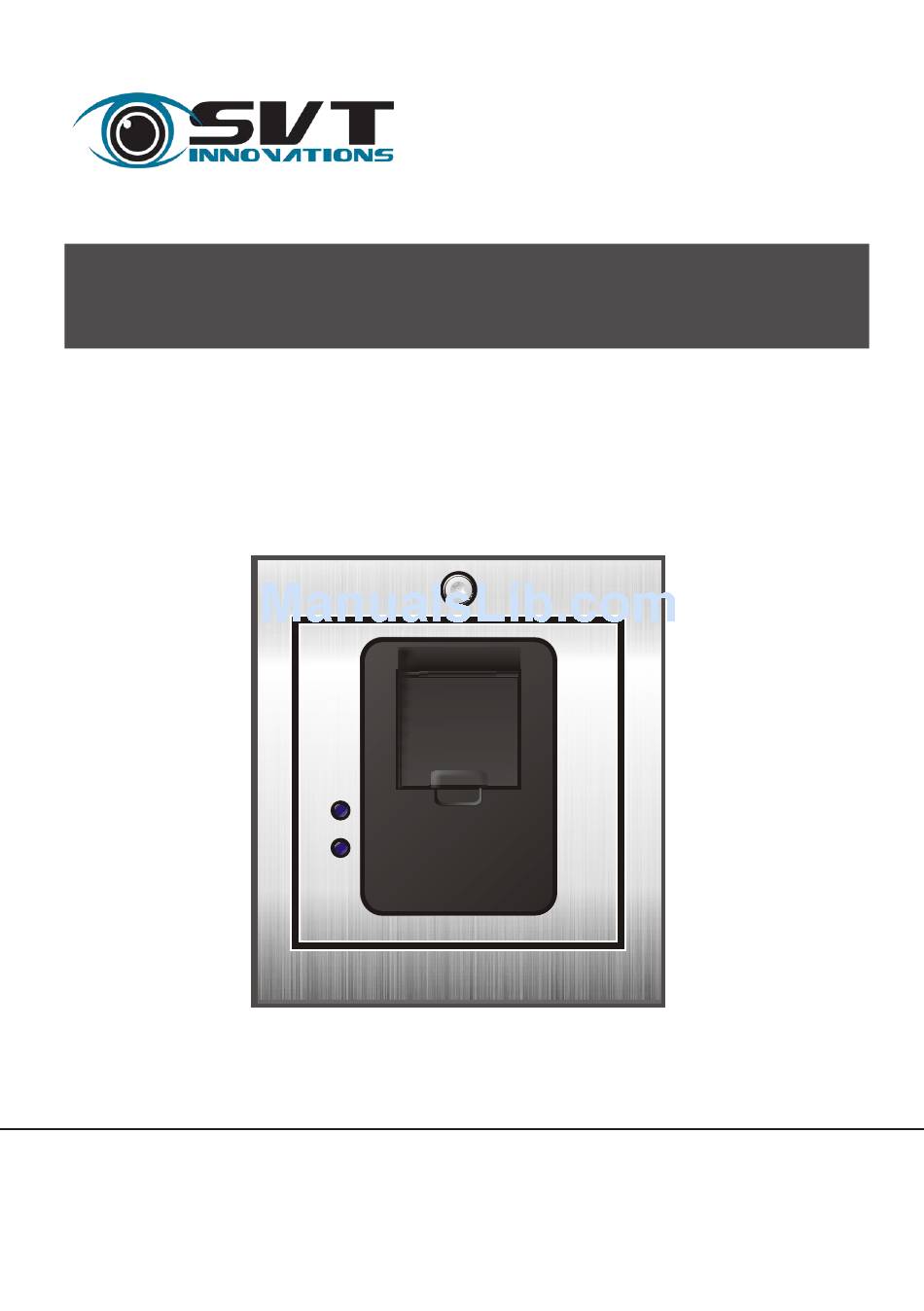

- Page 1 SVT-5100 ACCESS CONTROL FINGERPRINT (SVT19120) User Manual Please read this user manual prior to installing the system, and keep it well for future use.
- Page 2 SVT-5100 ACCESS CONTROL FINGERPRINT - SPECIFICATIONS 100 mm 110 mm Description Mode indicator Infrared receptor Screw Fingerprint sensor Technical Parameters Ambient temperature -20 Relative humidity Operating Voltage DC 14.5V Standby Current 90mA Operating Current 120mA Capacity: maximum 900 fingerprints...
- Page 3 INSTALLATION (without the rain guard) Install into the wall Screw hole 50mm Screws (fix with button case) INSTALLATION (with the rain guard) Screw anchors Wall hole Rain cover Screws Screws (fix with rain cover)
- Page 4 WIRING CONNECTION Black Power supply DC 14.5V White Unlock button Purple Lock Connect to main board module J1...
- Page 5 OPERATION SVT-5100 ACCESS CONTROL FINGERPRINT requires the SVT Remote Control for programming. Enter the setting mode Input the admin code twice (default code twice: 1234+1234), the yellow LED will be on. It is in the setting mode. The default code is: 1234...
- Page 6 Set the unlocking time In the setting mode: Press * 1 (Yellow light blinks), and then enter 2-digit number from 01 to 99 (Bi- is heard, and yellow light stops blinking). This 2-digit number is the unlocking time. For example, enter 05 means the unlocking time is 5 seconds.
- Page 8 The design and specifications of this user manual can be changed without any notification to the user. All copyright and interpretation rights are reserved to SVT Innovations Inc.
