RX-6010VBK/6018VBK
www.freeservicemanuals.info

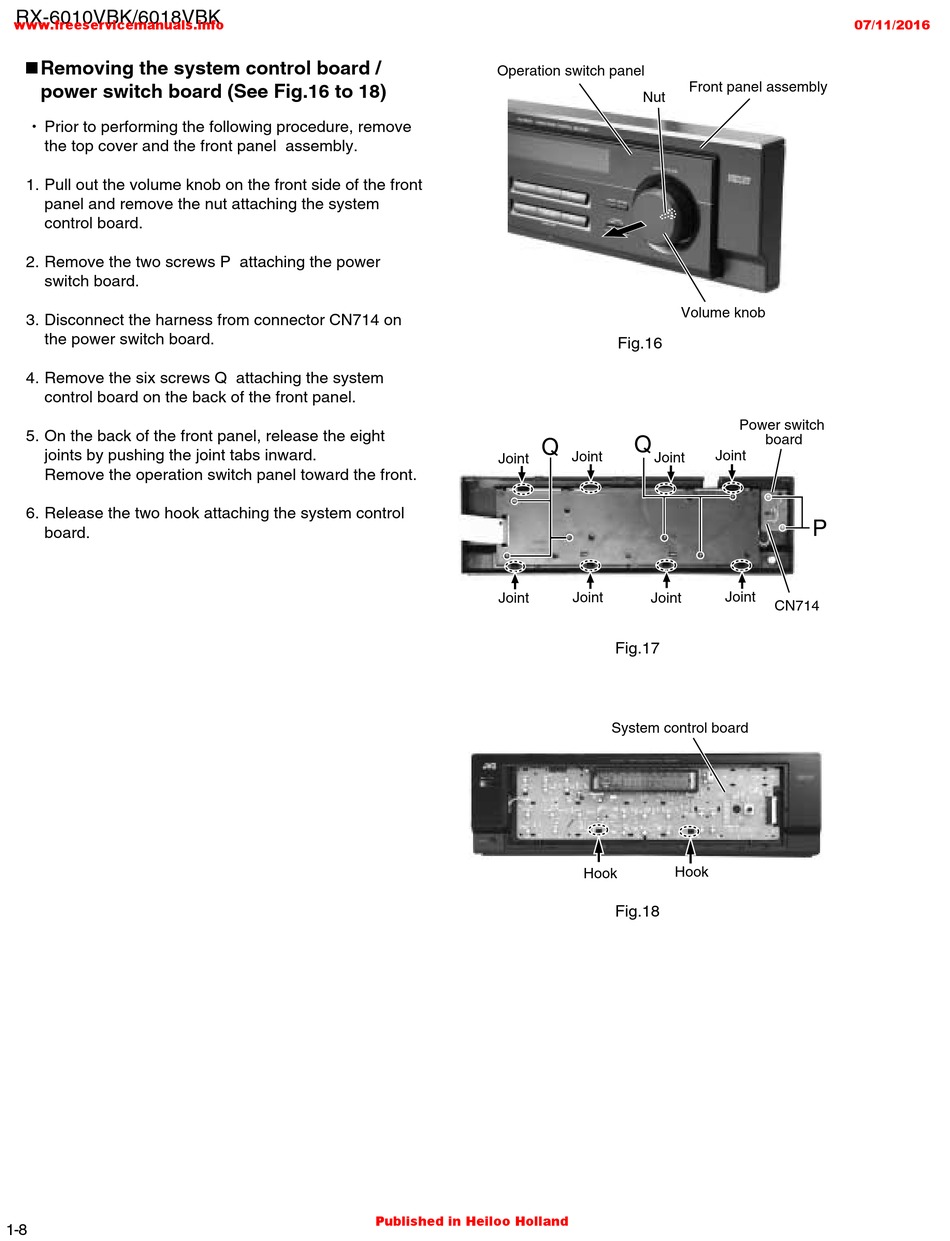

Removing the system control board /
power switch board (See Fig.16 to 18)
Prior to performing the following procedure, remove
the top cover and the front panel assembly.
1. Pull out the volume knob on the front side of the front
panel and remove the nut attaching the system
control board.
2. Remove the two screws P attaching the power
switch board.
3. Disconnect the harness from connector CN714 on
the power switch board.
4. Remove the six screws Q attaching the system
control board on the back of the front panel.
5. On the back of the front panel, release the eight
joints by pushing the joint tabs inward.
Remove the operation switch panel toward the front.
6. Release the two hook attaching the system control
board.
1-8
Operation switch panel
Q
Joint
Joint
Published in Heiloo Holland
Front panel assembly
Nut
Volume knob
Fig.16
Power switch
Q
Joint
Joint
Joint
Joint
Joint Joint
Fig.17
System control board
Hook
Hook
Fig.18
07/11/2016
board
P
CN714
