DIGITAL DECT PHONE
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT1190 and is the answer not in the manual?

Questions and answers

Summary of Contents for Campomatic CT1190

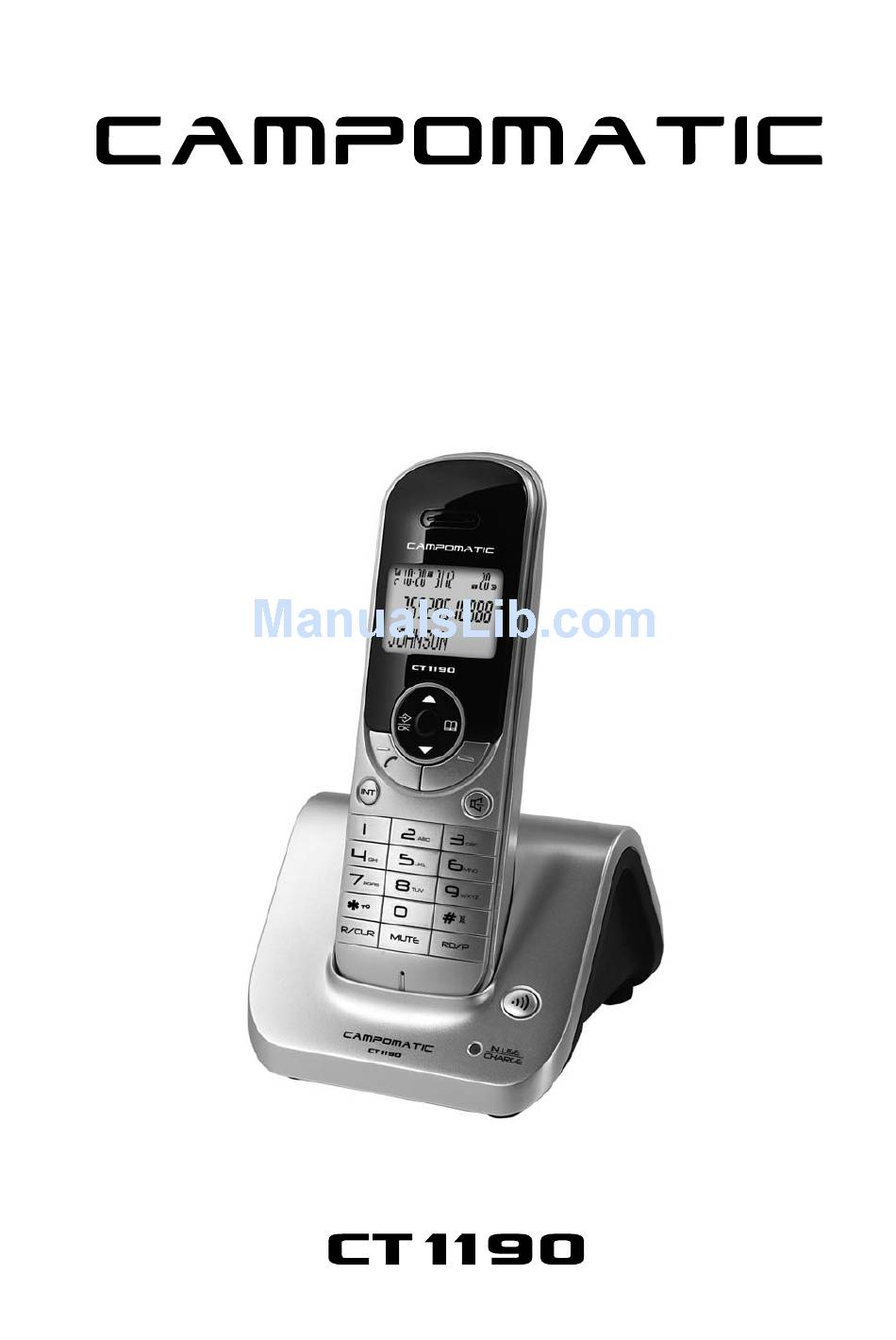

  • Page 1 DIGITAL DECT PHONE INSTRUCTION MANUAL...
  • Page 2 INTRODUCTION This is an our DECT basic model, the manual is designed to familiarize you with this phone. To get the maximum use from the phone, we suggest that you read this instruction manual carefully before using. Important Notice : Please charge the battery for at least 12 hours before using FEATURES ...
  • Page 3 LCD DISPLAY/LCD MAP/KEY PAD DESCRIPTION  LCD display The LCD displays in 3 lines, 1 line for ICON, 2 line 12 numbers with 7-segment , 3 line 5*7 dot matrix (12 characters), The LCD map is shown below :  LCD Map Icon Description...
  • Page 4 reviewed yet. When you press ▲ or ▼ key directly to scroll and review the Sequence numbers ,it appears along with the digit to indicate the sequence of the call HANDSFREE The icon will be displayed when press BATTERY_IND The battery icon will provide both a charging indication and an indication of the current battery status to the user.
  • Page 5 Icon Description Function Definition Talk In standby mode press once to take the handset into off hook mode; In standby mode press once to take the handset to hand free mode. SET/OK Entry to the menu functions from idle mode; Confirming selections &...

  • Page 6: Input Method

    INPUT METHOD press three four five six seven eight nine ten eleven tweleve thirteen times İ ¿ & – ′ space 0 INSTALLATION 1) Plug the main power lead into the bottom of the base unit. 2) Plug the main adapter into mains socket with the switch on the socket set to off. 3) Switch on main power at the socket.
  • Page 7 Handset Menu function1: PHONE BOOK Each individual Handset has its own phonebook, independent of each other handset, with a maximum of 50 entries, each name a maximum of 12 characters, each number a maximum of 20 digits and a melody selected between 1 and 10.

  • Page 8: Delete Handset

    DELETE ALL : this function allows the user to delete all numbers Handset Menu function 3: BS SETTINGS key and use ▲ or ▼ key to The user is able to change the base setting in base settings item, press select this item.

  • Page 9: Base Default

    7) Press to confirm, the code will be stored to the base and a tone sounded.  BASE DEFAULT This function allows the user to restore the base setting to the factory default. key, then using ▲ or ▼ key to select BS DEFAULT item. Press Press key to confirm.

  • Page 10: Tone Setup

     If select MELODY, Press key to confirm. Press ▲ or ▼ key to select desired melody, the corresponding melody sound can be heard with the selection. Press key to confirm your selection.  If select VOLUME, Press key to confirm. Press ▲...

  • Page 11: Auto Answer

    Press key to confirm.  AUTO ANSWER The Handset can be set to answer an incoming call automatically when it is on the cradle. The user is able to select to enable/disable this auto answer feature. key. Using ▲ or ▼ key to select AUTO ANSWER, Press Press key to enter.

  • Page 12: Operation

    key, then using ▲ or ▼ key to select HS DEFAULT item. Press Press key to confirm. The user will be prompted to enter the PIN CODE, the display shows PIN?, then press numerical keys to input code. If the PIN code is validated all base settings will be returned to the factory default. Handset Menu function 5: REGISTRATION This function allows the user to register the handset to a specified base.
  • Page 13 During the conversation, the phone number of the incoming call of the third party can be seen in the unit. This function can be worked when the user applied the Telecom service. Auto timer The timer will start automatically after 6s of the telephone line is engaged. Flash (R) Press R/CLR key to reset the line with our leaving the handset.
  • Page 14 2) Press ▲ or ▼ key to select the designated message. key to select “ADD TO PB”. 3) Press 4) Press key to confirm to edit the incoming message. 5) The user can delete the character by pressing R/CLR key. 6) If there is no change, press key to confirm and the record will be copied from caller list to phone book.

  • Page 15: Handset Menu Tree

    6. Press (HANG UP/POWER OFF) to quit the party conference, and other parties can also continue to communication. To Lock/Unlock the keypad To lock the keypad Press and hold the key for about 2 seconds. will appear on the top of display, “HS LOCKED” will appear on LCD. You will hear a beep tone, the icon While the keypad is locked, any key you press is invalid.
