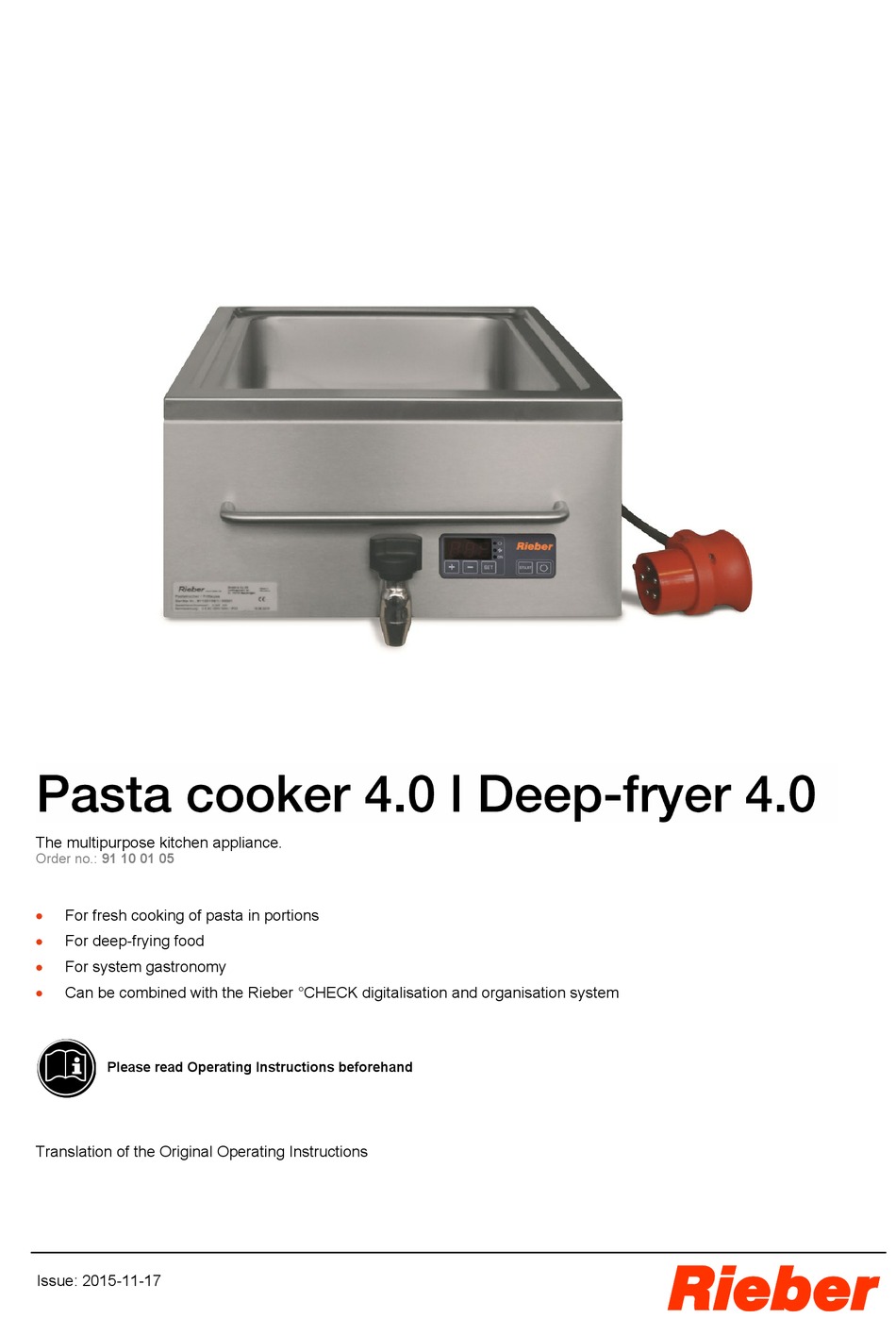

The multipurpose kitchen appliance.
Order no.: 91 10 01 05
For fresh cooking of pasta in portions
For deep-frying food
For system gastronomy
Can be combined with the Rieber °CHECK digitalisation and organisation system
Please read Operating Instructions beforehand
Translation of the Original Operating Instructions
Issue: 2015-11-17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Rieber PASTA COOKER 4.0
- Page 1 For fresh cooking of pasta in portions For deep-frying food For system gastronomy Can be combined with the Rieber °CHECK digitalisation and organisation system Please read Operating Instructions beforehand Translation of the Original Operating Instructions Issue: 2015-11-17...
-
Page 2: Table Of Contents
Information about regulations to be followed ....................16 Instructions on behaviour in an emergency ...................... 17 Purpose ................................18 Device Description ............................19 Designation ..............................19 Technical data..............................21 Accessories ..............................21 Checking the Delivery Condition ......................... 24 Rieber GmbH & Co. KG... - Page 3 Notes on troubleshooting ..........................41 Disposing of your product ..........................41 10 Warranty and Liability ........................... 42 11 Excerpt from the EC Declaration of Conformity ..................42 12 Index ................................43 13 Contact Address ............................44 Rieber GmbH & Co. KG...
-
Page 4: Revision Index
If there are any shortcomings in your opinion, please do not hesitate to let us know. With your help, we will try to become even better. Please add your notes here Rieber GmbH & Co. KG... -
Page 5: Representation Conventions In The Text
Failure to follow these warning instructions may cause serious bodily injury or even death. CAUTION indicates a potentially harmful situation. Failure to follow these warnings may cause minor bodily injury. Rieber GmbH & Co. KG... -
Page 6: General Safety Instructions
Be alert. Pay attention to what you are doing. Take the utmost care when working with electrical appliances. Do not use the appliance when tired or under the influence of drugs, alcohol or medication. Just one moment of inattention whilst using the appliance can result in serious injury. Rieber GmbH & Co. KG... -
Page 7: Operator's Duties
In addition, the operator must train the personnel and inform them of the hazards involved at regular intervals. The operator must provide the personnel with the necessary protective equipment and make sure that they wear it. Rieber GmbH & Co. KG... -
Page 8: Personnel Qualification
Ensure that the personnel wear the personal protective equipment appropriate to the relevant situation. Wear safety gloves to avoid burns and scalds to hands and arms. Wear sturdy shoes to prevent injuries during transport. Rieber GmbH & Co. KG... -
Page 9: Appliance-Specific Safety Instructions
When the set is not in use cover with a lid, for example GN 1/1, to save energy costs and reduce the risk of burns from hot liquid. Use the pasta set provided for pasta cooking. When the basket is inserted, the risks from splashing hot liquid are reduced. Pasta set Rieber GmbH & Co. KG... - Page 10 ‘Display setpoint temperature’, page 34 Risks due to oil bubbling over or splashing: Only use one type of oil, otherwise the oil in the deep fryer could bubble over or splash. Do not mix oils. Rieber GmbH & Co. KG...
- Page 11 If the hot oil catches fire: If present: Switch off the extraction fan. Extinguish the flames with a large cover. Keep a suitable fire extinguisher ready to hand for extinguishing cooking oil and cooking fat fires. Rieber GmbH & Co. KG...
- Page 12 Wear personal protective equipment (PPE) such as protective gloves to prevent injuries to hands and arms. To prevent injuries, any use in public is only admissible under constant supervision. Keep flammable materials away from the product. Rieber GmbH & Co. KG...
-
Page 13: Risks Due To Electricity
Risks due to inadequate ventilation of the appliance at the back panel. Maintain at least 10 cm distance at the back panel or ventilation slots, to allow the air to circulate unimpeded. Keep fluff away, as it may result in fire. Rieber GmbH & Co. KG... -
Page 14: Risks During Transport Of The Appliance
3.6.6 Risks associated with use as a mobile appliance in marquee hospitality Do not use the appliance outdoors in adverse and potentially hazardous weather conditions. Stability and protection from wetness and moisture are required. Rieber GmbH & Co. KG... -
Page 15: Risks Concerning The Use Of The Appliance By Children
The guard rail reduces the risk of unintentional activation of the safety drain valve. It is also used for transport. The appliance does not restart automatically after a power interruption. It is in Standby mode. # The safety drain valve The safety drain valve is intentionally difficult to operate. Rieber GmbH & Co. KG... -
Page 16: Note The Product Identification And Ensure Its Preservation
Information about regulations to be followed In addition to this user guide there are a range of health and safety and other regulationsthat are relevant for the operation of this cooking station; these include HACCP food hygiene regulations for example. Rieber GmbH & Co. KG... -
Page 17: Instructions On Behaviour In An Emergency
Keep a suitable fire extinguisher ready to hand for extinguishing cooking oil and cooking fat fires. User tip ► Inform yourself in detail by reading the in-house operating instructions. ► We recommend half-yearly emergency practices. "Grease fire" excerpt from wikipedia.org /2015-08-27 Rieber GmbH & Co. KG... -
Page 18: Purpose
Incorrect cleaning can substantially and irreparably damage the stainless steel surfaces. ‘Choose the correct cleaning method’, page 37 Rieber GmbH & Co. KG... -
Page 19: Device Description
1 Mains plug 5 Safety drain valve 2 Mounting foot, 4x 6 Guard rail 3 Fan air outlet 6 Heating element in base of well 4 Controller operating panel 8 Air intake area, ventilation slots Rieber GmbH & Co. KG... - Page 20 Meaning displays Appliance is in Standby mode. The POWER LED is flashing. Display is black Actual temperature is displayed. There is a fault. ‘What to Do If’ chapter, page 41 Rieber GmbH & Co. KG...
-
Page 21: Technical Data
Do not place heavy objects on the appliance. Do not stack appliances. Accessories » Complemented by the Rieber °CHECK digitalisation and organisation system, a safe, transparent and traceable process is enabled. Standard provision of a QR code and a serial number enables unique assignment and identification of the appliance as well as process organisation. - Page 22 Device Description User tip With the optimal accessories, you can achieve a high level of energy efficiency and extend the possible applications. ► Use accessories from Rieber GmbH & Co. KG. http://www.rieber.de Pasta set 1x suspension frame 91 10 01 06...
- Page 23 Device Description Deep-frying 1x suspension frame 91 10 01 07 2x deep-frying basket GN 1/3 Rieber GmbH & Co. KG...
-
Page 24: Checking The Delivery Condition
► Ensure that there are no protective foils on the inside or outside of the appliance. # Information about packaging material Dispose of the disposable packaging /cardboard with respect for the environment. Rieber GmbH & Co. KG... -
Page 25: Use
Heat the oil to maximum 10 °C below the flash point. ► Do not mix oils. The oil in the deep-fryer could bubble over or splash. Press the set button briefly to ‘Display setpoint temperature’. Page 34 Rieber GmbH & Co. KG... -
Page 26: Instructions For Use
Covering the heating area reduces the heating-up time and saves energy costs. ► Use a lid, for example GN 1/1, to heat the appliance up or keep it warm. ► Use the appliance with the respective set. Rieber GmbH & Co. KG... -
Page 27: Instructions For Cooking Pasta
The Power LED lights up. ▌ The actual temperature appears in the display. Press the Set button. ▌ The setpoint temperature appears in the display. Heat the water to around 100° C. Set setpoint temperature: Rieber GmbH & Co. KG... - Page 28 As soon as the pasta is sufficiently cooked, lift the baskets and hang to drip on the basket holder on the suspension frame. # Note: alternative set Alternatively you can prepare larger portions of pasta with the deep-frying set. Rieber GmbH & Co. KG...
- Page 29 Remove the residues from the well. Clean the pasta baskets and the well. Close the safety drain valve. To do this, press the safety drain valve down and turn to the right at the same time. Rieber GmbH & Co. KG...
-
Page 30: Deep-Frying Instructions
Heat the oil to maximum 10 °C below the flash point. Change the oil if it turns brown, smells unpleasant or smokes prematurely. „Change used oil“, Page 30 # Deep-frying Press the Power button. ▌ The Power LED lights up. Rieber GmbH & Co. KG... - Page 31 The appliance heats up. ▌ The actual temperature appears in the display. When the oil has reached the setpoint temperature, place the food items in the baskets. Insert the baskets into the suspension frame. Rieber GmbH & Co. KG...
-
Page 32: Remove Residues From The Oil
Close the safety drain valve. Do this by pressing it down and turning it anticlockwise. Put the suspension frame of the deep-frying set on the well. Insert a deep-frying basket into the suspension frame. Rieber GmbH & Co. KG... -
Page 33: Change Used Oil
Hard fat, cold-pressed and unhardened oil and fat such as olive oil, wheat germ oil, linseed oil, lard and butter are unsuitable. ► Use only hardened vegetable oil. Change the oil if it turns brown smells unpleasant or smokes prematurely. Allow the oil to cool down. Rieber GmbH & Co. KG... -
Page 34: Store Oil
If you deep-fry frequently, you can store the oil in the deep-fryer. If you do not deep-fry frequently, store the oil in a firmly closed, light-proof container. Display setpoint temperature Press the Set button briefly. ▌ The set setpoint temperature is displayed. Rieber GmbH & Co. KG... -
Page 35: Change Setting During Operation
Hold the Set button pressed with your right hand. Using the + and – buttons, set the setpoint temperature. Switch appliance off Press the Power button. ▌ The display goes out. ▌ The appliance is switched off. Unplug the mains plug. Rieber GmbH & Co. KG... -
Page 36: Cleaning, Maintenance And Care
Possible risk of burns on hot surfaces in the heating zone. Possible risk of scalds due to hot liquid. ► Wear personal protective equipment such as protective gloves. Source: DGUV Regulation 3. Electrical Systems and Equipment Rieber GmbH & Co. KG... -
Page 37: Choose The Correct Cleaning Method
► Comply with instructions according to product identification. User tip ► We recommend Rieber cleaning agent for stainless steel for cleaning stainless steel. ▌ It is an especially tough yet gentle cleaner, produces a dazzling shine, cleans and protects in one. -
Page 38: Clean Appliance In Heating Zone
Clean the operating panel with a damp (not wet) cloth. Then rub dry with a soft cloth. 8.3.3 Clean accessories Clean baskets: Clean baskets in the dishwasher. Clean baskets with hot soapy water. Soak burnt-on residues and clean with a brush. Rieber GmbH & Co. KG... -
Page 39: Clean Ventilation Slots At Least Every 4 Weeks
Risk of fire. Fluff in the ventilation area can cause a build-up of heat which could result in a fire. ► Clean the ventilation slots at least 1x a month with a cloth or brush. Rieber GmbH & Co. KG... -
Page 40: Descale Appliance If Necessary
Disinfect the appliance as required Please clarify this with your hygiene officer. Keep ready for next use in dry condition Dry the well and allow the residual moisture to dry off. Store appliance at room temperature. Rieber GmbH & Co. KG... -
Page 41: What To Do If
Customer service needs information about the type and number of the appliance. If you have a fault which you cannot remedy yourself, please get in touch with your Rieber specialist dealer or the Rieber service department. Disposing of your product Your device is made of high-quality materials that can be re-used or recycled. -
Page 42: Warranty And Liability
use non-original spare parts. The "Sales and delivery terms and conditions" of Rieber GmbH & Co. KG shall apply for all warranty claims made against the manufacturer. For instance, any repairs and/or overhaul during the warranty period may only be performed by the manufacturer´s service department of Rieber, failing which any claims hereof may be voided. -
Page 43: Index
Start ..............20 Emergency ............17 switch off ............25, 35 Fault ..............20, 41 Technical data ............21 Guard rail .............. 19 Use ............... 25 Maintenance ............36 Ventilation slots ............. 39 Minimum distance ..........25 Rieber GmbH & Co. KG... -
Page 44: Contact Address
Contact Address Contact Address Manufacturer: Responsible for Sales and Service: Rieber GmbH & Co. KG Rieber GmbH & Co. KG Hoffmannstraße 44 Hoffmannstraße 44 D72770 Reutlingen, Germany D72770 Reutlingen, Germany Phone +49 (0) 7121 518-0 +49 (0) 7121 518-170 +49 (0) 7121 518-302...
