T802 User Manual

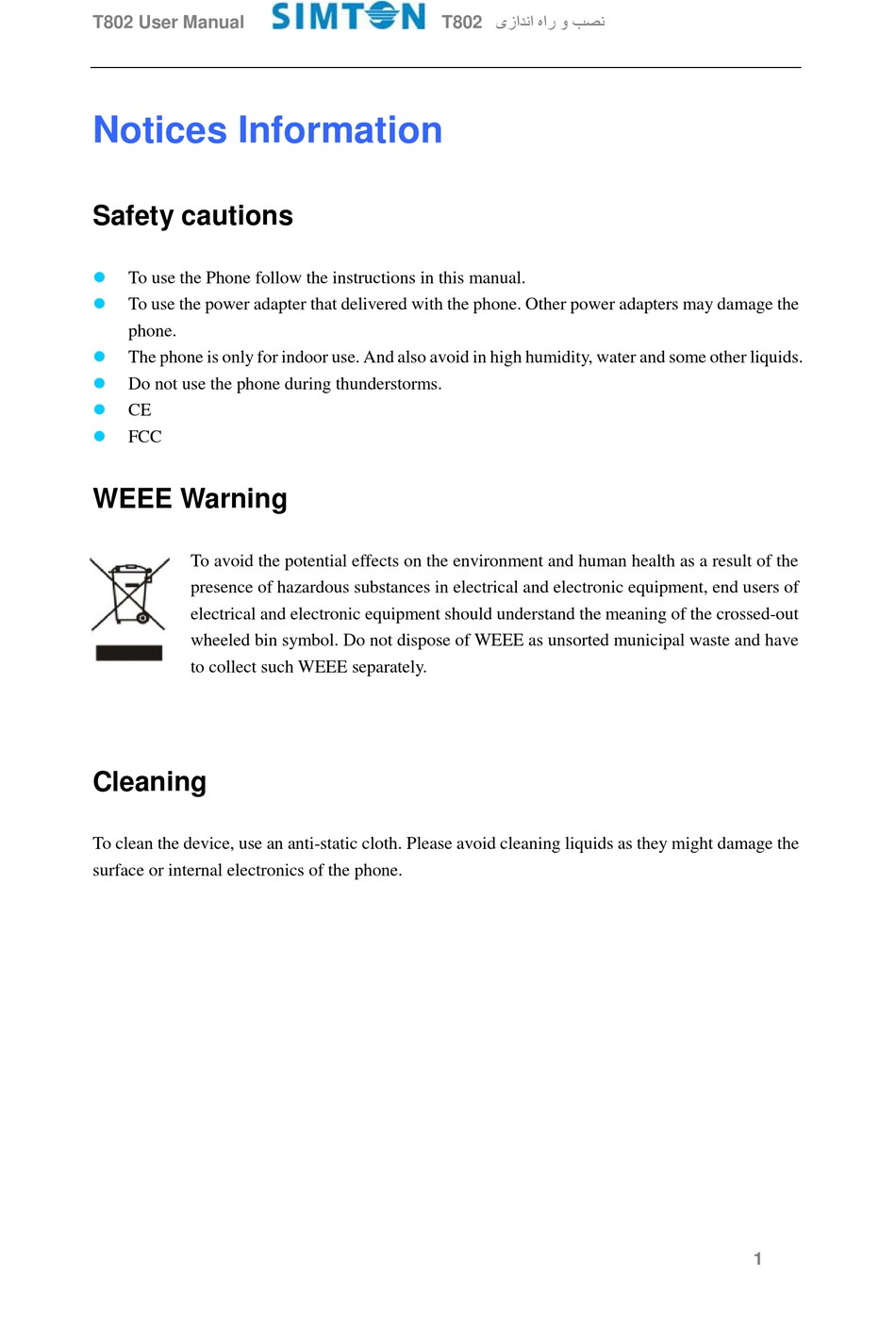

Notices Information

Safety cautions

To use the Phone follow the instructions in this manual.
To use the power adapter that delivered with the phone. Other power adapters may damage the
phone.
The phone is only for indoor use. And also avoid in high humidity, water and some other liquids.
Do not use the phone during thunderstorms.
CE
FCC

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users of
electrical and electronic equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have
to collect such WEEE separately.

Cleaning

To clean the device, use an anti-static cloth. Please avoid cleaning liquids as they might damage the
surface or internal electronics of the phone.
