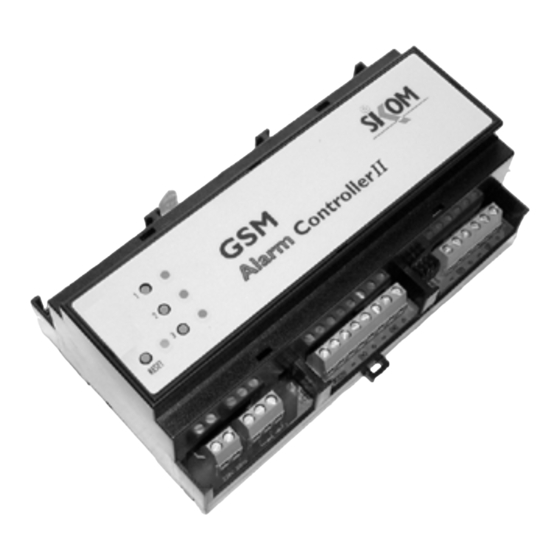

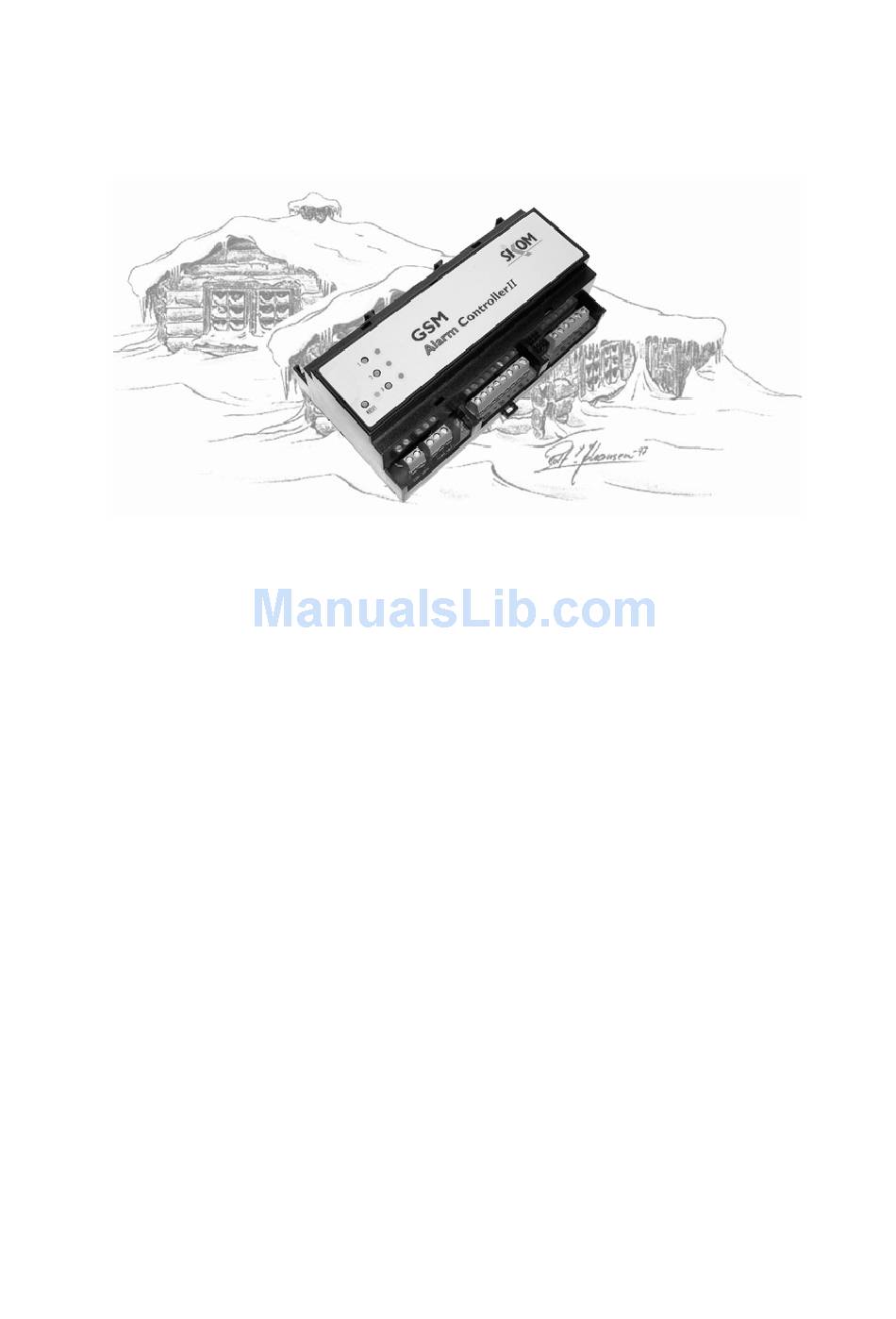

Sikom GACII v1.1
GSM Alarm Controller II
- Remote control of heat
Possible to control up to 3 different outputs
- Alarm
GSM Alarm Controller II contains 4 inputs, and can send SMS
messages to 4 different numbers when an alarm situation
occurs
- Temperature
Temperature measurements between -29ºC and +49ºC.
Sends a SMS message when limits are reached.
Can control 1 output based on temperature
- Based on control by the GSM network
Any SIM card can be used
- Can be controlled by any phone with # and * keys.
- Choose your own personal code
- Status messages
SMS messages with complete status of the inputs, outputs,
power and temperature.
www.sikom.no
Instructions
- 1 -
El-nummer: 64 309 33
Advertisement
Table of Contents
Related Manuals for SiKom GSM Alarm Controller II
Summary of Contents for SiKom GSM Alarm Controller II
- Page 1 Instructions - Remote control of heat Possible to control up to 3 different outputs - Alarm GSM Alarm Controller II contains 4 inputs, and can send SMS messages to 4 different numbers when an alarm situation occurs - Temperature Temperature measurements between -29ºC and +49ºC.
-
Page 2: Table Of Contents
Sikom GACII v1.1 El-nummer: 64 309 33 Table of contents Page Installation Preparation of SIM card Mounting SIM card Power up Signal strength Local control Remote control and user functions Information about GSM remote control How to remote control by phone... -
Page 3: Installation
Be sure the GSM Alarm Controller II is turned off. (Should always be turned off when something is done with the SIM- card). Remove the front cover on GSM Alarm Controller II as shown on figure 1. Install the SIM-card as shown. The golden contact points faced down. -
Page 4: Power Up
Local control/front panel All the outputs can be locally controlled by the switches on top of the GSM Alarm Controller II. Push and keep the button depressed for some seconds until the light changes. The output is turned on when the light is green. -
Page 5: How To Remote Control By Phone
Sikom GACII v1.1 El-nummer: 64 309 33 When you call the GSM Alarm Controller II, you will get 4 tones: Answer tone - Contains two Ok-tones Approved - Contains 1 single tone OK tone - Contains a low high double tone... -
Page 6: User Menu
Sikom GACII v1.1 El-nummer: 64 309 33 User menu When the number to the GSM Alarm Controller II is dialed and the personal code entered, the unit can be controlled by the main menu and the sub menus as explained. -
Page 7: Graphical Overview
Sikom GACII v1.1 El-nummer: 64 309 33 3.2 Graphical overview This figure shows the menu structure of the GSM Alarm Controller II. The boxes to the right shows the menus in the main menu. The center contains the sub menu, and... -
Page 8: Activate Multi Sms Transmission
Sikom GACII v1.1 El-nummer: 64 309 33 3.3 Menu 1 Activate multi SMS transmission GSM Alarm Controller II can send alarm messages to 4 different numbers/receivers. Also called multi sending. These 4 numbers are stored in different positions by menu 4. To activate the different numbers, menu 1 must be used. -
Page 9: Programming Sms Numbers
3. (”7 - 3”). The numbers entered will be listed here. If the GSM Alarm Controller II should send messages to a phone/fax abroad, you need to press star “*” followed by country code and phone number. The star will represent the + sign. -
Page 10: Temperature Control
Sikom GACII v1.1 El-nummer: 64 309 33 3.7 Menu 5 Temperature control When temperature control is activated, relay/output 3 will turn itself on when the temperature reaches 4 degrees and below. It will turn itself of when the temperature reaches 6 and above. -
Page 11: Alarm Functions
Sikom GACII v1.1 El-nummer: 64 309 33 3.8 Menu 6 Alarm Activation and deactivation of the alarm. If the unit is to send SMS messages the alarm sensing must be turned on. The zones can be turned individually on and off, but the master must be turned on to get messages. -
Page 12: Status Messages
El-nummer: 64 309 33 3.9 Menu 7 Status message Sends a status message to the number stored in position 1 GSM Alarm Controller II can send 3 different status messages: Message 1 shows temperature, status of temperature surveillance, relays/outputs, limits and temperature control. -
Page 13: Temperature Surveillance
Sikom GACII v1.1 El-nummer: 64 309 33 Power lost! o Power to the unit is not ok. Num1:95012582 Num2:95458721 Num3:41854762 Num4:22846852 Shows the 4 different numbers stored in position 1 to 3.10 Menu 8 Temperature surveillance Turns temperature surveillance on or off. -
Page 14: Other Messages
Sikom GACII v1.1 El-nummer: 64 309 33 If a limit between -29ºC and +49ºC is entered for both high and low, the first limit broken will be reported. How to program the limits: Press ”9”. Press the lower limit 3 digits and wait for approved tone. -
Page 15: Needs And Useful Information
Older devices will work as long as they have * and # . 4.2 Control of heat If the GSM Alarm Controller II is used to control heaters, make sure the heater has enough capacity to warm the actual room. -
Page 16: Smoke Detectors
4.5 Smoke detectors The smoke detectors have internal sirens which will work independently of the GSM Alarm Controller II. 5 Technical specifications Model: GSM Alarm Controller...
