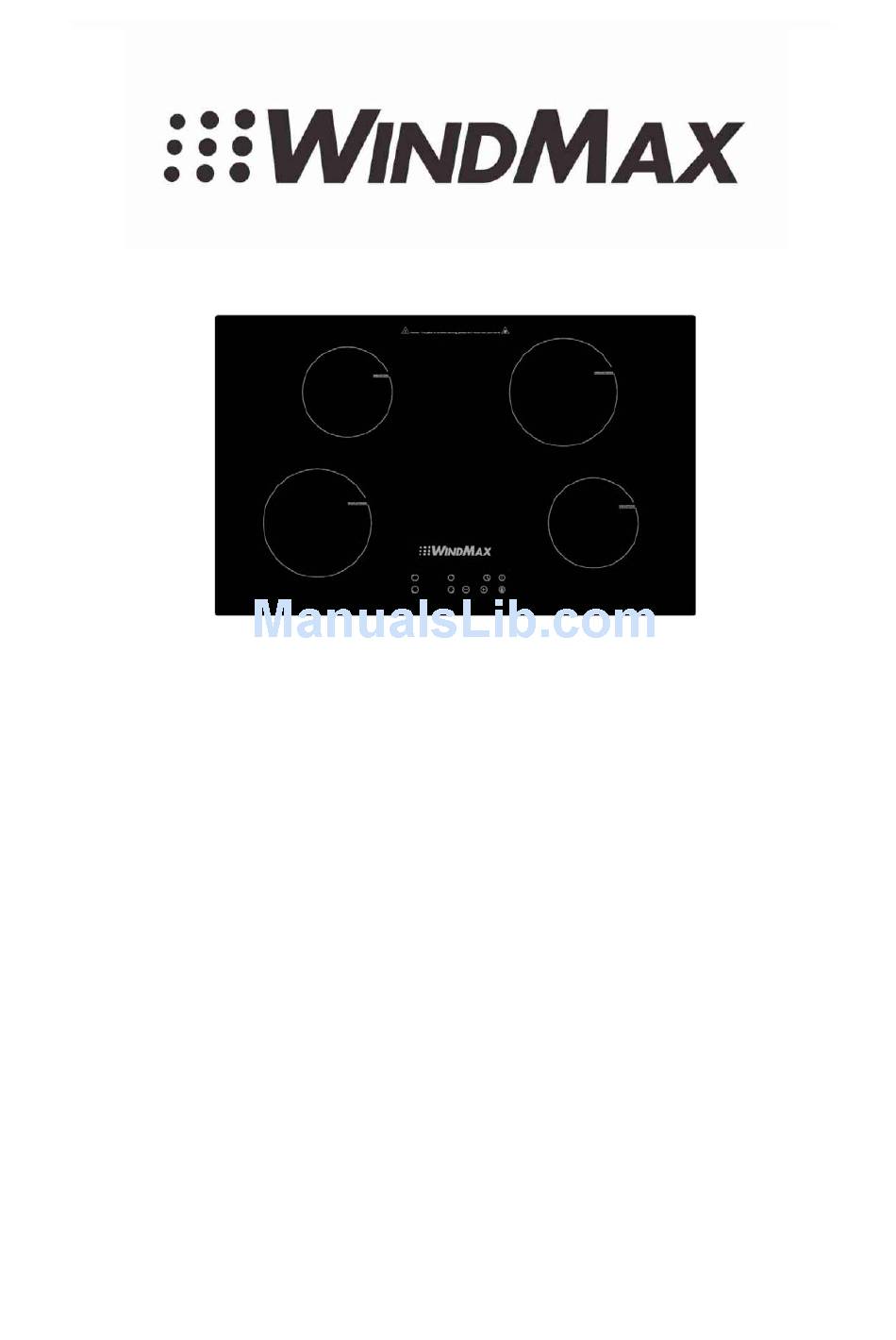

- Page 1 Installation and Operating Instructions Induction Hob IF6601 Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
- Page 2 Introduction Thank you for choosing this appliance . It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
- Page 3 Description Of The Appliance 1. 2000W Cook Zone 2. 1300W Cook Zone 3. 2000W Cook Zone 4. 1300W Cook Zone 5. Glass plate 6. Control panel CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 4 Section 1. Installation Remove all packaging, protective film and securing tape from the appliance. Position the appliance in a dry atmosphere. The following dimensions are provided as a guide for installation – your installer will carry out the installation in accordance with the current regulations.
- Page 5 Model L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) IF6601 50mini 1.2. Space to Rear or Side Wall A = 760mm B = 50mm (min) C = 20mm (min) D = Air Gap/Intake E = Air Exit (5mm) 1.3. Fixing Brackets...
- Page 6 1.4. Electrical Connection These appliances have a total Power Rating of 7000W and must be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing. The product must be installed by a Qualified Electrician. Please note that a switchable spur should be accessible above the work surface in order that the power can be turned off.
- Page 7 hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. This appliance must only be used for cooking/heating foods and liquids. Do not use it for any other purpose. It is important that you use only metal pans specifically designed and/or approved for use on Induction or Ceramic Hobs.
- Page 8 Induction hobs are made from smooth, ceramic glass, the heat comes from a magnetic induction coil which heats the cookware but not the cooking surface. The heat from the cookware is transferred to the food. Pans suitable for induction hob use must be made from magnetisable metal such as cast iron or steel.
- Page 9 3. Power / Timer regulating key 4. Key/Lock control 5. ON/OFF control 3.4. Power, Cooking & Timer Functions 3.4.1. On-Off To turn the appliance on or off, press and hold the Power On/Off control (5) until you hear a ‘beep’. When the appliance powers up, the heat zone indicators will display.
- Page 10 3.4.6. Child Lock To activate the Child Lock, press and hold the Child Lock control (4) until ‘Lo’ is displayed. The lock will now be set and the appliance will not operate. To unlock the Child Lock, simply press and hold the Child Lock control again until the display is removed. 3.4.7.
- Page 11 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the Hob Surface Clean spillages from the hob surface as soon as possible after use. Always ensure that the surface has cooled down before cleaning.
- Page 12 This is the cooling fan – it will remain on until the appliance has completely cooled down. The display indicates E5: This indicates high temperature. Allow the hob to cool down then start again The hob makes a ‘clicking’ noise during use: This is quite normal –...
-
Page 13: Important Note
Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
