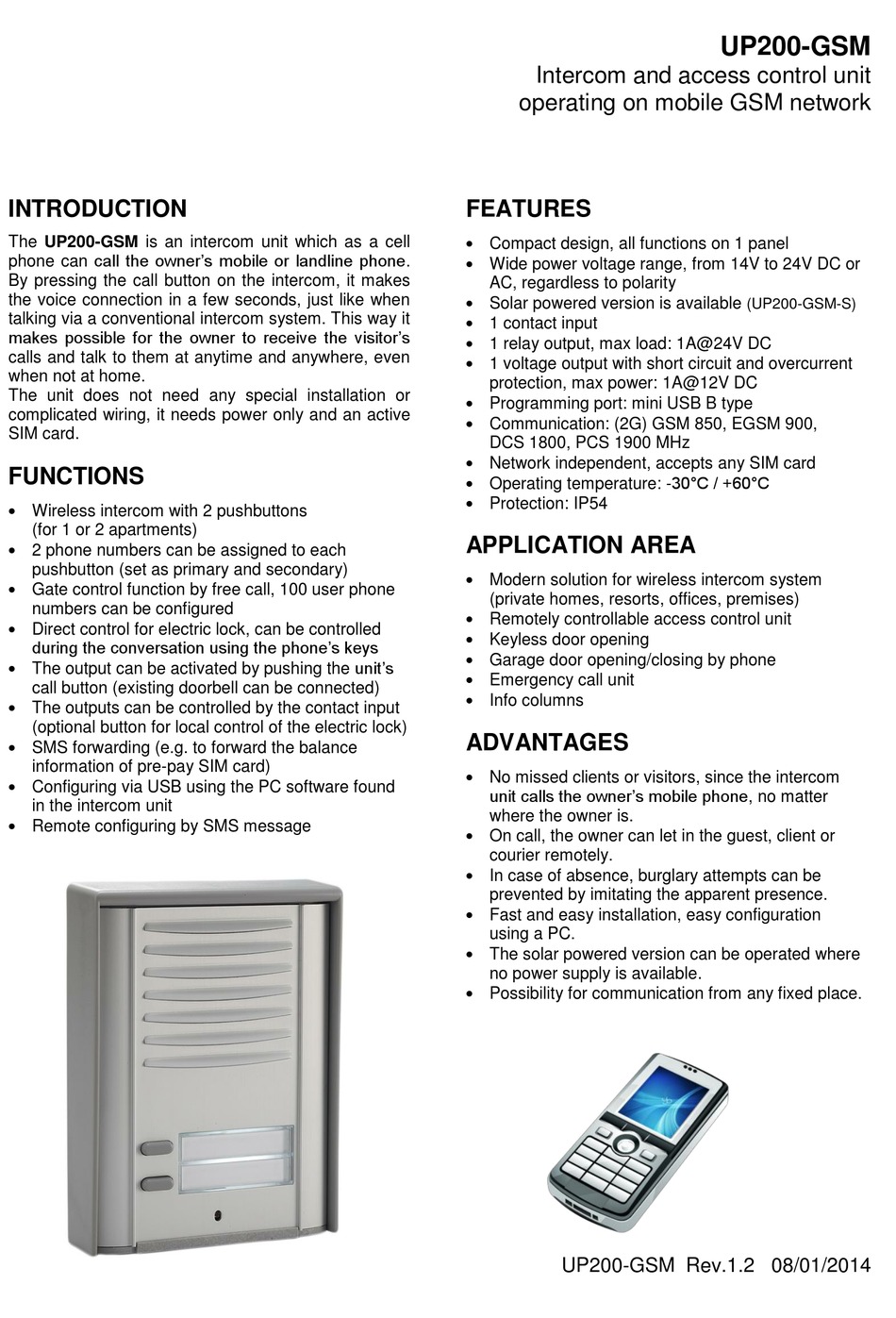

dupol up200-gsm User Manual

INTRODUCTION
The UP200-GSM is an intercom unit which as a cell
phone can call the owner's mobile or landline phone.
By pressing the call button on the intercom, it makes
the voice connection in a few seconds, just like when
talking via a conventional intercom system. This way it
makes possible for the owner to receive the visitor's
calls and talk to them at anytime and anywhere, even
when not at home.
The unit does not need any special installation or
complicated wiring, it needs power only and an active
SIM card.
FUNCTIONS
 Wireless intercom with 2 pushbuttons
(for 1 or 2 apartments)
 2 phone numbers can be assigned to each
pushbutton (set as primary and secondary)
 Gate control function by free call, 100 user phone
numbers can be configured
 Direct control for electric lock, can be controlled
during the conversation using the phone's keys
 The output can be activated by pushing the unit's
call button (existing doorbell can be connected)
 The outputs can be controlled by the contact input
(optional button for local control of the electric lock)
 SMS forwarding (e.g. to forward the balance
information of pre-pay SIM card)
 Configuring via USB using the PC software found
in the intercom unit
 Remote configuring by SMS message
Intercom and access control unit
operating on mobile GSM network
FEATURES
 Compact design, all functions on 1 panel
 Wide power voltage range, from 14V to 24V DC or
AC, regardless to polarity
 Solar powered version is available
 1 contact input
 1 relay output, max load: 1A@24V DC
 1 voltage output with short circuit and overcurrent
protection, max power: 1A@12V DC
 Programming port: mini USB B type
 Communication: (2G) GSM 850, EGSM 900,
DCS 1800, PCS 1900 MHz
 Network independent, accepts any SIM card
 Operating temperature: -30°C / +60°C
 Protection: IP54
APPLICATION AREA
 Modern solution for wireless intercom system
(private homes, resorts, offices, premises)
 Remotely controllable access control unit
 Keyless door opening
 Garage door opening/closing by phone
 Emergency call unit
 Info columns
ADVANTAGES
 No missed clients or visitors, since the intercom
unit calls the owner's mobile phone, no matter
where the owner is.
 On call, the owner can let in the guest, client or
courier remotely.
 In case of absence, burglary attempts can be
prevented by imitating the apparent presence.
 Fast and easy installation, easy configuration
using a PC.
 The solar powered version can be operated where
no power supply is available.
 Possibility for communication from any fixed place.
UP200-GSM Rev.1.2 08/01/2014
UP200-GSM
(UP200-GSM-S)
