OzoGen 10KV User Manual

High output ozone generator
Hide thumbs

Advertisement

Table of Contents

User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10KV and is the answer not in the manual?

Questions and answers

Summary of Contents for OzoGen 10KV

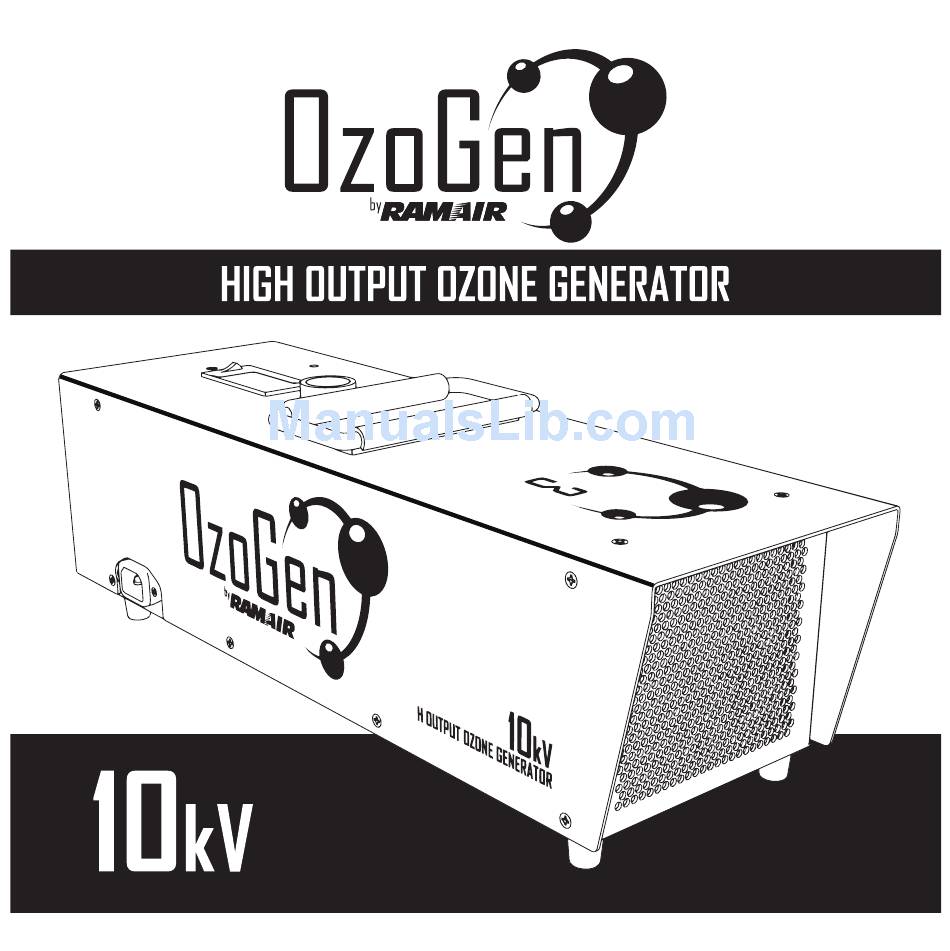

  • Page 1 User’s Manual...

  • Page 3: General Information

    Never plug the OzoGen into a nongrounded outlet. Never place the OzoGen in standing water. Do not block the OzoGen intake fan. Make sure it is at least 6 inches away from walls or other obstructions. Make sure the area to be treated is uninhabited and do not enter the area during treatment.
  • Page 4 THE OZOGEN OZONE GENERATOR Before using the OzoGen, you should familiarize yourself with the controls and components. Top panel: folding handle illuminated on/off button timer panel Back panel: with intake fan Front opening: with ozone generator outlet Side panel: with power cord attachment...

  • Page 5: Prepare The Area

    Remove any plants or animals from the treatment area. Set the OzoGen so that it cannot come into contact with standing water or any kind of moisture. Elevating the OzoGen off the floor is recommended. Make sure that the intake fan is at least 6 inches away from walls or other obstructions.
  • Page 6 USAGE 2. Set the treatment time. Once the OzoGen is plugged in, flip the rocker switch on the timer panel to "on". The panel will illuminate, displaying treatment time and up and down toggle arrows. Use the arrows to set the treatment time. Holding the arrow down for 2 seconds will cycle the time up or down faster.
  • Page 7 RECOMMENDED TREATMENT TIMES Light Odor: 00:15 - 00:30 Under 1,500 cuft 00:30 - 01:00 1,500 - 3,000 cuft 01:00 - 02:00 3,000 - 5,000 cuft 02:00 - 05:00 5,000 - 10,000 cuft 05:00 - 10:00 10,000 - 20,000 cuft 10:00 - 24:00 20,000 - 80,000 cuft Strong Odor: 00:45 - 02:00...

  • Page 8: Specifications

    SPECIFICATIONS Weight - 4.67kg (10.3 lbs) Construction - 18 ga powder-coated steel chassis & ozone resistant components Controls - 24 hr. On/off plus timer, illuminated on/off button Dimensions - 45.7cm x 12.72cm x 15.26cm (18" x 5" x 6") Electrical - 120 VAC 50/60Hz 0.9A Flow Rate - 3.4 cmm (120 cfm) Generation Method - Corona discharge Maintenance - Maintenance free...

  • Page 9: Warranty And Registration

    To validate your warranty please register your OzoGen high output ozone generator online by going to: www.ozogen.com/registration OzoGen is warranted against any defects in materials and workmanship for a period of one year from date of purchase. This warranty applies only to the original purchaser; other limitations may apply. Check...
